ACC-CGLD-AV-E2-M20-4

Item number: 103032141

ACC-CGLD-AV-E2-M20-4

Item number: 103032141

Downloads

ePLAN Data

CADENAS CAD Data

SISTEMA Data

Data
Pictures

Ordering data

Product type description	ACC-CGLD-AV-E2-M20-4
Article number (order number)	103032141
EAN (European Article Number)	4030661527604
eCl@ss number, version 12.0	27-14-08-02
eCl@ss number, version 11.0	27-14-44-34
eCl@ss number, version 9.0	27-14-44-34
ETIM number, version 7.0	EC000441
ETIM number, version 6.0	EC000441

General data

Material	Kunststoff, glasfaserverstärkter Thermoplast
Gross weight	10 g

Mechanical data - Dimensions

Diameter	22.5 mm
Thread length of the screw	11 mm
Diameter, metric ISO thread with pitch indication	M20 x 1.5

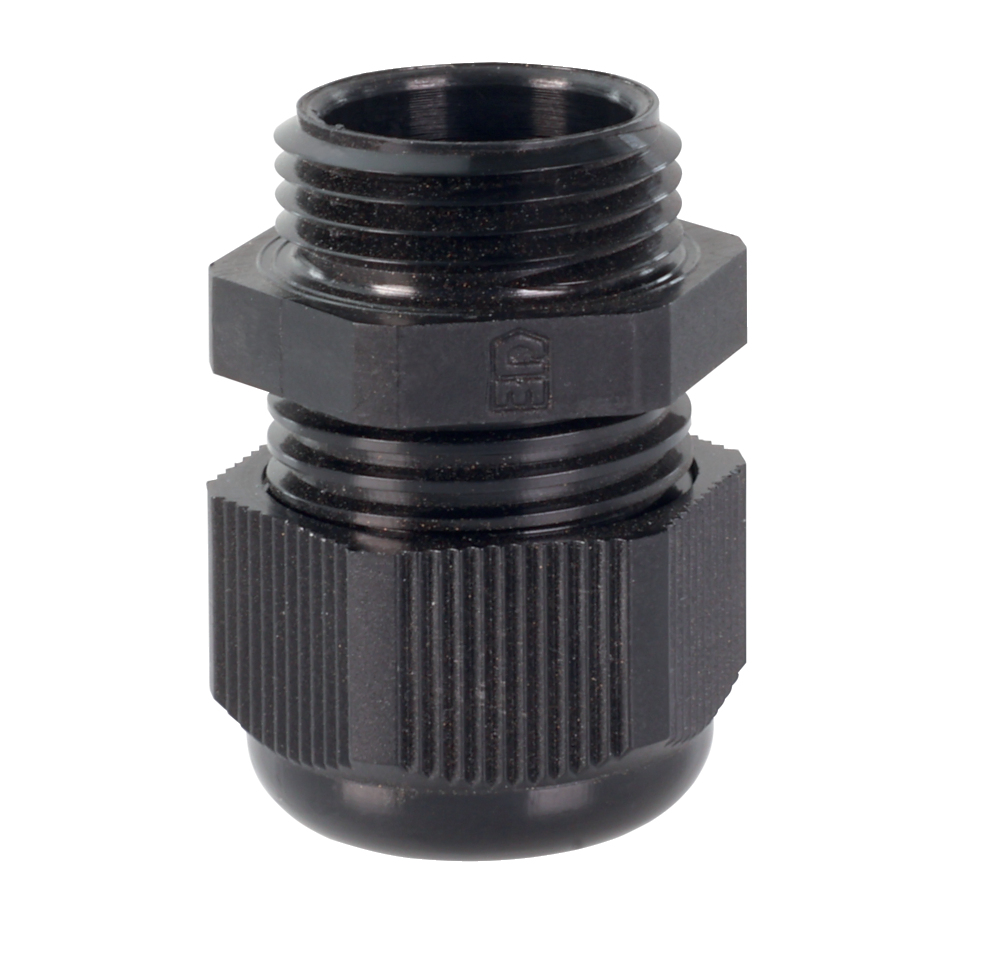

Product picture (catalogue individual photo)

ID: kavacf08

| 292.7 kB | .jpg | 352.778 x 341.84200000000004 mm - 1000 x 969 px - 72 dpi

| 48.3 kB | .png | 74.083 x 71.614 mm - 210 x 203 px - 72 dpi

| 49.6 kB | .jpg | 123.47200000000001 x 119.592 mm - 350 x 339 px - 72 dpi

| 46.4 kB | .png | 74.083 x 74.083 mm - 210 x 210 px - 72 dpi

| 3.6 MB | .png | 169.333 x 163.999 mm - 2000 x 1937 px - 300 dpi

K.A. Schmersal GmbH & Co. KG, Möddinghofe 30, 42279 Wuppertal

The details and data referred to have been carefully checked. Images may diverge from original. Further technical data can be found in the manual. Technical amendments and errors possible.
