TQ215-02
| Product type description: TQ(1)(2)-(3)(4)-(5)-(6) |
| 215 | Metal enclosure |
| 215L | like 215 with elongated hole |
| 315 | Metal enclosure |
| without | Pulling direction of the towing eye upwards |
| AL | Pulling direction of the towing eye to the left |
| AR | Pulling direction of the towing eye to the right |
| 11 | 1 NO contact/1 NC contact |
| 02 | 2 NC contact |
| 12 | 1 NO contact/2 NC contacts |
| without | Contacts silver plated (Standard) |
| A1 | Gold contacts 0,3 μm |
| A2 | Gold contacts 1,0 μm |
| A3 | Gold contacts 3,0 μm |
| without | without LED |
| G | Status LED |
| without | Cable entry M20 |
| ST | Connector plug M12, 4-pole or 8-pole |
| STM | Connector plug M12, metal, 4-pole or 8-pole |
- Metal enclosure
- Design to EN 50047
- Quick connection technology as connection terminals rotated by 45°
- cable entry 1 x M20 x 1,5
Ordering data
| Product type description |
TQ215-02 |
| Article number (order number) |
103045745 |
| EAN (European Article Number) |
4030661616612 |
| eCl@ss number, version 12.0 |
27-27-06-07 |
| eCl@ss number, version 11.0 |
27-27-06-07 |
| eCl@ss number, version 9.0 |
27-27-06-07 |
| ETIM number, version 7.0 |
EC000030 |
| ETIM number, version 6.0 |
EC000030 |
Approvals - Standards
| Certificates |
cULus CCC |
General data
| Standards |
EN IEC 60947-5-1 |
| Housing construction form |
Norm construction design |
| Actuator type to EN 50047 |
B |
| Housing material |
Metal, zinc die-cast |
| Housing coating material |
painted |
| Length of the wire, maximum |
25 m |
Mechanical data
| Mechanical lifetime, minimum |
10,000,000 Operations |
| Actuation direction |
Upwards |
| Positive break force, minimum |
40 N |
| Tightening torque of the fixing screws |
2 Nm |
| Tightening torque of the fastening screws for the housing cover |
2.6 Nm |
Mechanical data - Connection technique
| Termination |
Screw terminals M20 x 1.5 |
| Cable section, minimum |
0.34 mm² |
| Cable section, maximum |
1.5 mm² |
| Tightening torque of electrical connection, minimum |
0.6 Nm |
| Tightening torque of electrical connection, maximum |
0.8 Nm |
Mechanical data - Dimensions
| Length |
32.4 mm |
| Width |
31 mm |
| Height |
93.4 mm |
| Width of the actuator |
91 mm |
| Height of the actuator |
21.4 mm |
Ambient conditions
| Degree of protection |
IP66 IP67 |
| Ambient temperature |
-30 ... +80 °C |
| Protection class |
I |
Ambient conditions - Insulation values
| Rated insulation voltage Ui |
250 VAC |
| Rated impulse withstand voltage Uimp |
4 kV |
| Degree of pollution |
3 |
Electrical data
| Thermal test current |
10 A |
| Required rated short-circuit current |
400 A |
| Utilisation category AC-15 |
240 VAC |
| Utilisation category AC-15 |
3 A |
| Utilisation category DC-13 |
24 VDC |
| Utilisation category DC-13 |
3 A |
| Switching element |
2 NC contact |
| Material of the contacts, electrical |
Silver |
Language filter
Datasheet
Operating instructions and Declaration of conformity
CCC certification
SISTEMA-VDMA library
Download the latest version of Adobe Reader

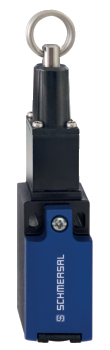

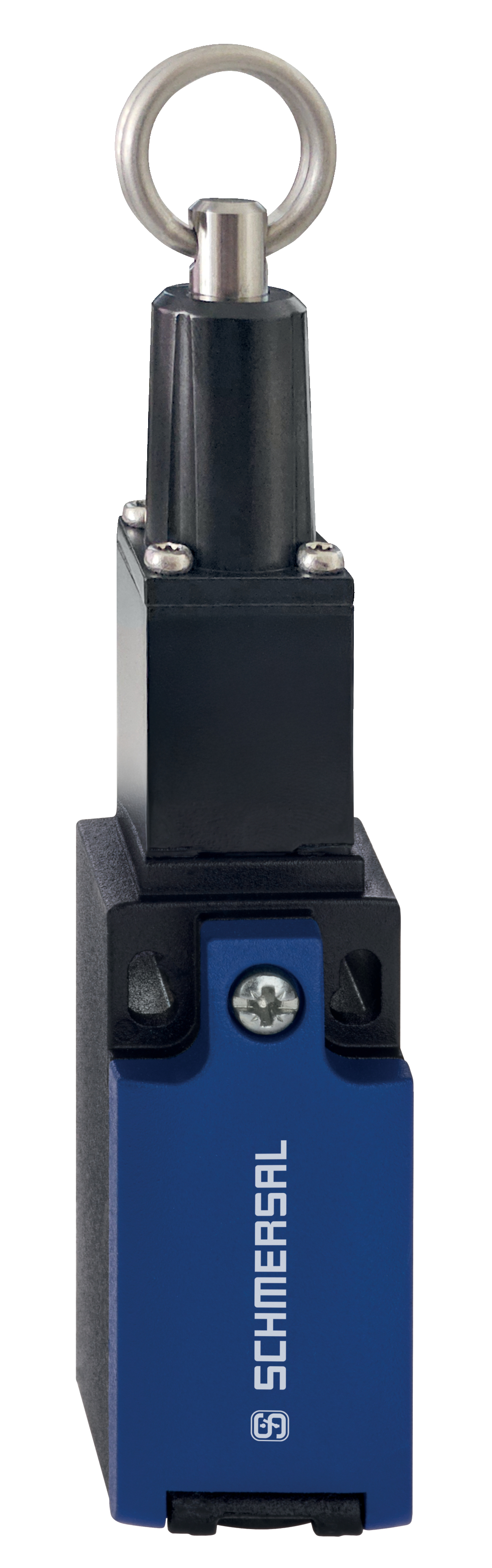

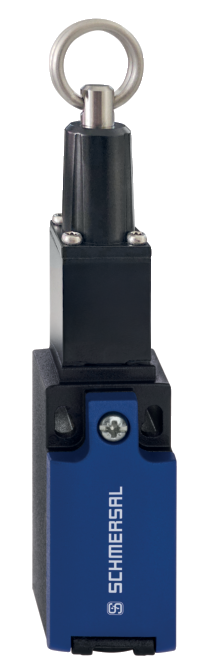

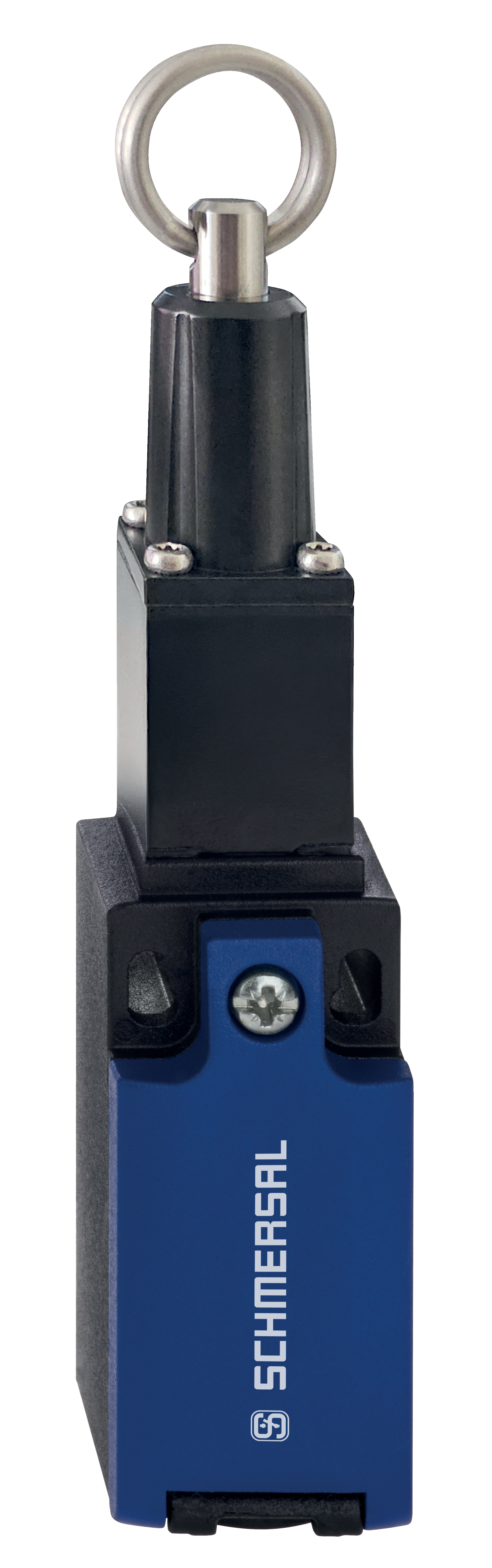

Product picture (catalogue individual photo)
ID: ktq215f03
| 953.7 kB | .jpg | 352.778 x 1123.95 mm - 1000 x 3186 px - 72 dpi
| 18.4 kB | .jpg | 38.806000000000004 x 123.47200000000001 mm - 110 x 350 px - 72 dpi
| 139.1 kB | .png | 74.083 x 236.008 mm - 210 x 669 px - 72 dpi
| 17.0 kB | .png | 74.083 x 74.083 mm - 210 x 210 px - 72 dpi
| 11.2 MB | .png | 169.333 x 539.581 mm - 2000 x 6373 px - 300 dpi
Dimensional drawing basic component
Dimensional drawing basic component
101192433 ACC-PWR-PLY-S
- To guide the wire rope where the path is not a straight line
- for Wire rope Ø 5 mm
101196043 WIRE CLAMP SZ. 3 EGG-SHAPED OFFS.
- for Wire rope Ø 3 mm
101203472 ACC-PWR-WT-3MM-NIRO
- for Wire rope Ø 3 mm
101203476 ACC-PWR-WT-5MM-NIRO
- for Wire rope Ø 5 mm
101087930 ACC-PWR-TB-M6-2
- For exact adjustment of the tension of the wire rope
- to DIN 1480
103005863 ACC-700-RZ173I
- To maintain the reaction force
101186490 ACC-PWR-SKL-A0,16-VA
- Shackle for fixing the wire rope to the eyebolt
103003628 PWR-5M-SET
- With red PVC sheath
- Ready-to-fit
103003629 PWR-10M-SET
- With red PVC sheath
- Ready-to-fit
103003865 PWR-15M-SET
- With red PVC sheath
- Ready-to-fit
103003866 PWR-20M-SET
- With red PVC sheath
- Ready-to-fit
103003630 PWR-30M-SET
- With red PVC sheath
- Ready-to-fit
101186704 S 900
- Smooth adjustment
- Only one tool
- Antiskid
- Time-saving
- Ergonomic
- No risk of injury
101190917 DUPLEX WIRE CLAMP 3 MM (STAINLESS STEEL)
- for Wire rope Ø 3 mm
101203569 ACC-PWR-RC-DUPLEX-4MM-NIRO
- for Wire rope Ø 3 mm
| EU Declaration of Conformity |  |
| Original | K.A. Schmersal GmbH & Co. KG Möddinghofe 30 42279 Wuppertal Germany Internet: www.schmersal.com |
| Declaration: | We hereby certify that the hereafter described components both in their basic design and construction conform to the applicable European Directives. |
| Name of the component: | ZQ215 / ZQ315 1) TQ215 / TQ315 2) |
| Type: | See ordering code |
| Description of the component: | Pull-wire emergency stop switch ZQ215 and ZQ315 1), Pull-wire switch TQ215 and TQ315 2) |
| Relevant Directives: | 1) Machinery Directive | 2006/42/EC |
| 2) Low Voltage Directive | 2014/35/EU | |
| RoHS-Directive | 2011/65/EU |
| Applied standards: | EN 60947-5-1:2017 + AC:2020 1) EN 60947-5-5:1997 + A1:2005 + A11:2013 + A2:2017 1) EN ISO 13850:2015 |
| Person authorised for the compilation of the technical documentation: | Oliver Wacker Möddinghofe 30 42279 Wuppertal |
| Place and date of issue: | Wuppertal, April 26, 2023 |
 |
| Authorised signature Philip Schmersal Managing Director |
| UK Declaration of Conformity | |
| Company: | K.A. Schmersal GmbH & Co. KG Möddinghofe 30 42279 Wuppertal Germany Internet: www.schmersal.com |
| Declaration: | We hereby, under sole responsibility, certify that the hereafter described components both in their basic design and construction conform to the relevant statutory requirements, regulations and designated standards of the United Kingdom. |
| Name of the component: | ZQ215 / ZQ315 1) TQ215 / TQ315 2) |
| Type: | See ordering code |
| Description of the component: | Pull-wire emergency stop switch ZQ215 and ZQ315 1), Pull-wire switch TQ215 and TQ315 2) |
| Relevant legislation: | 1) Supply of Machinery (Safety) Regulations | 2008 |
| 2) Electrical Equipment (Safety) Regulations | 2016 | |
| The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations | 2012 |
| Designated standards: | EN 60947-5-1:2017 + AC:2020 1) EN 60947-5-5:1997 + A1:2005 + A11:2013 + A2:2017 1) EN ISO 13850:2015 |
| UK-Importer / Person authorised for the compilation of the technical documentation: | Schmersal UK Ltd. Paul Kenney Unit 1, Sparrowhawk Close Enigma Business Park Malvern, Worcestershire, WR14 1GL |
| Place and date of issue: | Wuppertal, May 25, 2023 |
|
| Authorised signature Philip Schmersal Managing Director |
Schmersal India Pvt. Ltd., Plot No - G-7/1, Ranjangaon MIDC, Tal. - Shirur, Dist.- Pune 412 220
The details and data referred to have been carefully checked. Images may diverge from original. Further technical data can be found in the manual. Technical amendments and errors possible.
