T2C 461-13Y
T2C 461-13Y
Downloads
- 2 cable entries M 20 x 1.5
- Metal enclosure
- 118 mm x 155 mm x 64 mm ( basic component)
- With latching end position
- Actuator heads can be repositioned by 4 x 90°
- Change in actuating direction by repositioning actuator head
- Case-hardened lever
Ordering data
| Product type description |
T2C 461-13Y |
| Article number (order number) |
101059730 |
| eCl@ss number, version 12.0 |
27-27-06-01 |
| eCl@ss number, version 11.0 |
27-27-06-01 |
| eCl@ss number, version 9.0 |
27-27-06-01 |
| ETIM number, version 7.0 |
EC000030 |
| ETIM number, version 6.0 |
EC000030 |
General data
| Standards |
EN IEC 60947-5-1 |
| Working principle |
mechanical |
| Housing material |
Grey cast iron, galvanised |
| Housing coating material |
painted |
| Gross weight |
2,200 g |
General data - Features
| Number of normally closed (NC) |
3 |
| Number of normally open (NO) |
1 |
Safety classification
| B10D Normally-closed contact (NC) |
2,000,000 Operations |
Mechanical data
| Actuating element |
Fork lever |
| Mechanical lifetime, minimum |
10,000,000 Operations |
| Contact opening |
max. 2 x 6 mm |
| Actuating speed, minimum |
1 mm/min |
| Actuating speed, maximum |
0.5 m/s |
| Note (Actuating speed) |
Actuating speed with vertical actuating angle to switch axis |
Mechanical data - Connection technique
| Termination |
Screw terminals M20 x 1.5 |
| Cable section, minimum |
1.5 mm² |
| Cable section, maximum |
2.5 mm² |
| Note |
All indications including the conductor ferrules. |
| Wire cross-section |
13 AWG |
Mechanical data - Dimensions
| Length of sensor |
64 mm |
| Width of sensor |
118 mm |
| Height of sensor |
250 mm |
Ambient conditions
| Degree of protection |
IP65 |
| Ambient temperature |
-30 ... +90 °C |
Ambient conditions - Insulation values
| Rated insulation voltage Ui |
400 V |
| Rated impulse withstand voltage Uimp |
6 kV |
Electrical data
| Thermal test current |
16 A |
| Utilisation category AC-15 |
400 VAC |
| Utilisation category AC-15 |
4 A |
| Switching element |
NO contact, NC contact |
| Note (Switching element) |
with double break |
| Switching principle |
Slow action |
| Material of the contacts, electrical |
Silver |
Language filter
Datasheet
Operating instructions and Declaration of conformity
Download the latest version of Adobe Reader

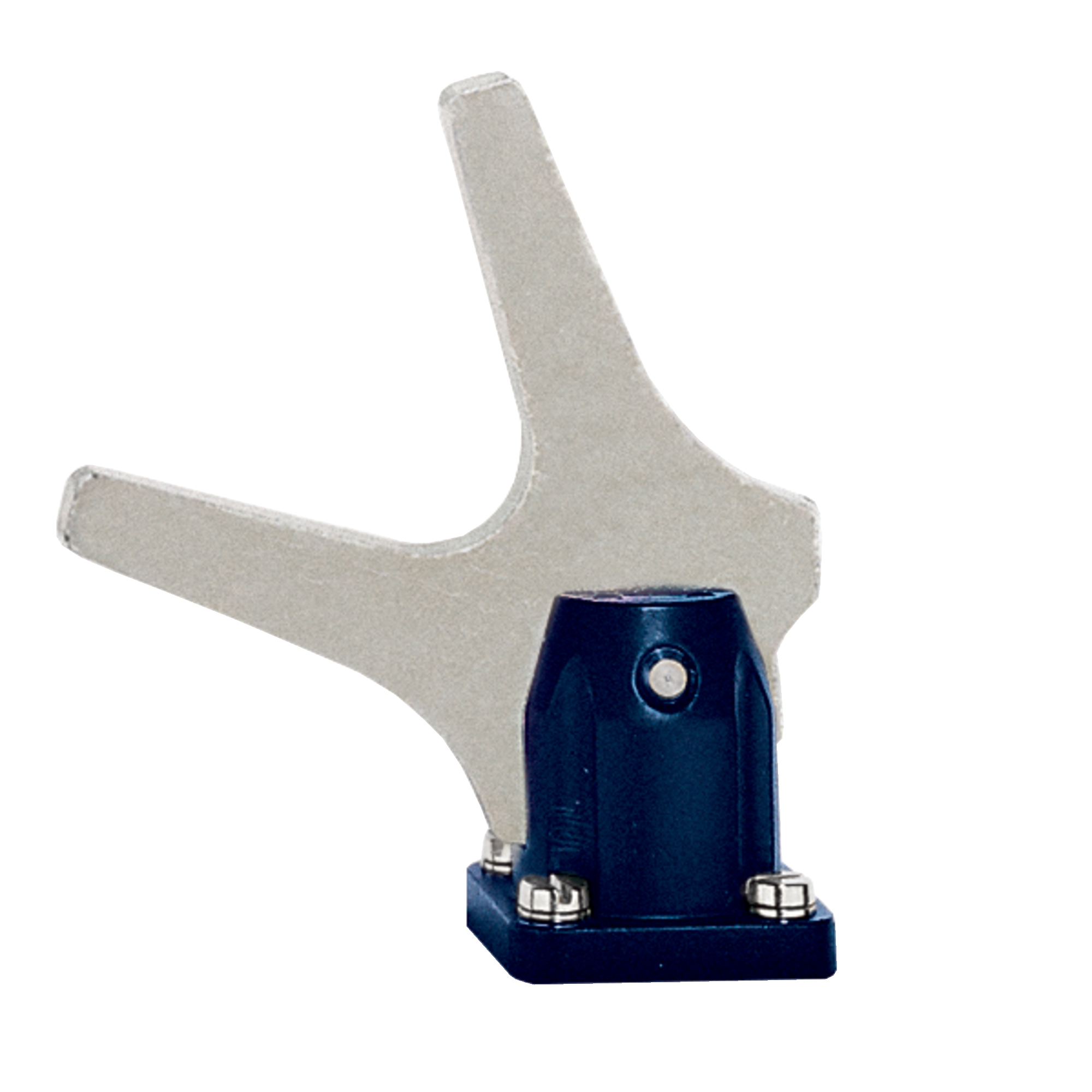

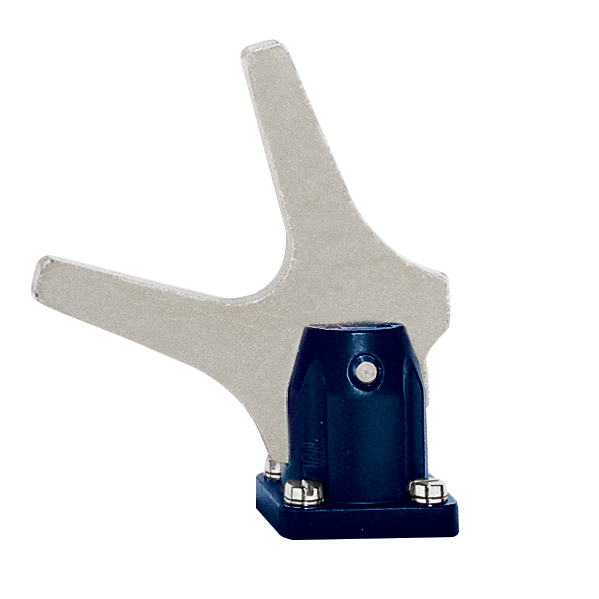

Product picture (catalogue individual photo)
ID: bt441f07
| 21.7 kB | .png | 74.083 x 74.083 mm - 210 x 210 px - 72 dpi
| 132.2 kB | .jpg | 211.31400000000002 x 211.31400000000002 mm - 599 x 599 px - 72 dpi
| 38.6 kB | .jpg | 123.47200000000001 x 123.47200000000001 mm - 350 x 350 px - 72 dpi
| 24.1 kB | .png | 74.083 x 74.083 mm - 210 x 210 px - 72 dpi
| 1.9 MB | .png | 166.55700000000002 x 166.55700000000002 mm - 2000 x 2000 px - 305 dpi

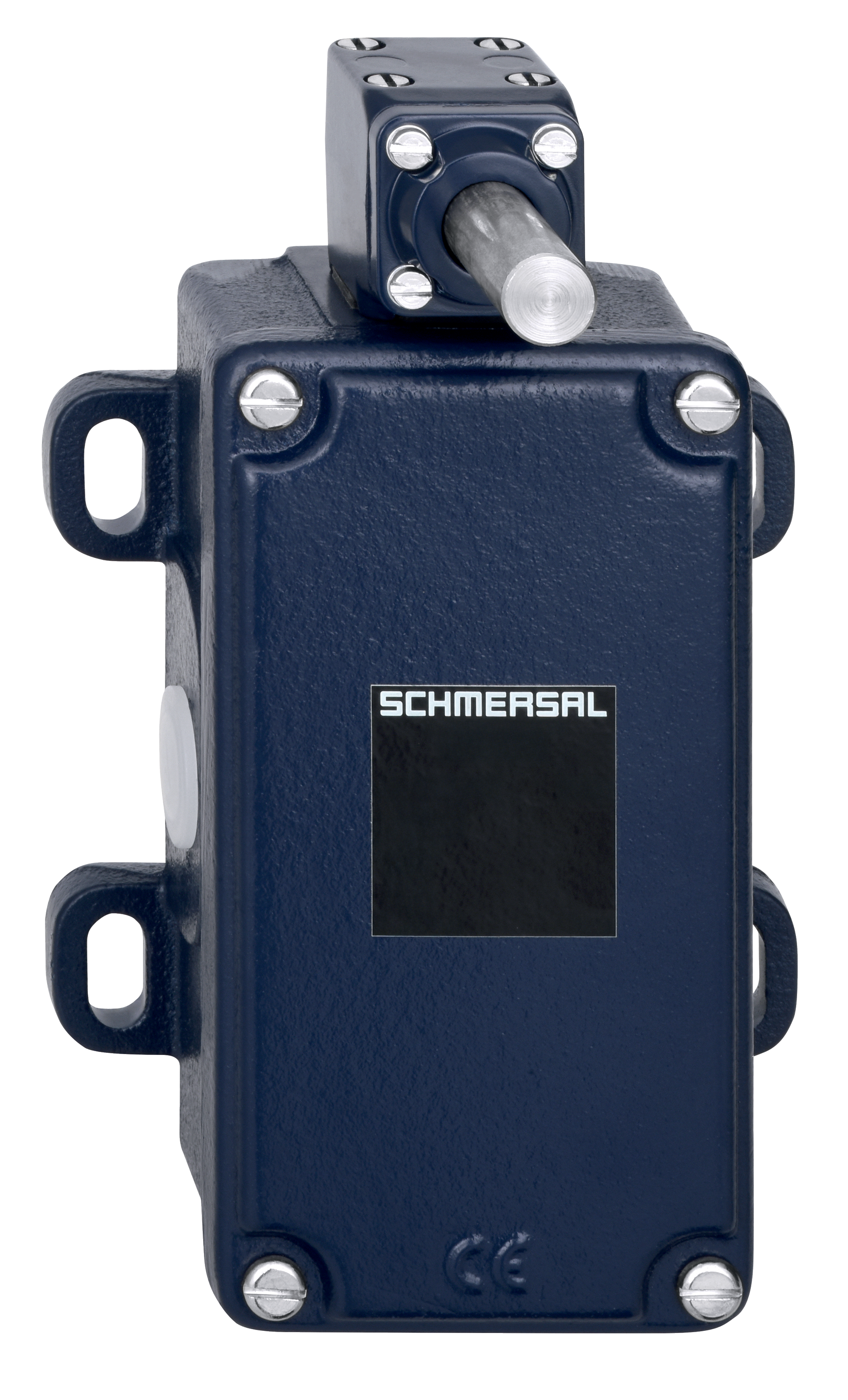

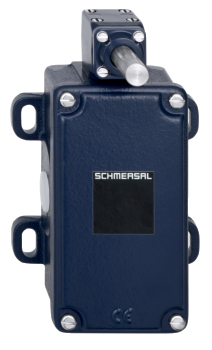

Product picture (catalogue individual photo)
ID: kt461f01
| 889.9 kB | .jpg | 352.778 x 582.436 mm - 1000 x 1651 px - 72 dpi
| 101.4 kB | .png | 73.73100000000001 x 122.061 mm - 209 x 346 px - 72 dpi
| 38.5 kB | .png | 74.083 x 74.083 mm - 210 x 210 px - 72 dpi
| 9.9 MB | .png | 169.333 x 279.654 mm - 2000 x 3303 px - 300 dpi
| 40.8 kB | .jpg | 74.789 x 123.47200000000001 mm - 212 x 350 px - 72 dpi
Dimensional drawing basic component
Dimensional drawing actuator

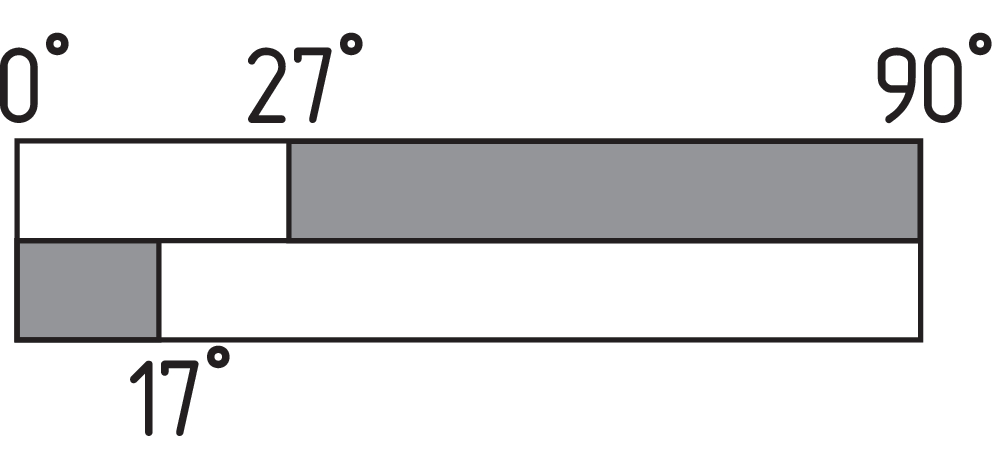

Switch travel diagram
Contact closed
Contact open
Setting range
Latching point
Positive opening path/angle
