SLB 200-E31-21
| Product type description: SLB 200-(1)31-21 |
| (1) | |
| E/R | Transmitter / receiver |
- NOTICE: Not available! (Replacement: SLB240)
- Range 4 m
Ordering data
| Note (Delivery capacity) |
Not available! |
| Product type description |
SLB 200-E31-21 |
| Article number (order number) |
101138921 |
| EAN (European Article Number) |
4030661281711 |
| eCl@ss number, version 12.0 |
27-27-27-01 |
| eCl@ss number, version 11.0 |
27-27-27-01 |
| eCl@ss number, version 9.0 |
27-27-27-01 |
| ETIM number, version 7.0 |
EC001831 |
| ETIM number, version 6.0 |
EC001831 |
General data
| Standards |
EN IEC 61496-1 |
| Housing material |
Plastic |
| Reaction time, maximum |
30 ms |
| Note (Lateral force at bolt return) |
Only in combination with safety monitoring module |
| Gross weight |
70 g |
General data - Features
| Transmitter |
Yes |
| Integral system diagnostics, status |
Yes |
Safety classification
| Safety type in accordance with IEC 61496-1 |
2 |
Mechanical data
| Range, protection field, minimum |
0 m |
| Range, protection field, maximum |
4 m |
| Wave length of the laserdiode |
880 nm |
Mechanical data - Connection technique
| Termination |
Cable with connector M8 |
| Terminal, Connector, Transmitter |
Connector M8, 3-pole, with 10 cm cable |
Mechanical data - Dimensions
| Length of sensor |
18.8 mm |
| Width of sensor |
30.8 mm |
| Height of sensor |
50.3 mm |
Ambient conditions
| Degree of protection |
IP67 |
| Ambient temperature |
-10 ... +55 °C |
| Storage and transport temperature |
-20 ... +80 °C |
| Protection class |
0 |
Electrical data
| Length of cable, maximum |
50 m |
Electrical data - Digital Output
| Design of control elements |
Only in combination with safety monitoring module SLB 200-C |
Status indication
| Indicated operating states |
soiling switching condition |
Accessory
| Recommended safety switchgear |
SLB 200-C04-1R |
Note
| Note (Restart interlock) |
Only in combination with safety monitoring module |
Language filter
Datasheet
Operating instructions and Declaration of conformity
SISTEMA-VDMA library
Download the latest version of Adobe Reader

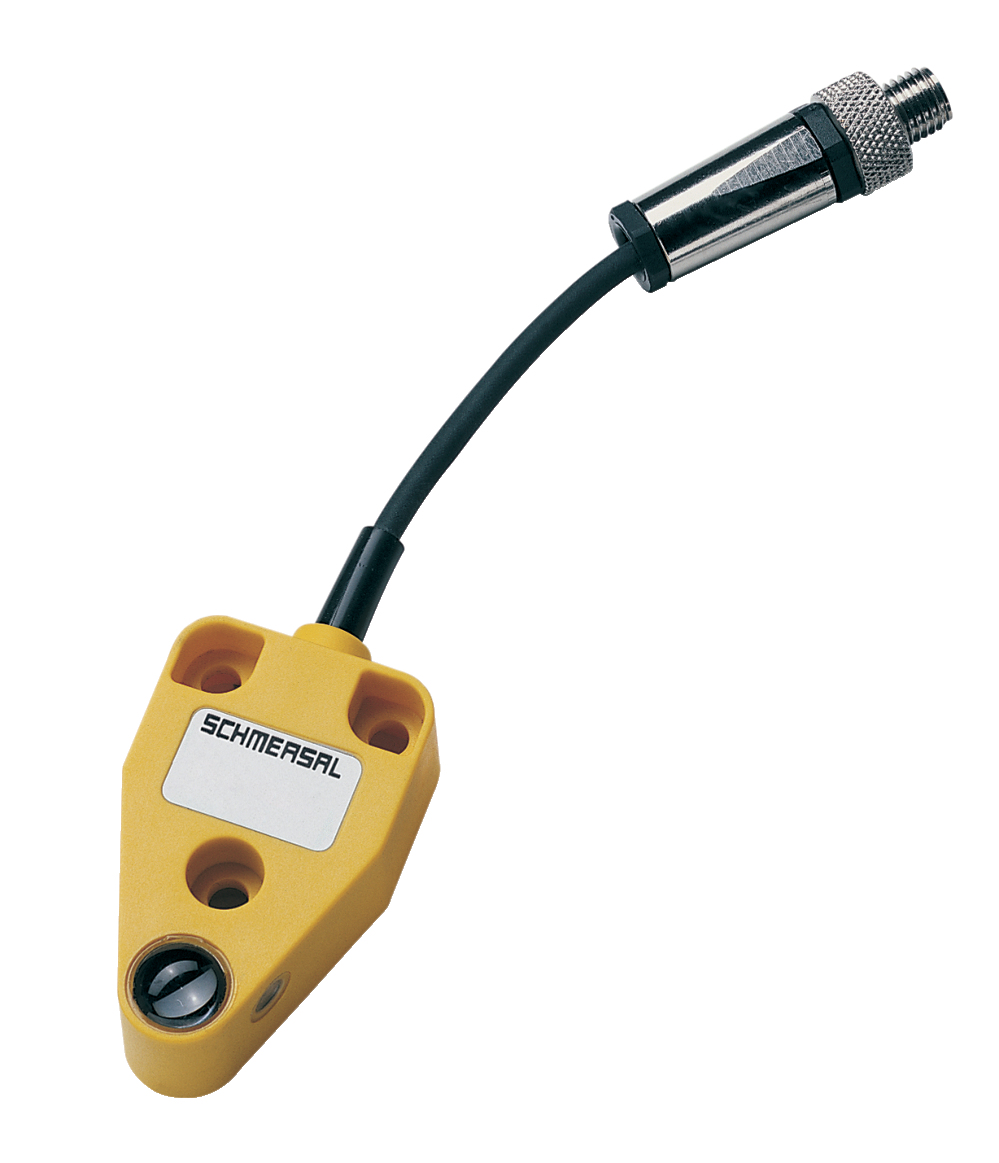

Product picture (catalogue individual photo)
