SD-2V-S-SK SD JUNCTION BOX 2-WAY
SD-2V-S-SK SD JUNCTION BOX 2-WAY
Downloads
- for cabinet-mounting
- junction box for 2 components, with screw terminals
- is fitted onto a proper standard DIN rail to facilitate wiring in the control cabinet
Ordering data
| Product type description |
SD-2V-S-SK SD JUNCTION BOX 2-WAY |
| Article number (order number) |
101188436 |
| EAN (European Article Number) |
4030661352565 |
| eCl@ss number, version 12.0 |
27-23-02-06 |
| eCl@ss number, version 11.0 |
27-23-02-06 |
| eCl@ss number, version 9.0 |
27-23-02-08 |
| ETIM number, version 7.0 |
EC001099 |
| ETIM number, version 6.0 |
EC001099 |
General data
| Housing material |
Plastic, thermoplastic, self-extinguishing |
| Gross weight |
200 g |
Mechanical data - Connection technique
| Cable section, minimum |
0.25 mm² |
| Cable section, maximum |
2.5 mm² |
| Note |
All indications including the conductor ferrules. |
| Terminal (mechanical) |
Screw connection |
Mechanical data - Dimensions
| Width |
92 mm |
| Height |
89.6 mm |
| Depth |
68.5 mm |
Ambient conditions
| IP Degree of protection |
IP00 |
| Ambient temperature |
-25 ... +70 °C |
| Storage and transport temperature |
-25 ... +85 °C |
| Relative humidity, minimum |
30 % |
| Relative humidity, maximum |
95 % |
| Note (Relative humidity) |
non-condensing |
| Protection class |
II |
Ambient conditions - Insulation values
| Rated insulation voltage Ui |
32 VDC |
| Rated impulse withstand voltage Uimp |
0.8 kV |
| Overvoltage category |
III |
| Degree of pollution |
2 |
Electrical data
| Operating voltage |
24 VDC -15 % / +10 % (stabilised PELV power supply) |
| Rated operating voltage |
24 VDC |
| Operating current |
16,000 mA |
| Electrical fuse rating, maximum |
16 A |
Note
| Note (General) |
To each SD junction box, 2 (optionally 3) components can be connected. |
Language filter
Datasheet
Mounting and wiring instructions
Download the latest version of Adobe Reader

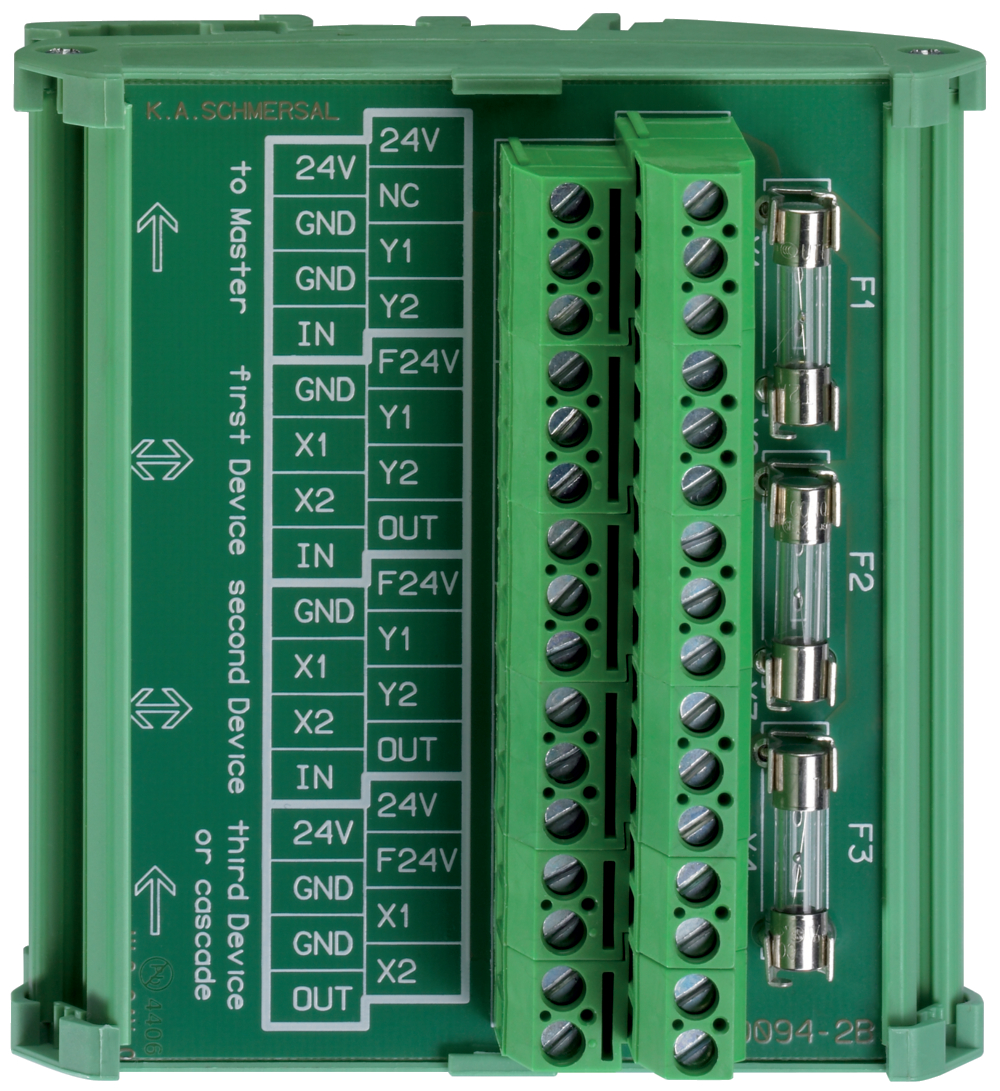

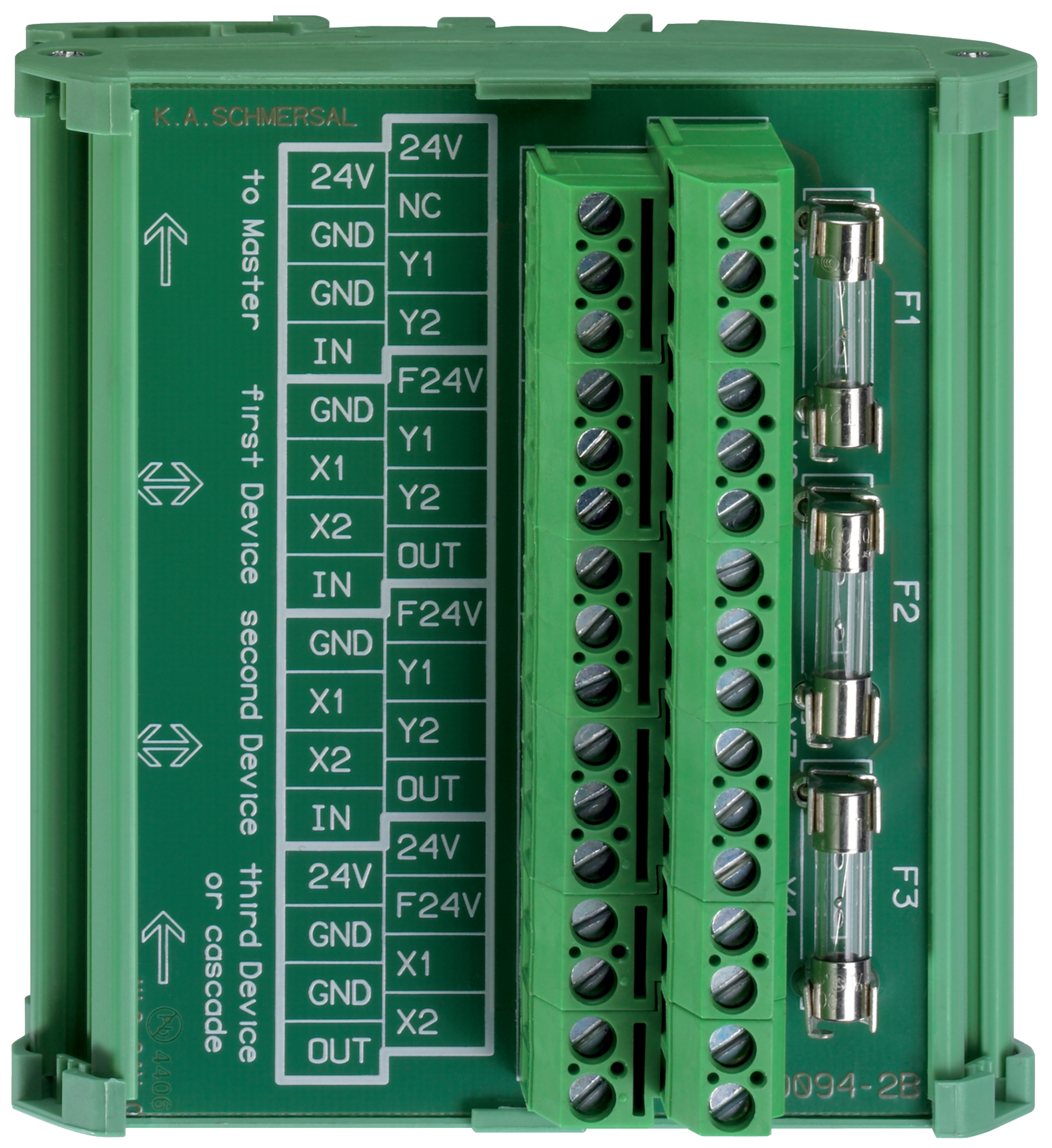

Product picture (catalogue individual photo)
ID: ksd-vf01
| 1.0 MB | .jpg | 352.778 x 384.88100000000003 mm - 1000 x 1091 px - 72 dpi
| 80.0 kB | .png | 74.083 x 80.786 mm - 210 x 229 px - 72 dpi
| 129.4 kB | .jpg | 113.242 x 123.47200000000001 mm - 321 x 350 px - 72 dpi
| 101.5 kB | .png | 74.083 x 74.083 mm - 210 x 210 px - 72 dpi
| 9.9 MB | .png | 169.333 x 184.743 mm - 2000 x 2182 px - 300 dpi

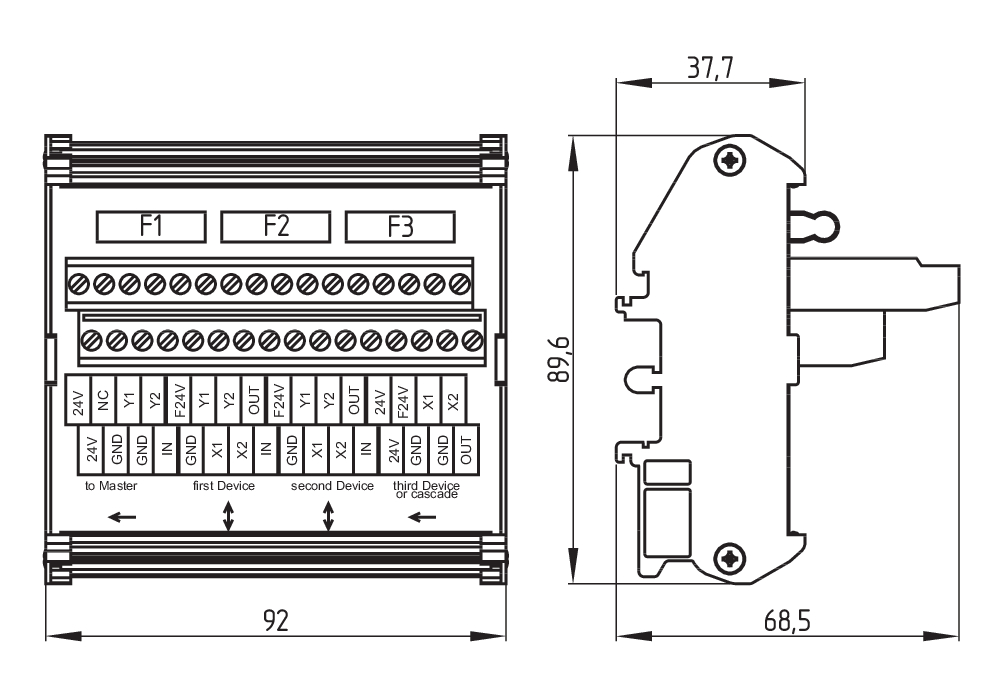

Dimensional drawing basic component
