RF-AZM201-T
- Emergency exit retrofit kit
- Subsequent functional expansion of the solenoid interlock AZM201
Ordering data
| Product type description |
RF-AZM201-T |
| Article number (order number) |
103004966 |
| EAN (European Article Number) |
4030661433509 |
| eCl@ss number, version 12.0 |
27-27-26-92 |
| eCl@ss number, version 11.0 |
27-27-26-92 |
| eCl@ss number, version 9.0 |
27-27-26-92 |
| ETIM number, version 7.0 |
EC002594 |
| ETIM number, version 6.0 |
EC002594 |
General data
| Housing coating material |
powder-coated |
| Material |
Metal film |
| Colour of the product |
Black |
| Gross weight |
33 g |
Mechanical data - Dimensions
| Depth |
5 mm |
Scope of delivery
| Scope of delivery |
1x Mounting plate |
Language filter
Datasheet
Operating instructions and Declaration of conformity
Download the latest version of Adobe Reader

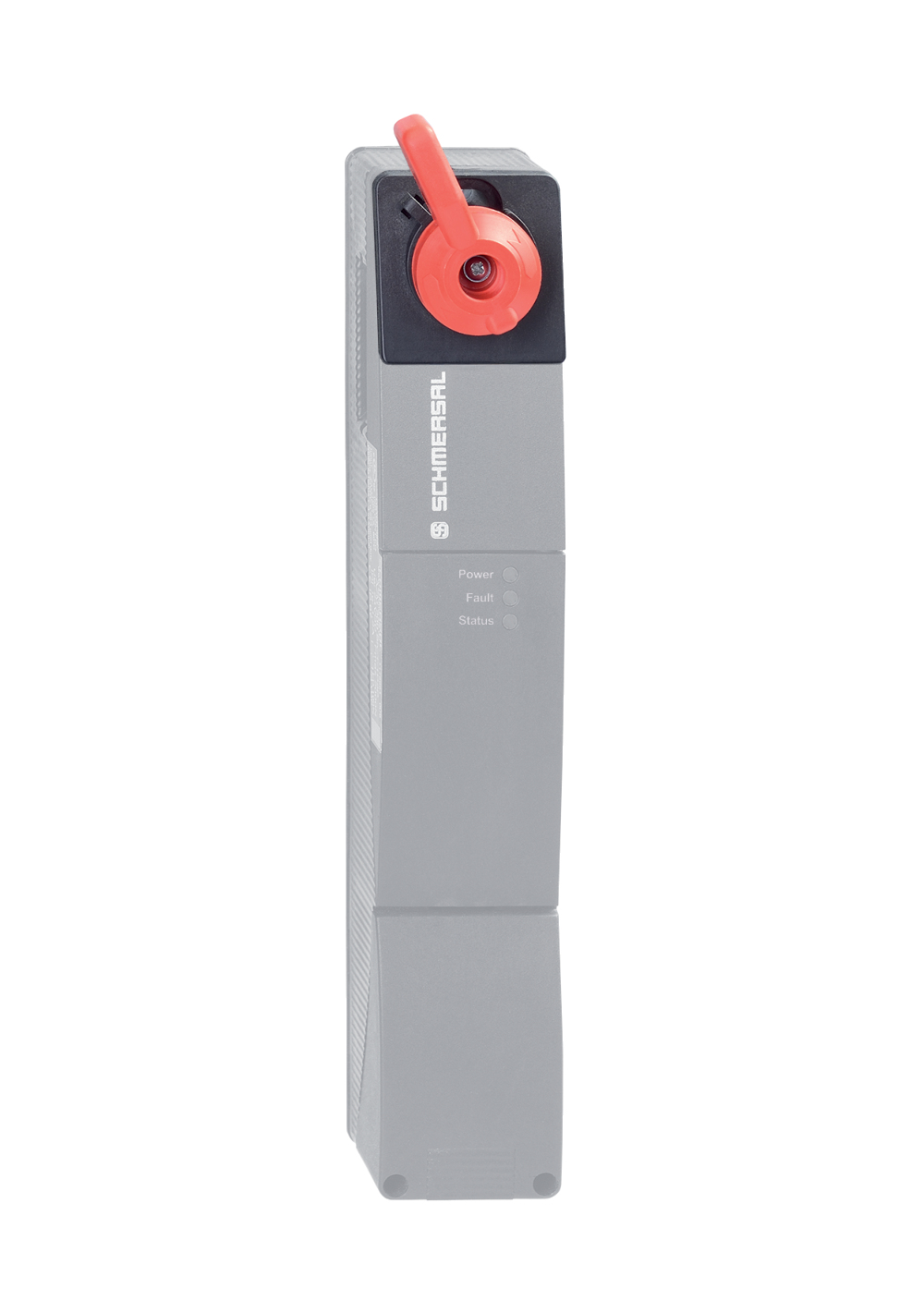

Product picture (catalogue individual photo)
ID: krfazf02
| 196.7 kB | .jpg | 352.778 x 501.297 mm - 1000 x 1421 px - 72 dpi
| 22.9 kB | .png | 74.083 x 105.128 mm - 210 x 298 px - 72 dpi
| 11.4 kB | .png | 74.083 x 74.083 mm - 210 x 210 px - 72 dpi
| 1.6 MB | .png | 169.333 x 240.62300000000002 mm - 2000 x 2842 px - 300 dpi
| 13.9 kB | .jpg | 86.783 x 123.47200000000001 mm - 246 x 350 px - 72 dpi

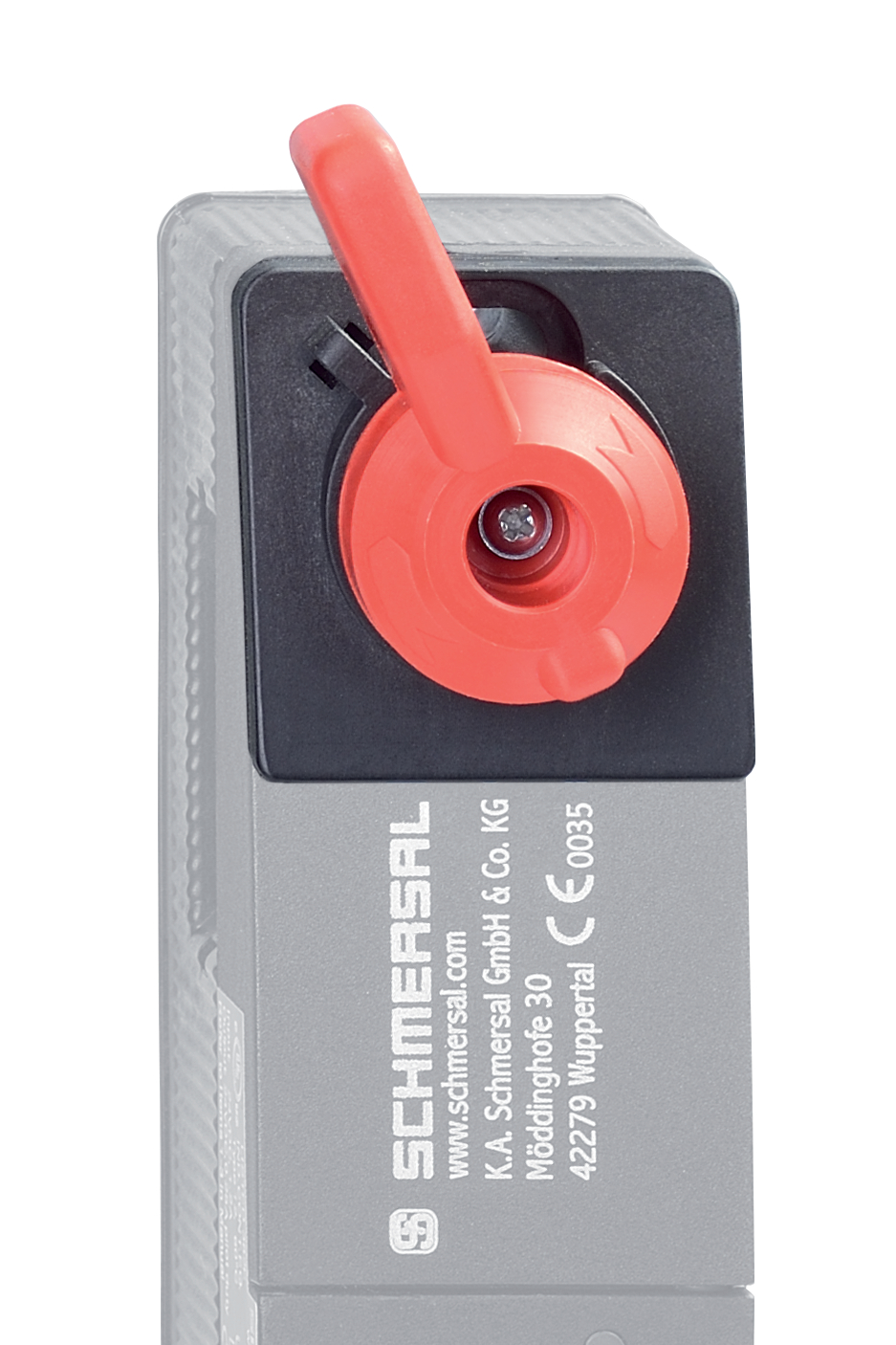

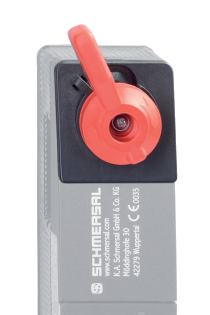

Product picture (catalogue individual photo)
