MP-AZM150-2-R/L
- Mounting plate for easy and quick assembly
- Metall, painted
Push button emergency exit
Ordering data
| Product type description |
MP-AZM150-2-R/L |
| Article number (order number) |
153046399 |
| eCl@ss number, version 12.0 |
27-27-26-92 |
| eCl@ss number, version 11.0 |
27-27-26-92 |
| eCl@ss number, version 9.0 |
27-27-26-92 |
| ETIM number, version 7.0 |
EC002594 |
| ETIM number, version 6.0 |
EC002594 |
General data
| Material |
Steel |
| Colour of the product |
Black |
| Gross weight |
559 g |
Mechanical data - Dimensions
| Width |
40 mm |
| Height |
155 mm |
| Depth |
50 mm |
Scope of delivery
| Scope of delivery of mounting material |
4 x Zylinderkopfschraube M5 x 45 1 x Madenschraube M5 x 8 4x Unterlegscheiben |
Language filter
Datasheet
Operating instructions and Declaration of conformity
Download the latest version of Adobe Reader

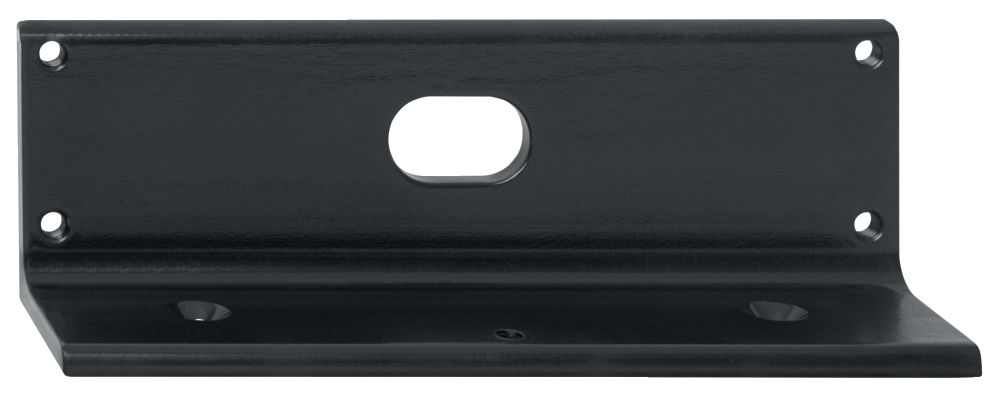

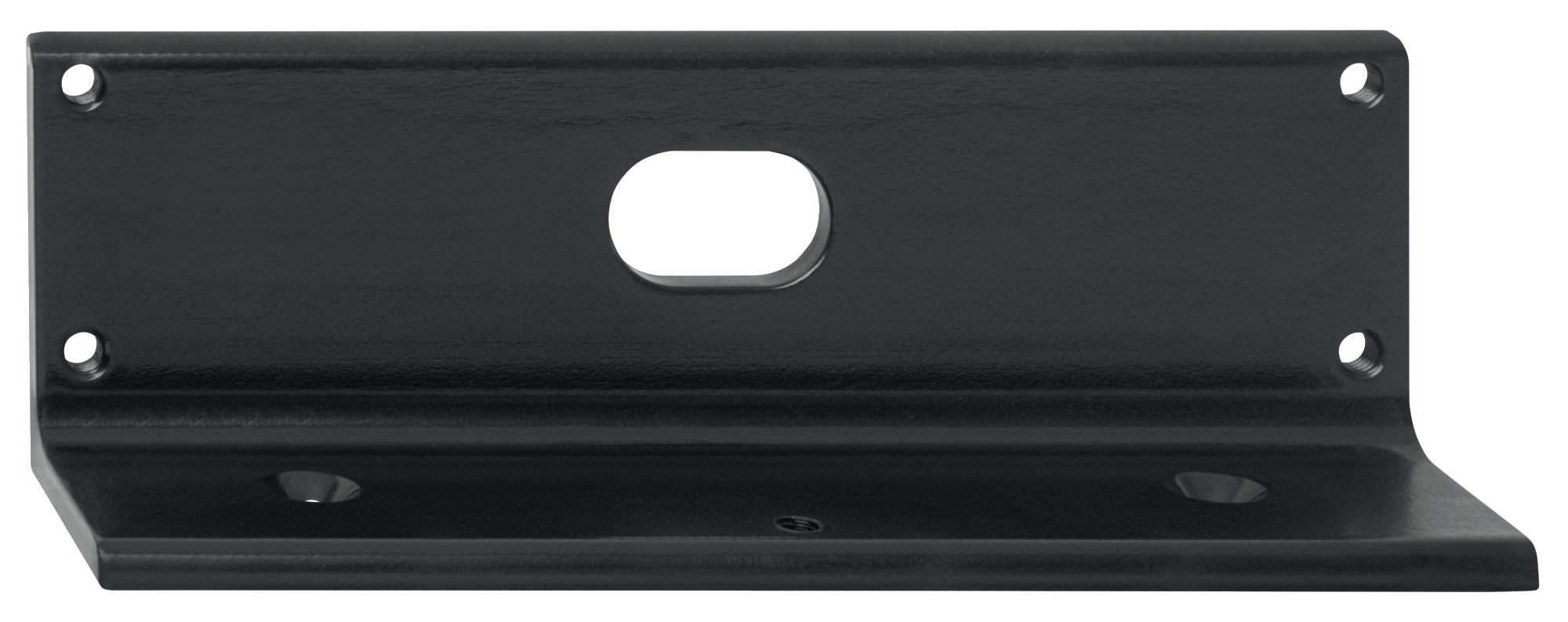

Product picture (catalogue individual photo)
ID: kazm1f105
| 137.3 kB | .jpg | 352.778 x 140.053 mm - 1000 x 397 px - 72 dpi
| 15.2 kB | .png | 74.083 x 29.281000000000002 mm - 210 x 83 px - 72 dpi
| 15.9 kB | .png | 74.083 x 74.083 mm - 210 x 210 px - 72 dpi
| 1.2 MB | .png | 169.333 x 67.141 mm - 2000 x 793 px - 300 dpi
| 19.9 kB | .jpg | 123.47200000000001 x 49.036 mm - 350 x 139 px - 72 dpi

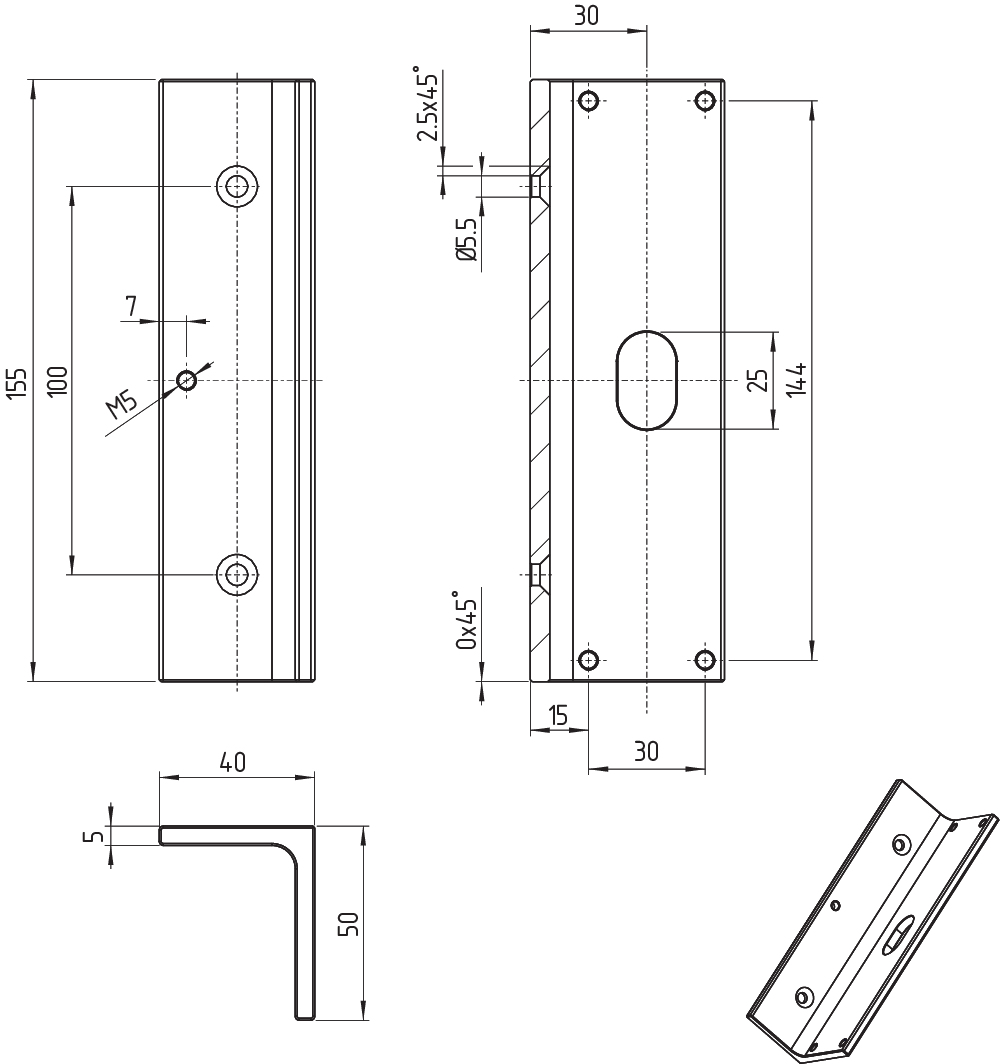

Dimensional drawing actuator

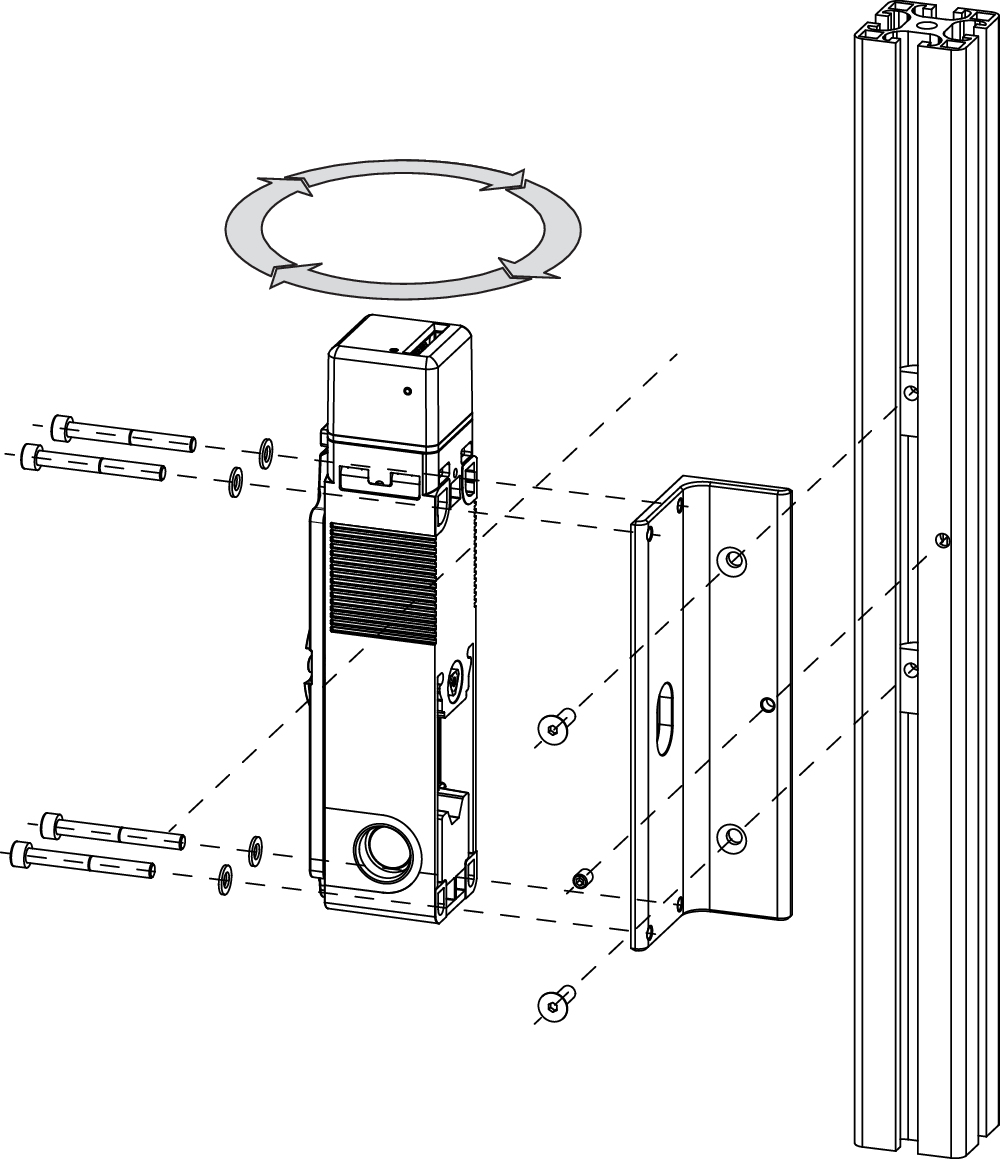

Assembly example

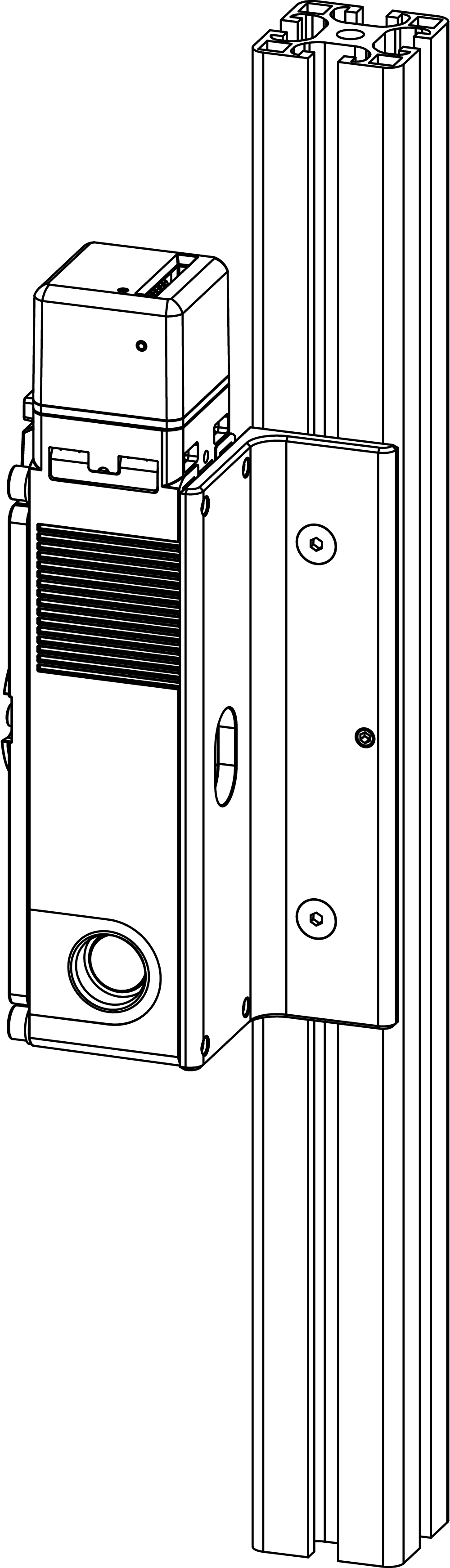

Assembly example
