MP-AZM150-1
- Mounting plate for easy and quick assembly
- Metall, painted
Ordering data
| Product type description |
MP-AZM150-1 |
| Article number (order number) |
153046398 |
| eCl@ss number, version 12.0 |
27-27-26-92 |
| eCl@ss number, version 11.0 |
27-27-26-92 |
| eCl@ss number, version 9.0 |
27-27-26-92 |
| ETIM number, version 7.0 |
EC002594 |
| ETIM number, version 6.0 |
EC002594 |
General data
| Material |
Steel |
| Colour of the product |
Black |
| Gross weight |
273 g |
Mechanical data - Dimensions
| Width |
40 mm |
| Height |
155 mm |
| Depth |
5 mm |
Scope of delivery
| Scope of delivery of mounting material |
4 x Zylinderkopfschraube M5 x 45 1 x Madenschraube M5 x 8 4x Unterlegscheiben |
Language filter
Datasheet
Operating instructions and Declaration of conformity
Download the latest version of Adobe Reader

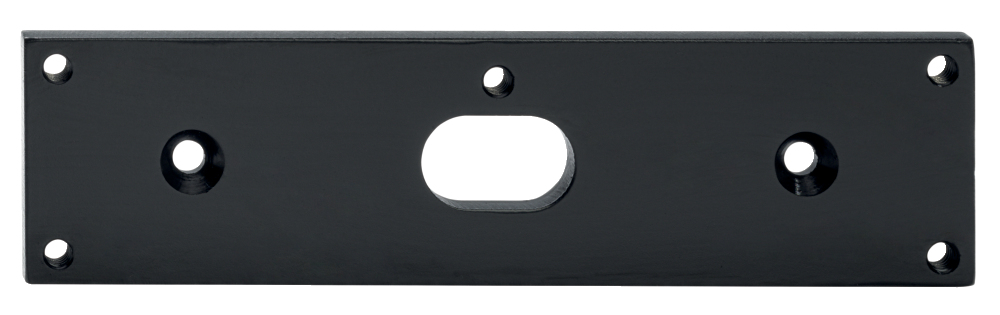

Product picture (catalogue individual photo)
ID: kazm1f92
| 123.3 kB | .jpg | 352.778 x 111.125 mm - 1000 x 315 px - 72 dpi
| 12.0 kB | .png | 74.083 x 23.283 mm - 210 x 66 px - 72 dpi
| 17.0 kB | .jpg | 123.47200000000001 x 38.806000000000004 mm - 350 x 110 px - 72 dpi
| 13.0 kB | .png | 74.083 x 74.083 mm - 210 x 210 px - 72 dpi
| 1.5 MB | .png | 169.333 x 53.34 mm - 2000 x 630 px - 300 dpi

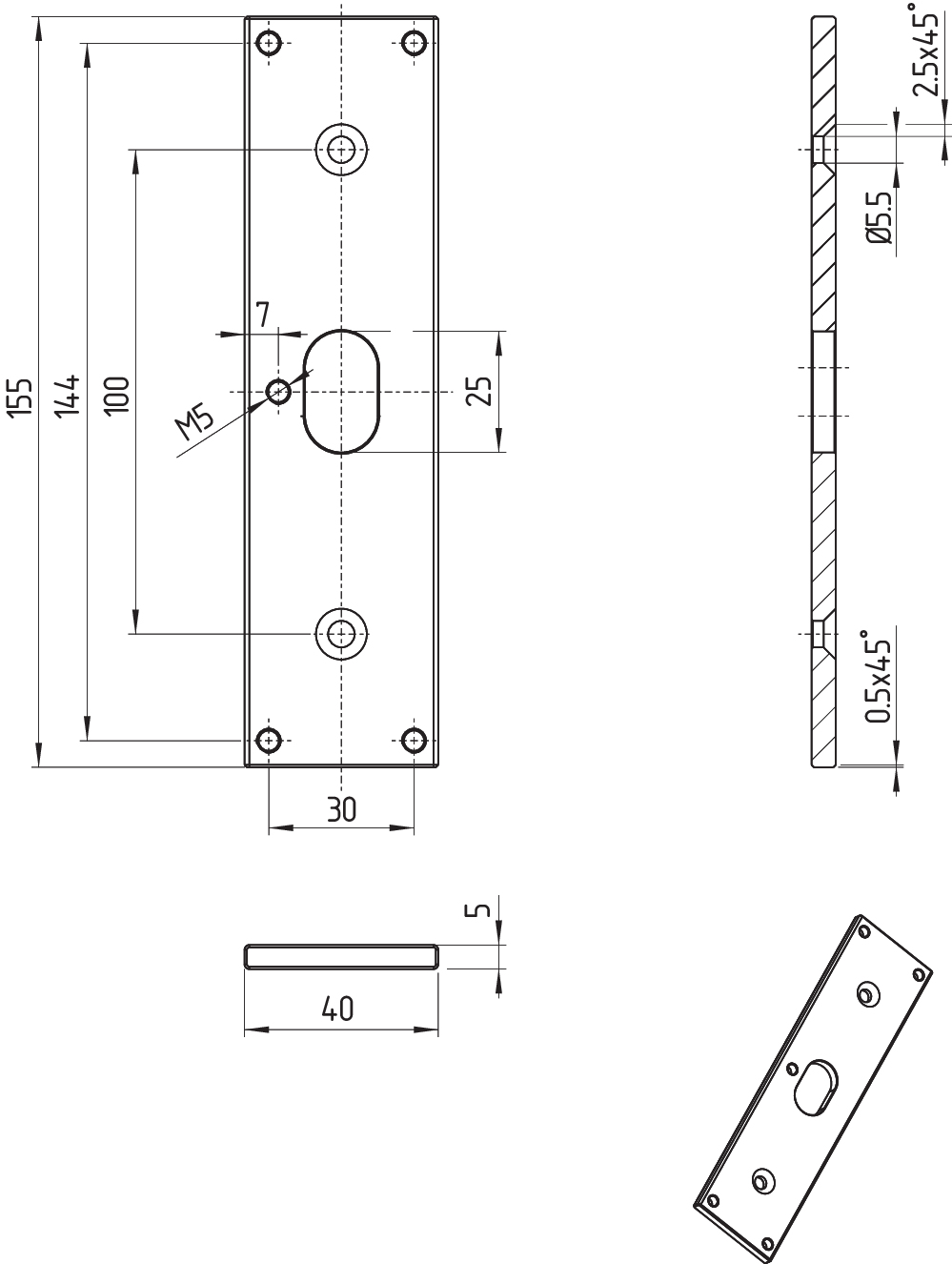

Dimensional drawing actuator

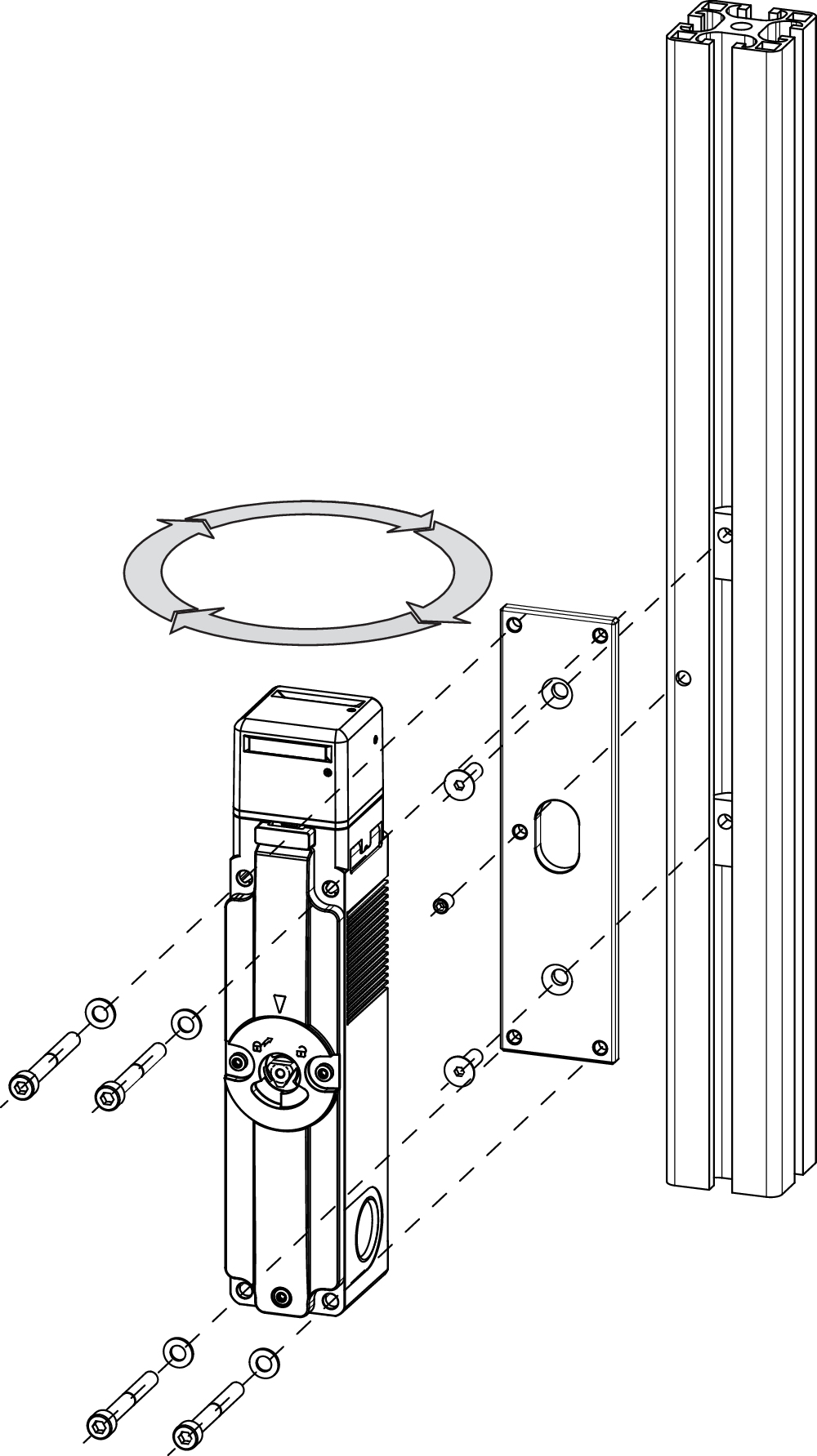

Assembly example

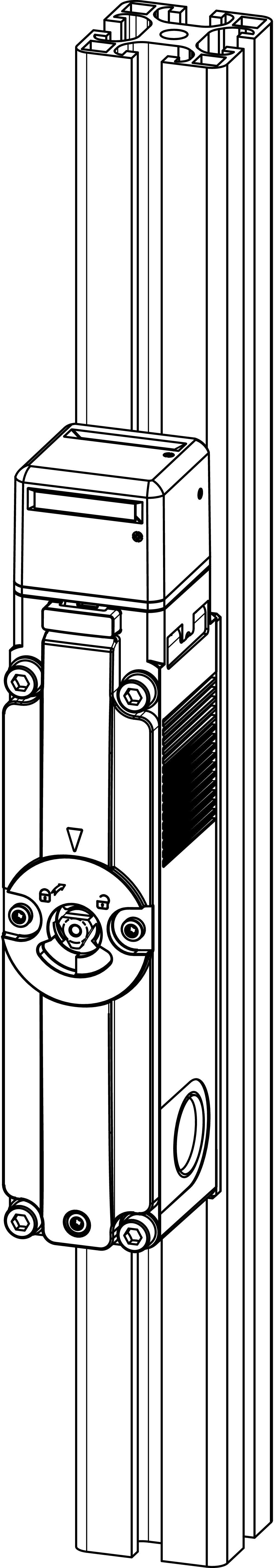

Assembly example
