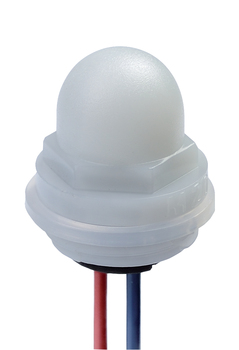

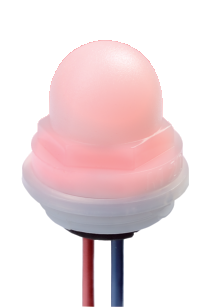

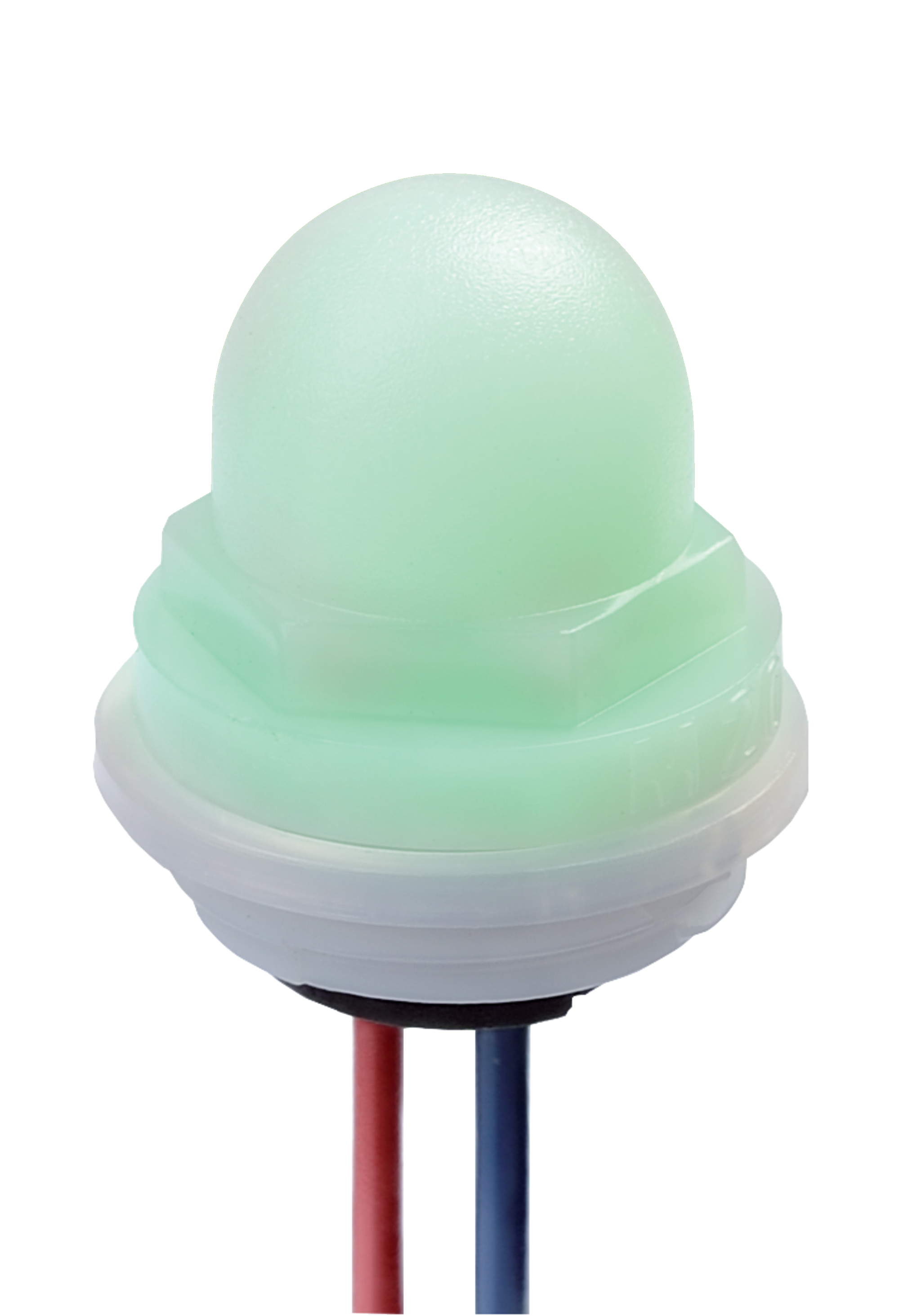

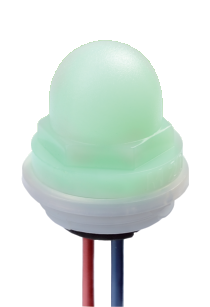

INDICATOR LAMP G24 -M20

Item number: 101150877
INDICATOR LAMP G24 -M20

Downloads

ePLAN Data
CADENAS CAD Data
SISTEMA Data

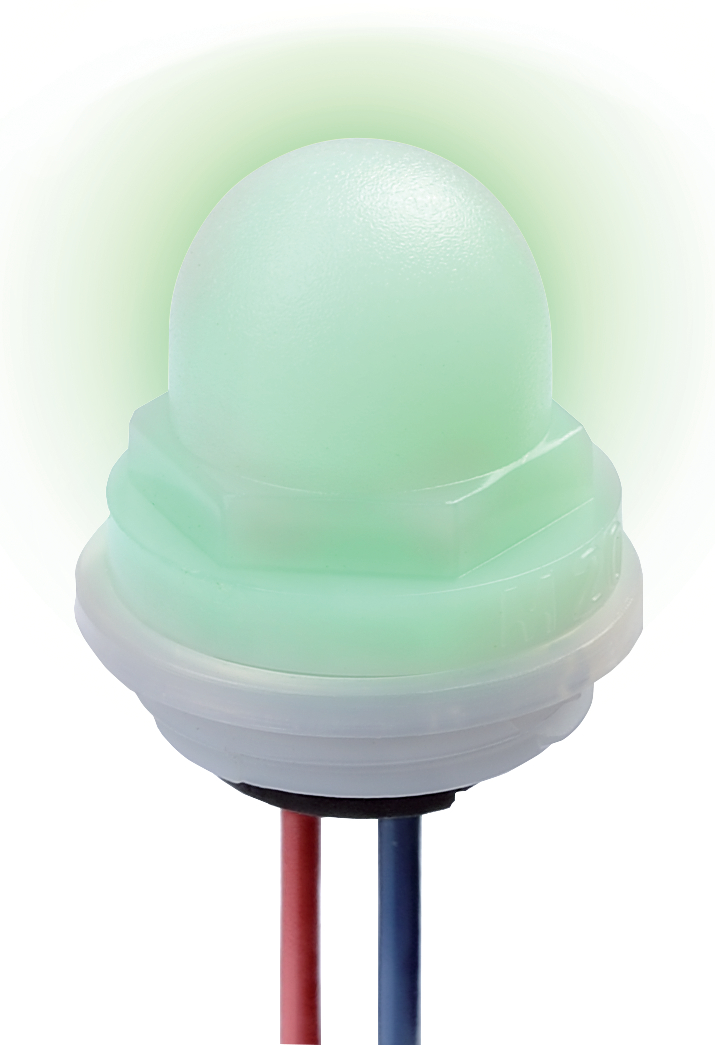

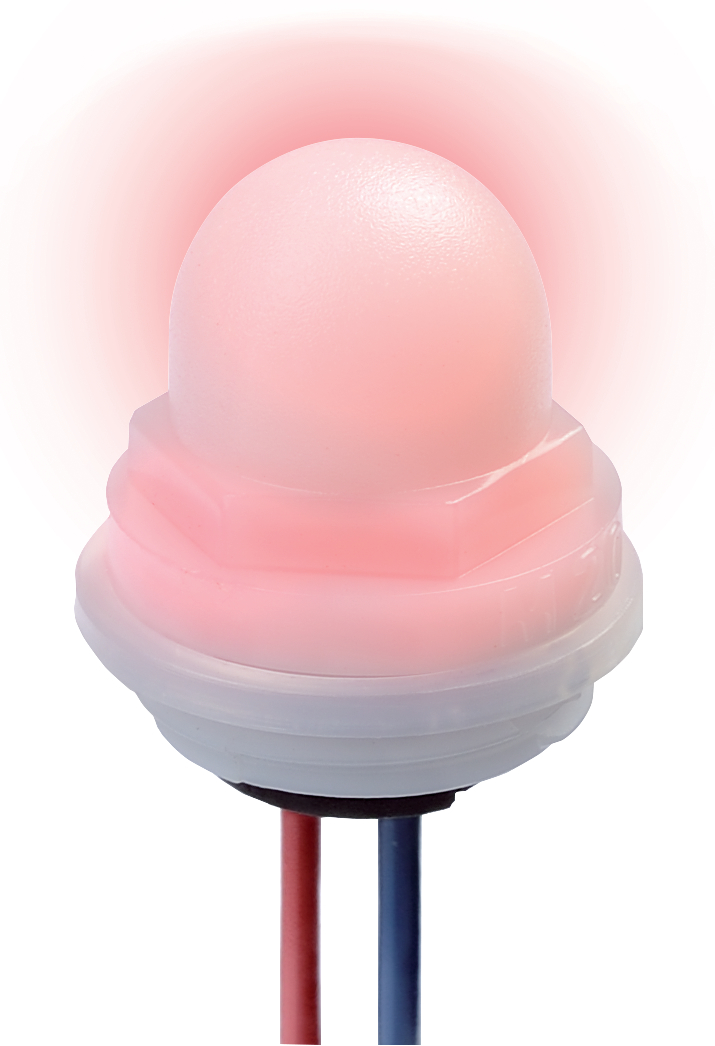

  • red LED and green LED
  • To be screwed in cable entries M 20 x 1.5

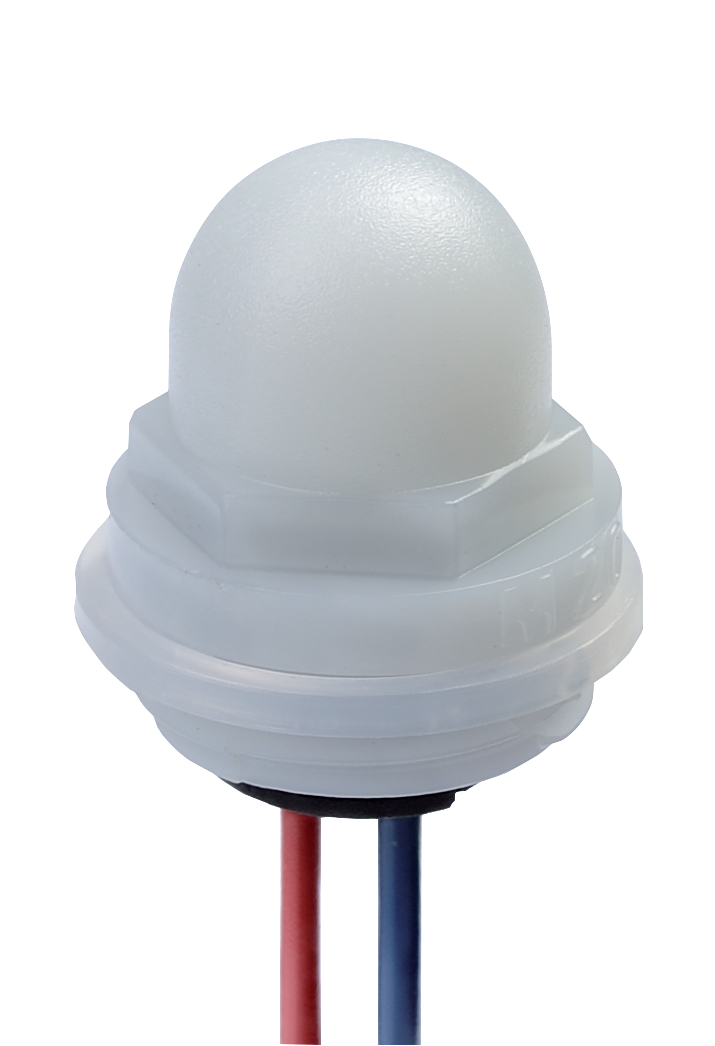

  • white lens (clear)

Ordering data

Product type description

INDICATOR LAMP G24 -M20
Article number (order number)

101150877
EAN (European Article Number)

4030661287959
eCl@ss number, version 12.0

27-37-12-11
eCl@ss number, version 11.0

27-37-12-11
eCl@ss number, version 9.0

27-37-12-11
ETIM number, version 7.0

EC000223
ETIM number, version 6.0

EC000223

General data

Colour of the dome

White
Gross weight

15 g

General data - Features

Indicator lamp

Yes
Number of cable wires

3
Optical signal

Yes

Mechanical data

Tightening torque, maximum

1.5 Nm

Mechanical data - Connection technique

Length of cable

0.2 m
Wire cross-section

0.34 mm2
Wire cross-section

22 AWG

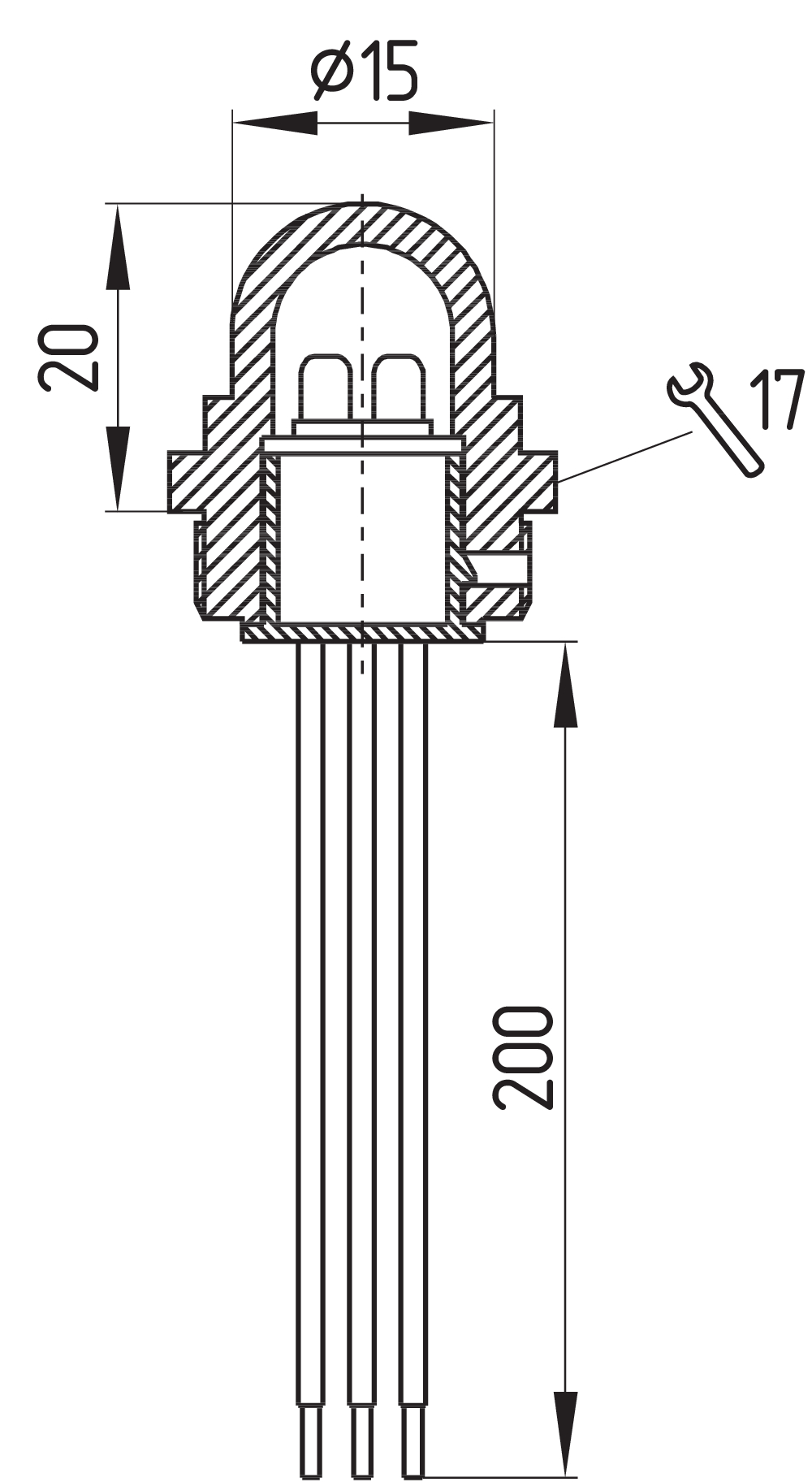

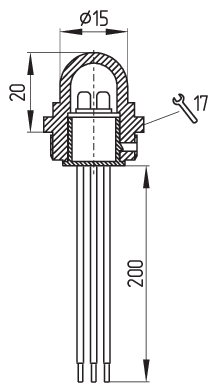

Mechanical data - Dimensions

Mounting height

20 mm
width across flats

17 BK
Diameter of the dome

15 mm
Diameter, metric ISO thread with pitch indication

M20 x 1.5

Ambient conditions

Degree of protection

IP67
Ambient temperature

-5 ... +70 °C

Electrical data

Rated operating voltage

24 VDC
Operating current

20 mA

Status indication

Colour of the LED

Green

Red
