EDRR40.1RT

Item number: 101184008
EDRR40.1RT

Downloads

ePLAN Data
CADENAS CAD Data
SISTEMA Data
Product type description:
EDR(1)(2)(3)(4)

(1)
RLatching (only in conjunction with EFR); unlocking by turning and pulling
RZLatching (only in conjunction with EFR); unlocking by pulling
ZLatching (integrated in the device head); unlocking by pulling
RSwith lock, unlocking only with key and pulling, (EFR required)

(2)
40Head diameter 38,5 mm
50Head diameter 49 mm

(3)
Mounting hole 22,3 mm
VHMounting hole 30,5 mm

(4)
RTControl element red
Not all component variants, which are possible according to this order code are available and/or technically feasible.
  • temperature resistant to -40°C

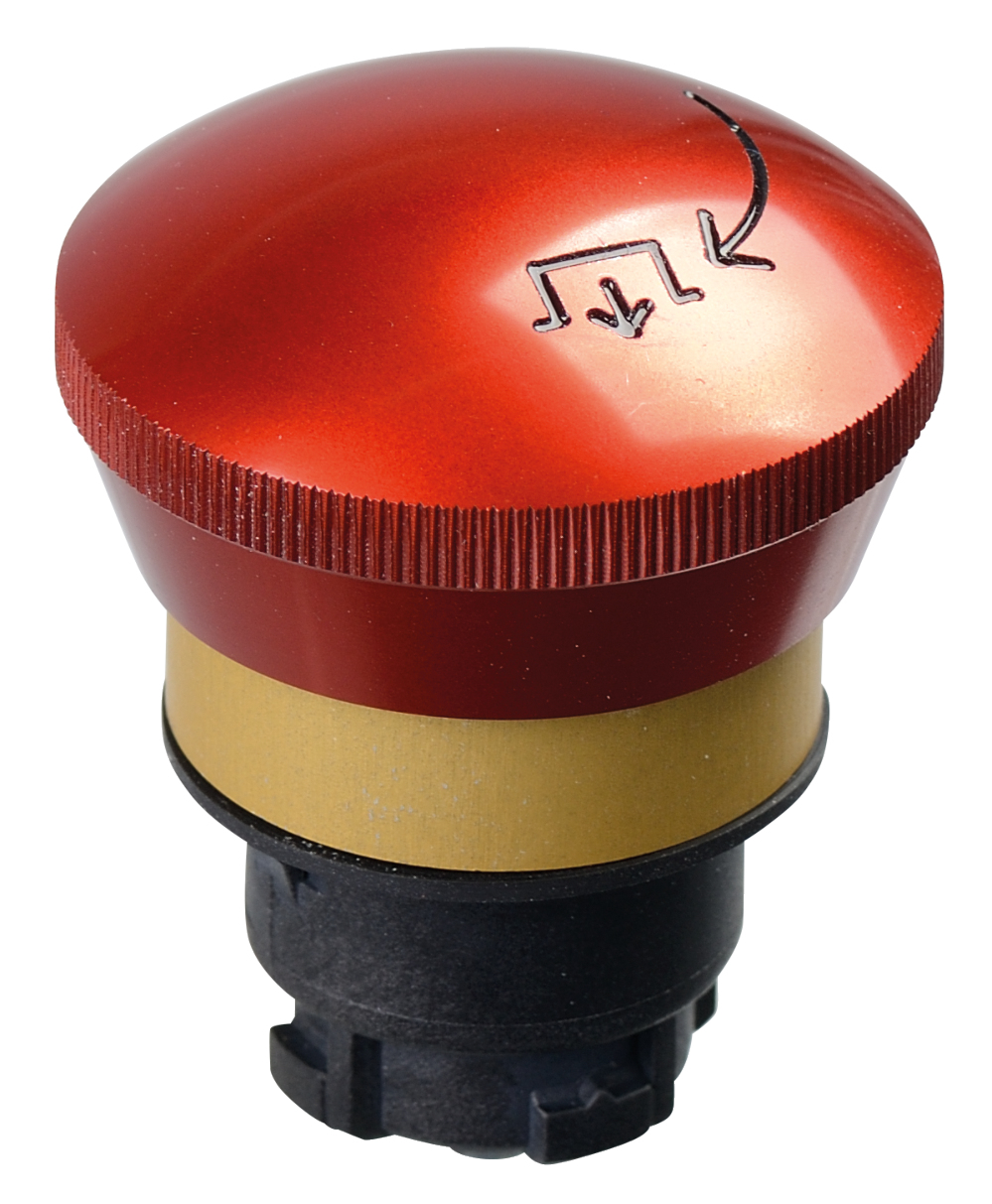

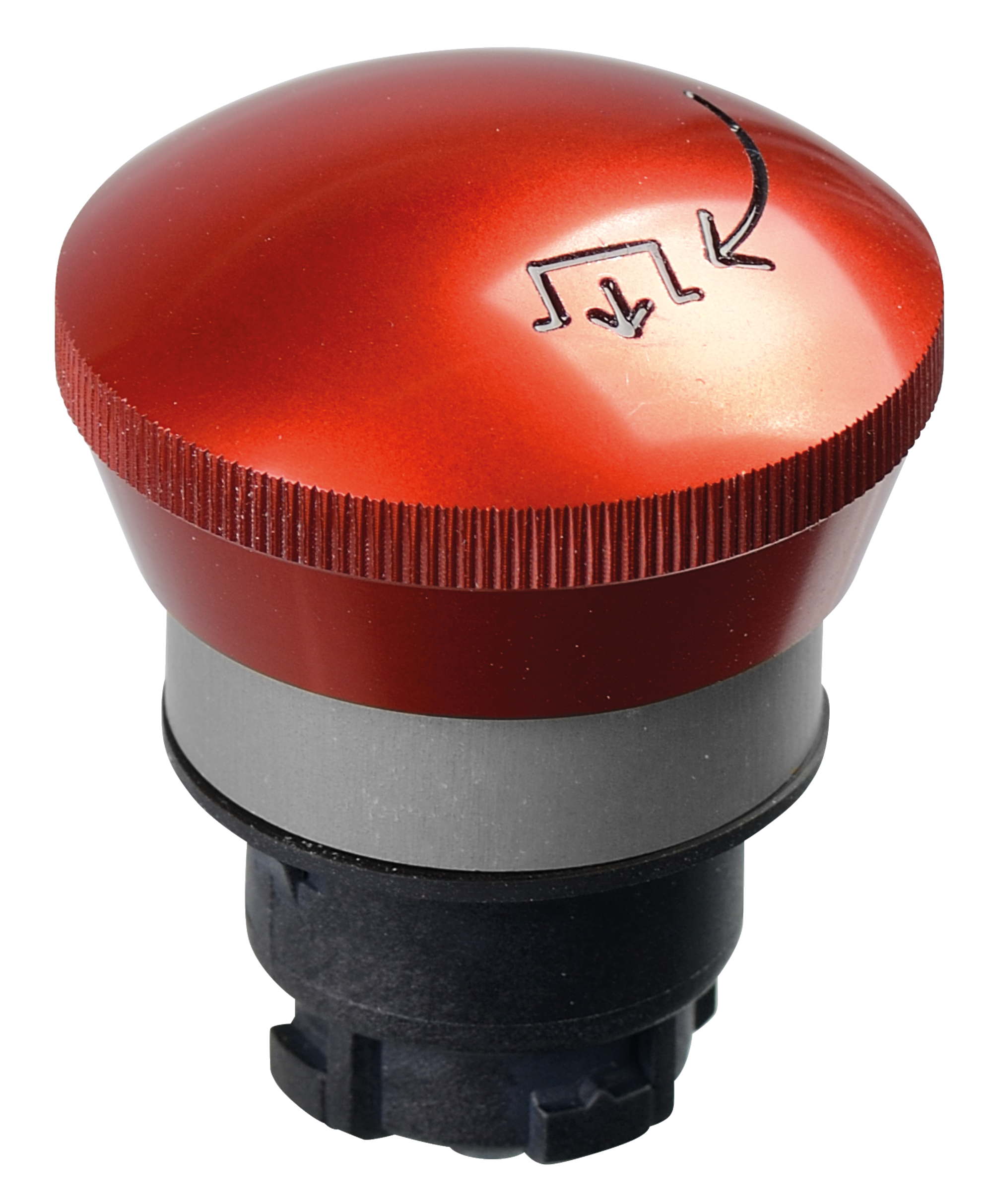

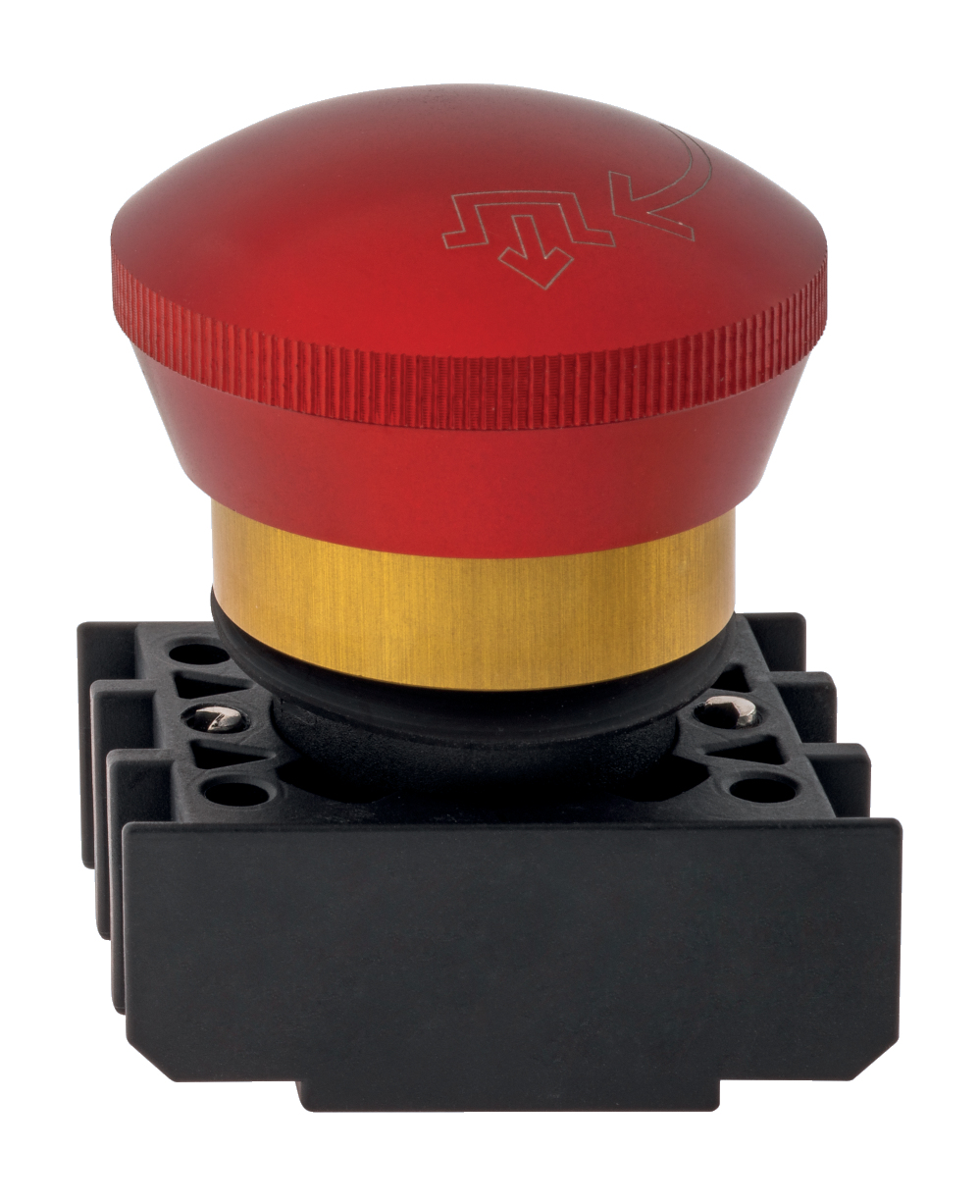

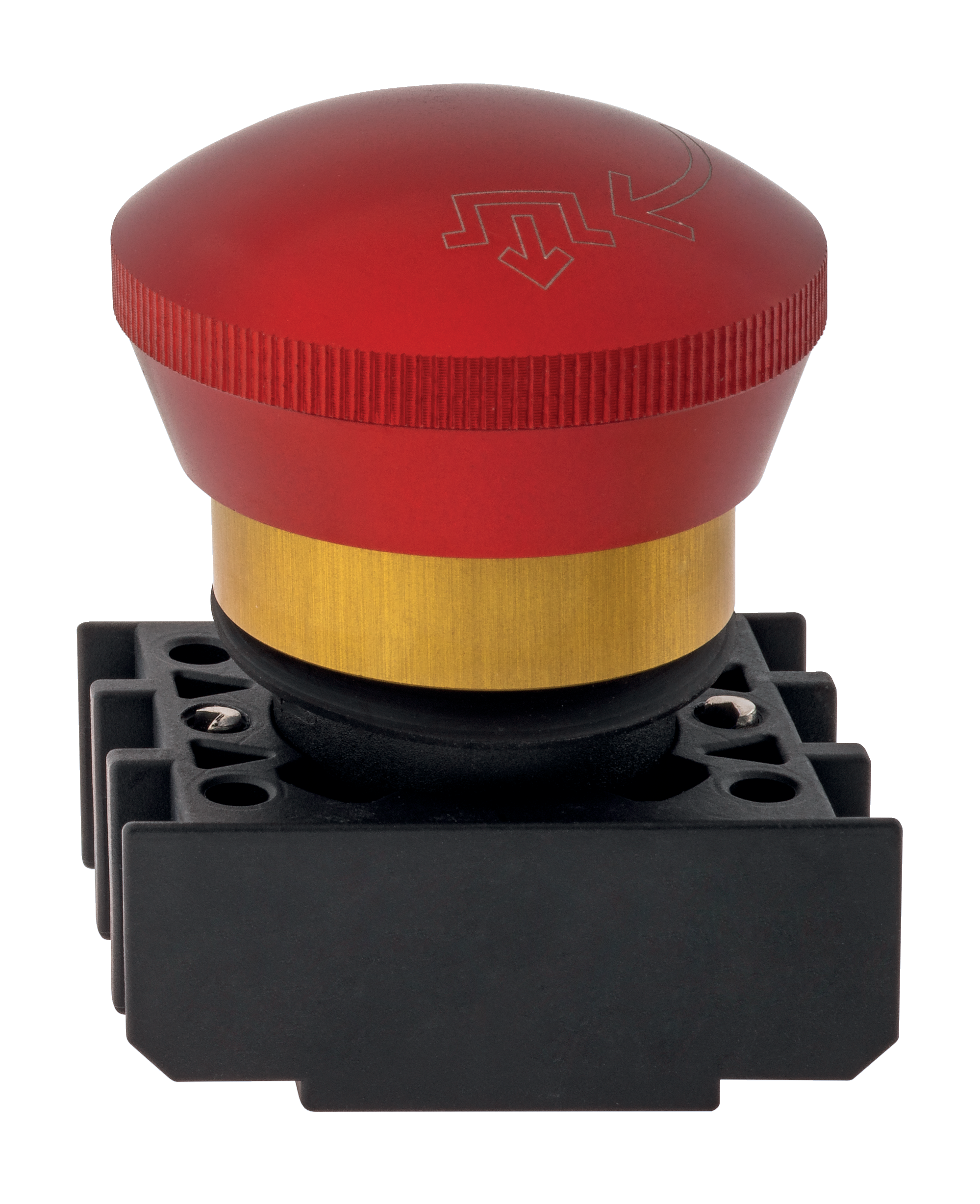

  • Emergency Stop button in metal version Ø 38,5 mm
  • Projection from front of panel 29 mm
  • Mounting hole 22.3 mm
  • Protection class IP65

Ordering data

Product type description

EDRR40.1RT
Article number (order number)

101184008
EAN (European Article Number)

4030661521381
eCl@ss number, version 12.0

27-37-12-12
eCl@ss number, version 11.0

27-37-12-12
eCl@ss number, version 9.0

27-37-12-12
ETIM number, version 7.0

EC001038
ETIM number, version 6.0

EC001038

Approvals - Standards

Certificates

cULus

General data

Standards

EN ISO 13850

EN 60947-5-1

EN 60947-5-5

EN 60947-1
Versions

Front plate mounting

Emergency stop pushbutton
Design

External jump mechanism
Installation conditions (mechanical)

arbitrarily
Material of the operators

Aluminium, anodised
Material of the front ring

Aluminium, anodised
Colour of the operating element

Red
Colour of the front ring

gold
Gross weight

80 g

General data - Features

Emergency-Stop button

Yes
Front plate mounting

Yes
Safety functions

Yes
External snap mechanism

Yes
Latching

Yes
Fully insulated

Yes
Number of contact elements, maximum

2

Mechanical data

Unlocking

Rotating-draw-unlatcher
Mechanical lifetime, Emergency-Stop button

100,000 Operations
Actuating stroke

5 mm
Mounting

Mounting flange ELM
Tightening torque of the screw

0.6 Nm
Typical actuating force of the emergency stop button

25 N

Mechanical data - Dimensions

Mounting height

29 mm
Note (Mounting height)

Height in front of the front panel.
Mounting depth

65 mm
Note (Mounting depth)

Depth behind front panel including one contact element
diameters for the actuating heads

38.5 mm
Mounting diameter

22.3 mm
Thickness, of the front panel, minimum

1 mm
Thickness of the front panel, maximum

6 mm
Spacing

50 x 40 mm

Ambient conditions

Degree of protection

IP65

Electrical data

Switching frequency of the emergency stop button, maximum

600 /h

Scope of delivery

Note (scope of delivery, number and type)

Mounting flange ELM is included in delivery
