ACC-IFL-MOCL-H40
- For a smooth fitting of the proximity switches with cylindric shape Ø 40 mm
Ordering data
| Product type description |
ACC-IFL-MOCL-H40 |
| Article number (order number) |
101068521 |
| EAN (European Article Number) |
4030661105314 |
| eCl@ss number, version 12.0 |
27-27-40-92 |
| eCl@ss number, version 11.0 |
27-27-01-92 |
| eCl@ss number, version 9.0 |
27-27-01-92 |
| ETIM number, version 7.0 |
EC000127 |
| ETIM number, version 6.0 |
EC000127 |
General data
| Material of the terminal fixing |
Thermoplastic |
| Gross weight |
58 g |
Mechanical data - Dimensions
| Width |
64 mm |
| Height |
50 mm |
| Depth |
21 mm |
| Diameter of the Mounting clamp |
40 mm |
| Diameter of the Mounting clamp |
M40 |

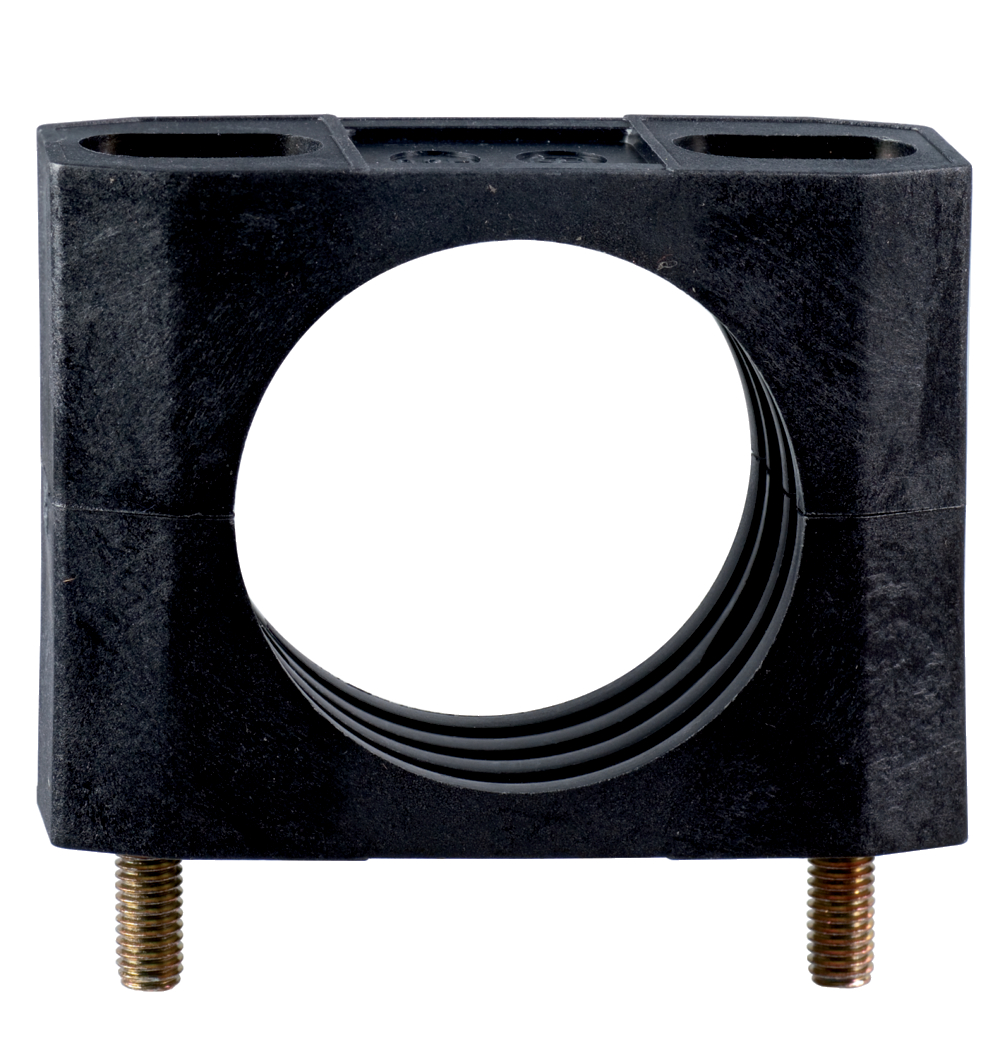

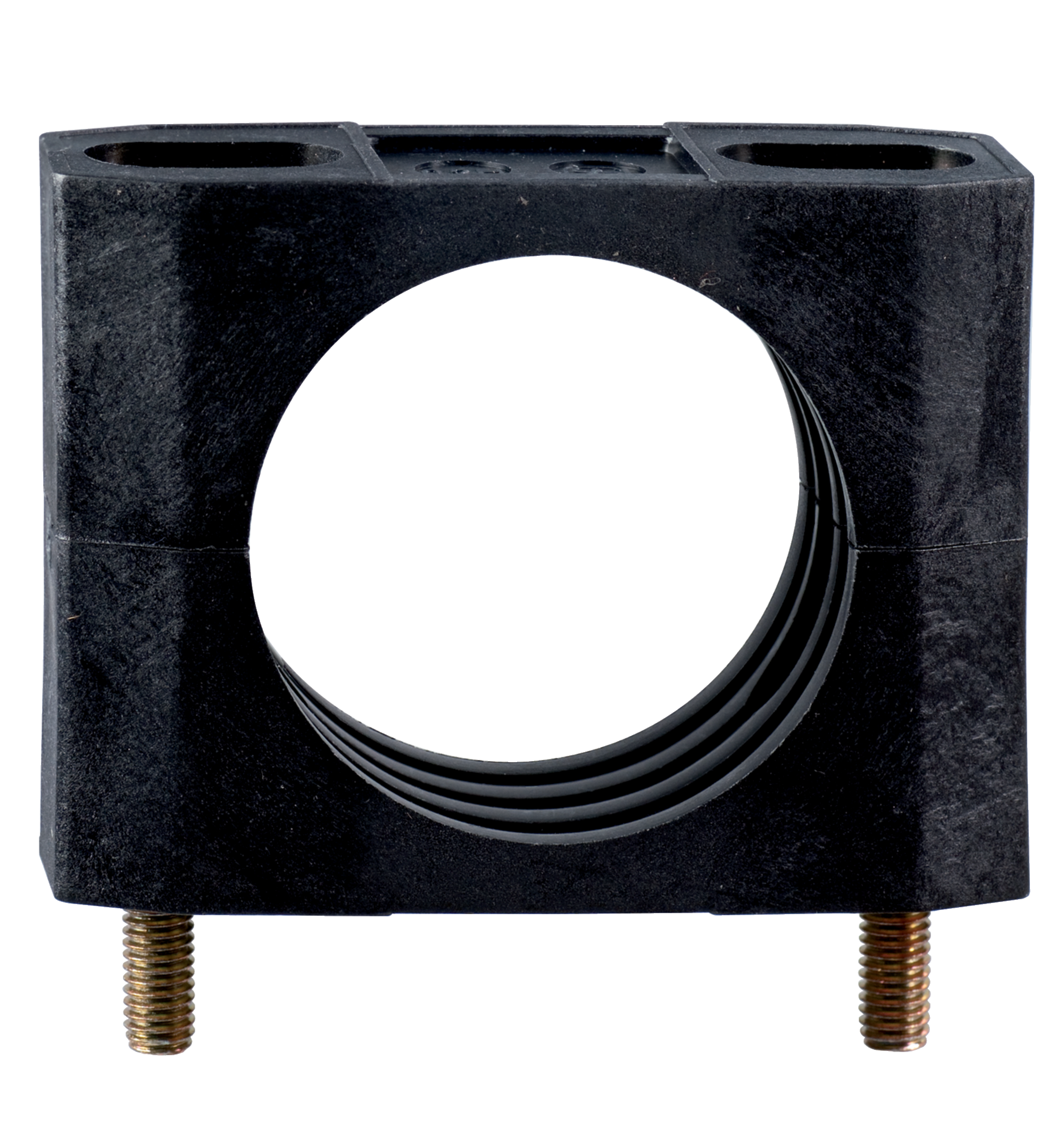

Product picture (catalogue individual photo)
ID: kkh40f01
| 636.4 kB | .jpg | 352.778 x 372.886 mm - 1000 x 1057 px - 72 dpi
| 47.9 kB | .png | 74.083 x 78.31700000000001 mm - 210 x 222 px - 72 dpi
| 68.3 kB | .jpg | 116.769 x 123.47200000000001 mm - 331 x 350 px - 72 dpi
| 50.2 kB | .png | 74.083 x 74.083 mm - 210 x 210 px - 72 dpi
| 4.4 MB | .png | 211.667 x 223.732 mm - 2000 x 2114 px - 240 dpi

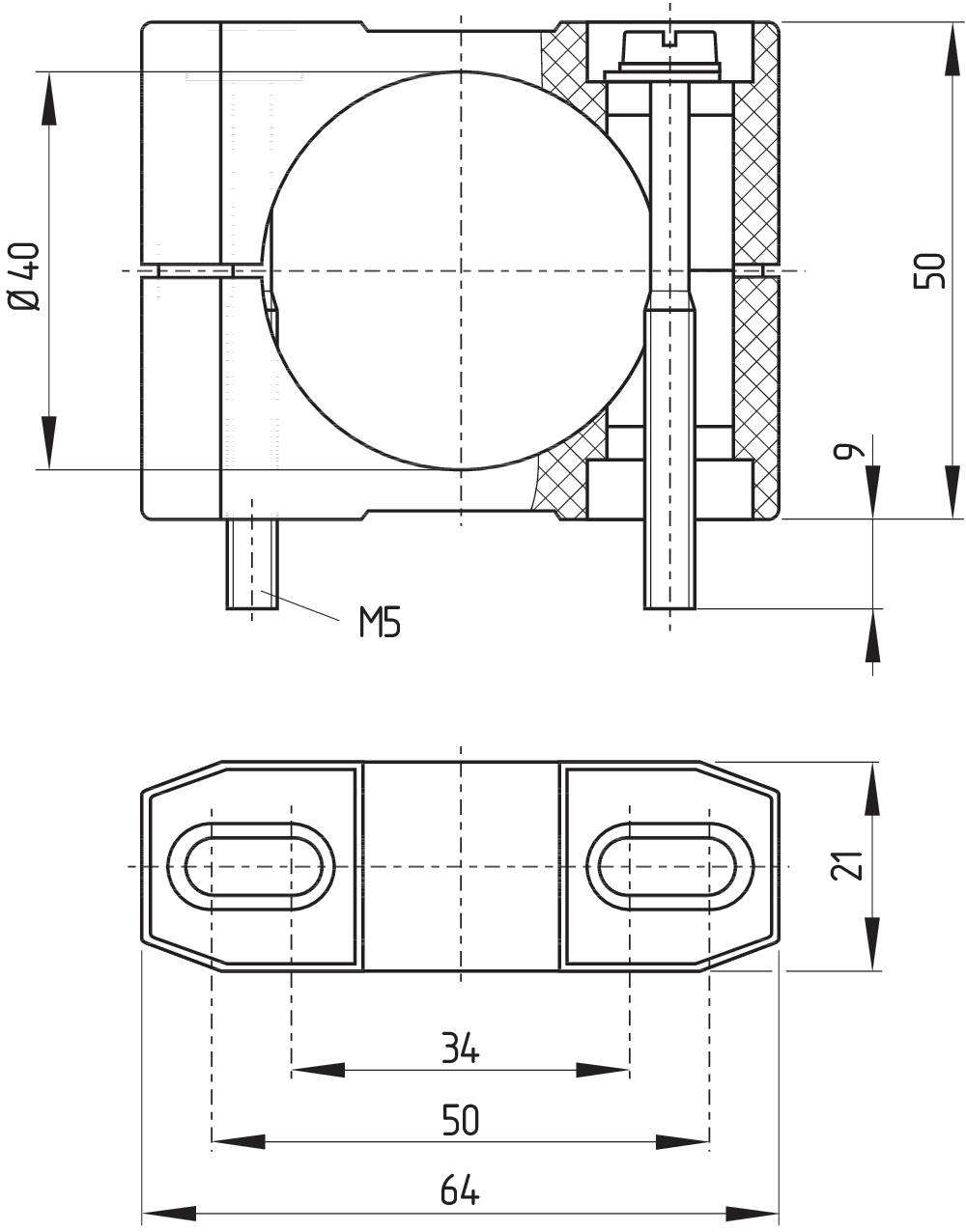

Dimensional drawing basic component

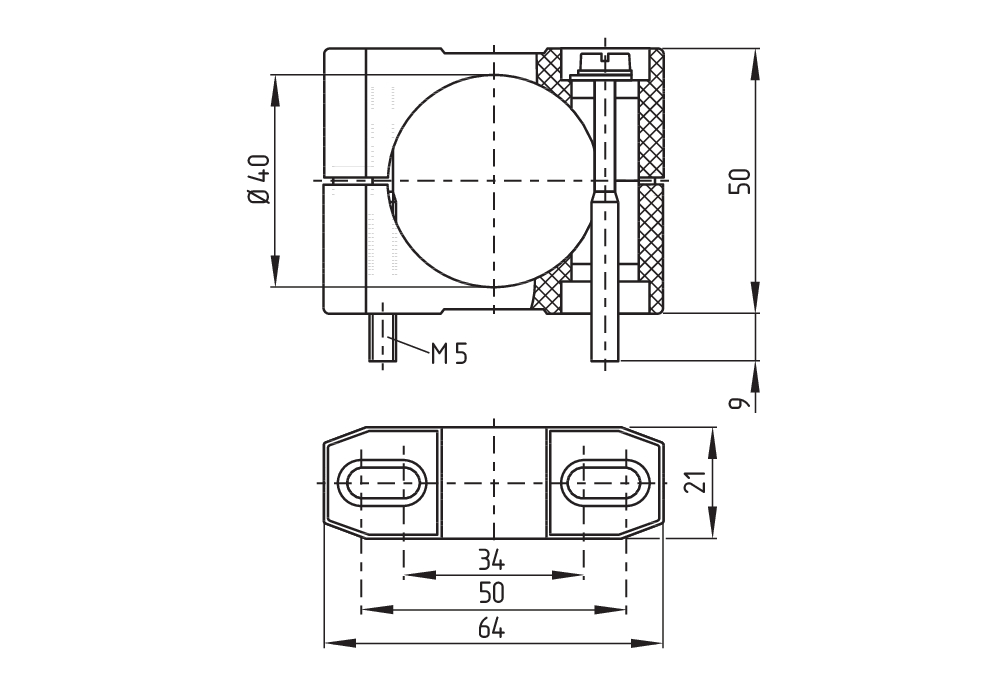

Dimensional drawing basic component
