ACC-AZM150-PT-T-170MM

Item number: 103055760
ACC-AZM150-PT-T-170MM

Downloads

ePLAN Data
CADENAS CAD Data
SISTEMA Data

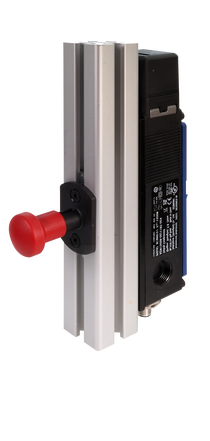

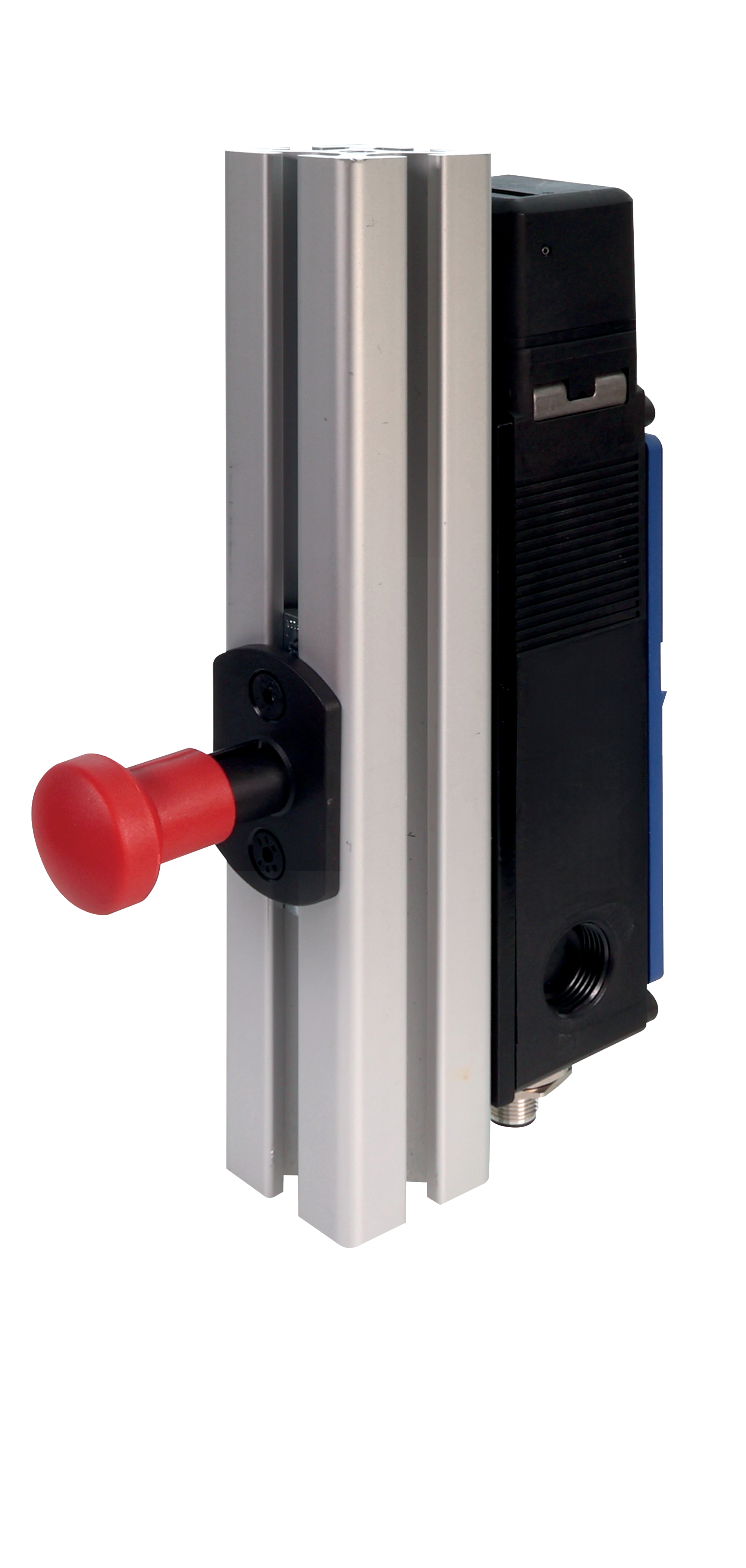

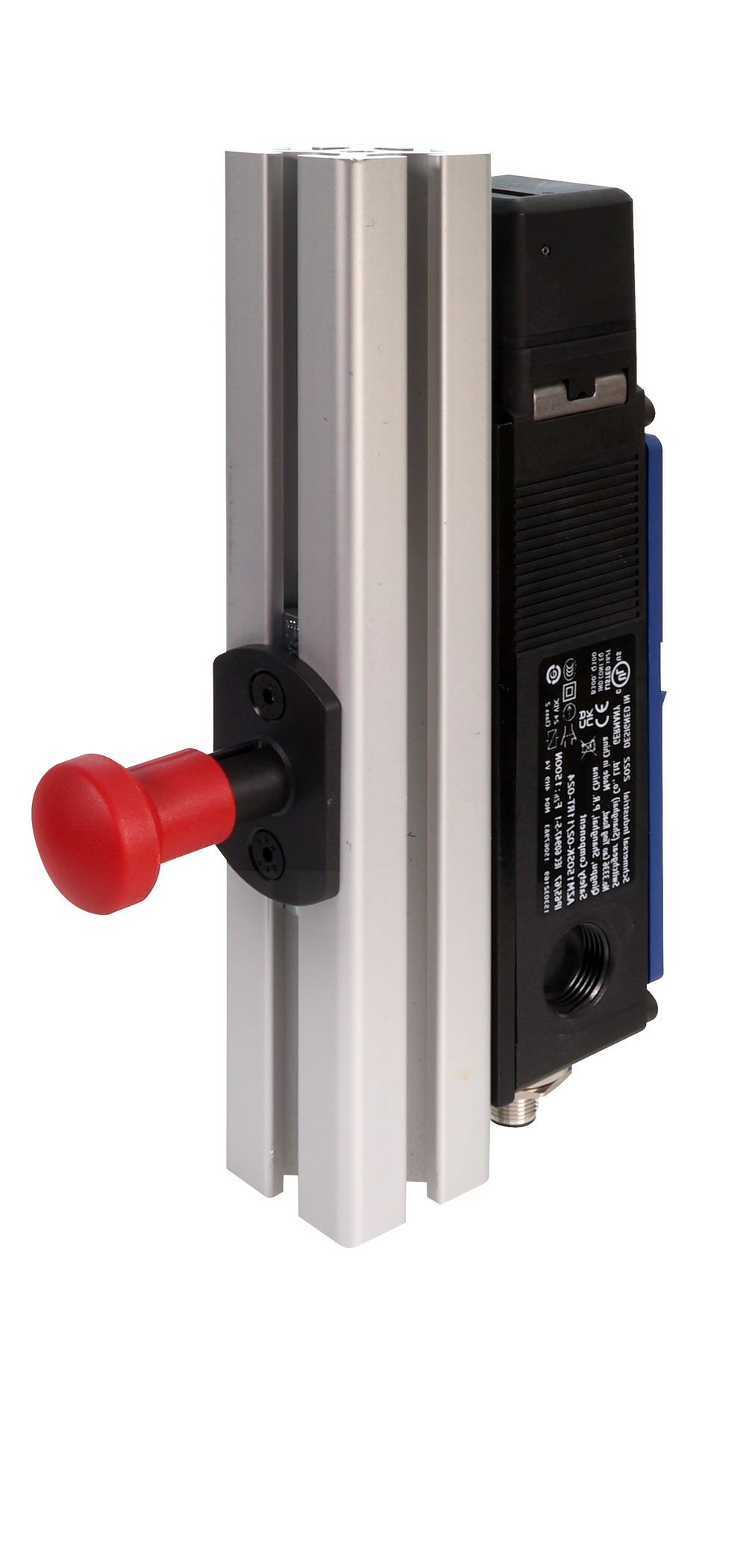

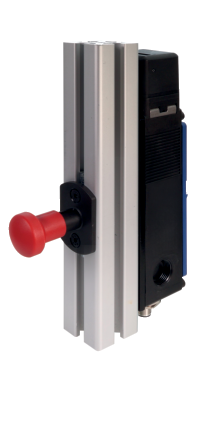

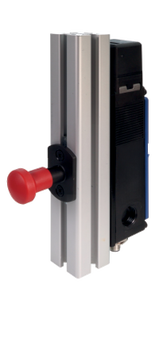

  • Push button emergency exit

  • suitable for a maximum frame thickness of 170 mm

  • Retrofit set for AZM150

  • Intuitive operation due to similarity to emergency stop

  • can be shortened by the customer up to a minimum frame thickness of 20 mm

Ordering data

Product type description

ACC-AZM150-PT-T-170MM
Article number (order number)

103055760
EAN (European Article Number)

4030661647524

General data

Housing material

Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
Material of the operators

Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
Colour of the housing

Black
Colour of the operating element

Red
Gross weight

80 g

General data - Features

Emergency exit

Yes

Mechanical data

Type of the fixing screws

2x M5
Type of the screw head

Countersunk screw
Tightening torque of the screw for release socket

0.55 Nm
Type of the fixing screws, release socket

M2 x 13 (TX6)

Mechanical data - Dimensions

Length

54 mm
Width

35 mm
Height

58 mm
Diameter hole

14 mm

Note

Note (General)

Ideally suited for a frame thickness of 40mm in addition with the mounting plate MP-AZM150-1. Can be shortened by the customer to a minimum frame thickness of 20mm.

Suitable for a maximum frame thickness of 170 mm. Can be shortened by the customer up to a minimum frame thickness of 20 mm.

Schmersal India Pvt. Ltd., Plot No - G-7/1, Ranjangaon MIDC, Tal. - Shirur, Dist.- Pune 412 220

The details and data referred to have been carefully checked. Images may diverge from original. Further technical data can be found in the manual. Technical amendments and errors possible.
