UV9H 434Y
UV9H 434Y
Downloads
Ordering data
| Note (Delivery capacity) |
Not available! |
| Product type description |
UV9H 434Y |
| Article number (order number) |
101060641 |
| EAN (European Article Number) |
4030661048888 |
| eCl@ss number, version 12.0 |
27-27-06-01 |
| eCl@ss number, version 11.0 |
27-27-06-01 |
| eCl@ss number, version 9.0 |
27-27-06-01 |
| ETIM number, version 7.0 |
EC000030 |
| ETIM number, version 6.0 |
EC000030 |
Approvals - Standards
| Certificates |
cULus |
General data
| Gross weight |
602 g |
General data - Features
| Number of normally closed (NC) |
2 |
| Number of normally open (NO) |
2 |
Mechanical data - Connection technique
| Termination |
Screw terminals M20 x 1.5 |
| Cable section, minimum |
1.5 mm² |
| Cable section, maximum |
2.5 mm² |
| Note |
All indications including the conductor ferrules. |
| Wire cross-section |
13 AWG |
Electrical data
| Switching element |
NC contact NO contact |
| Switching principle |
Slow action |
Language filter
Datasheet
UL Certificate
Download the latest version of Adobe Reader

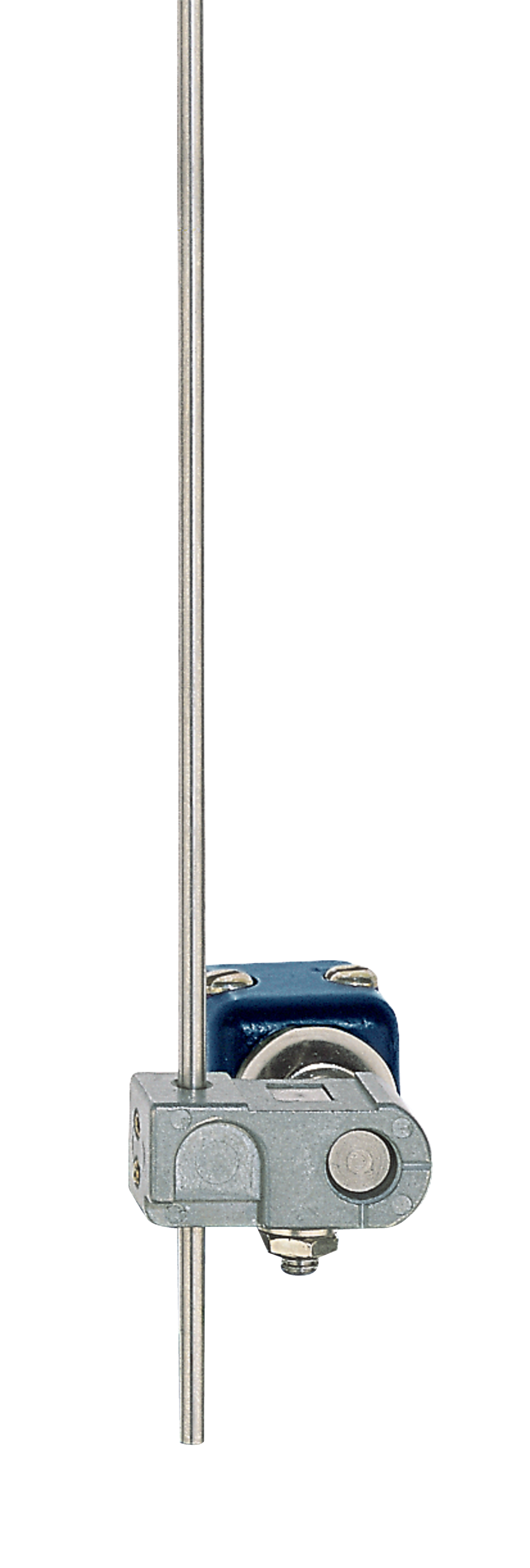

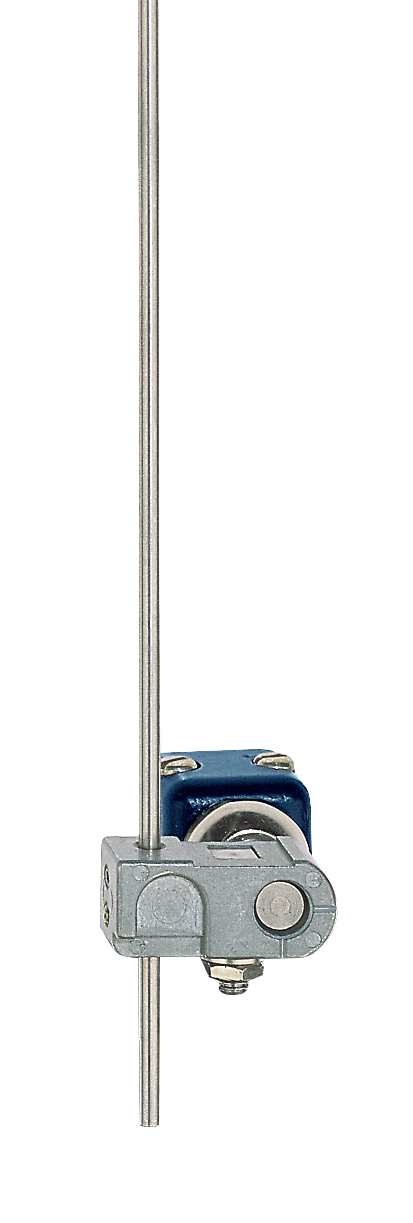

Product picture (catalogue individual photo)
ID: BU43HF18
| 44.3 kB | .png | 74.083 x 219.07500000000002 mm - 210 x 621 px - 72 dpi
| 129.0 kB | .jpg | 145.697 x 431.447 mm - 413 x 1223 px - 72 dpi
| 11.2 kB | .jpg | 41.628 x 123.47200000000001 mm - 118 x 350 px - 72 dpi
| 7.8 kB | .png | 74.083 x 74.083 mm - 210 x 210 px - 72 dpi
| 4.1 MB | .png | 166.55700000000002 x 493.17600000000004 mm - 2000 x 5922 px - 305 dpi
Switch travel diagram
Contact closed
Contact open
Setting range
Latching point
Positive opening path/angle
Monitoring the interlock to EN ISO 14119
Positive break NC contact
Actuated
Not actuated
Normally-open contact
Normally-closed contact
