TESZX/S
TESZX/S
Downloads
Ordering data
| Product type description |
TESZX/S |
| Article number (order number) |
101031680 |
| EAN (European Article Number) |
4030661449012 |
| eCl@ss number, version 12.0 |
27-27-06-09 |
| eCl@ss number, version 11.0 |
27-27-06-09 |
| eCl@ss number, version 9.0 |
27-27-06-09 |
| ETIM number, version 7.0 |
EC002591 |
| ETIM number, version 6.0 |
EC002591 |
Approvals - Standards
| Certificates |
cULus CCC |
General data
| Material of the hinge |
Stainless steel |
| Gross weight |
317 g |
Mechanical data - Dimensions
| Width |
71 mm |
| Height |
92 mm |
| Length x Width x Height |
Suitable for mounting to profile systems: 40 mm |
Language filter
Datasheet
UL Certificate
CCC certification
Download the latest version of Adobe Reader

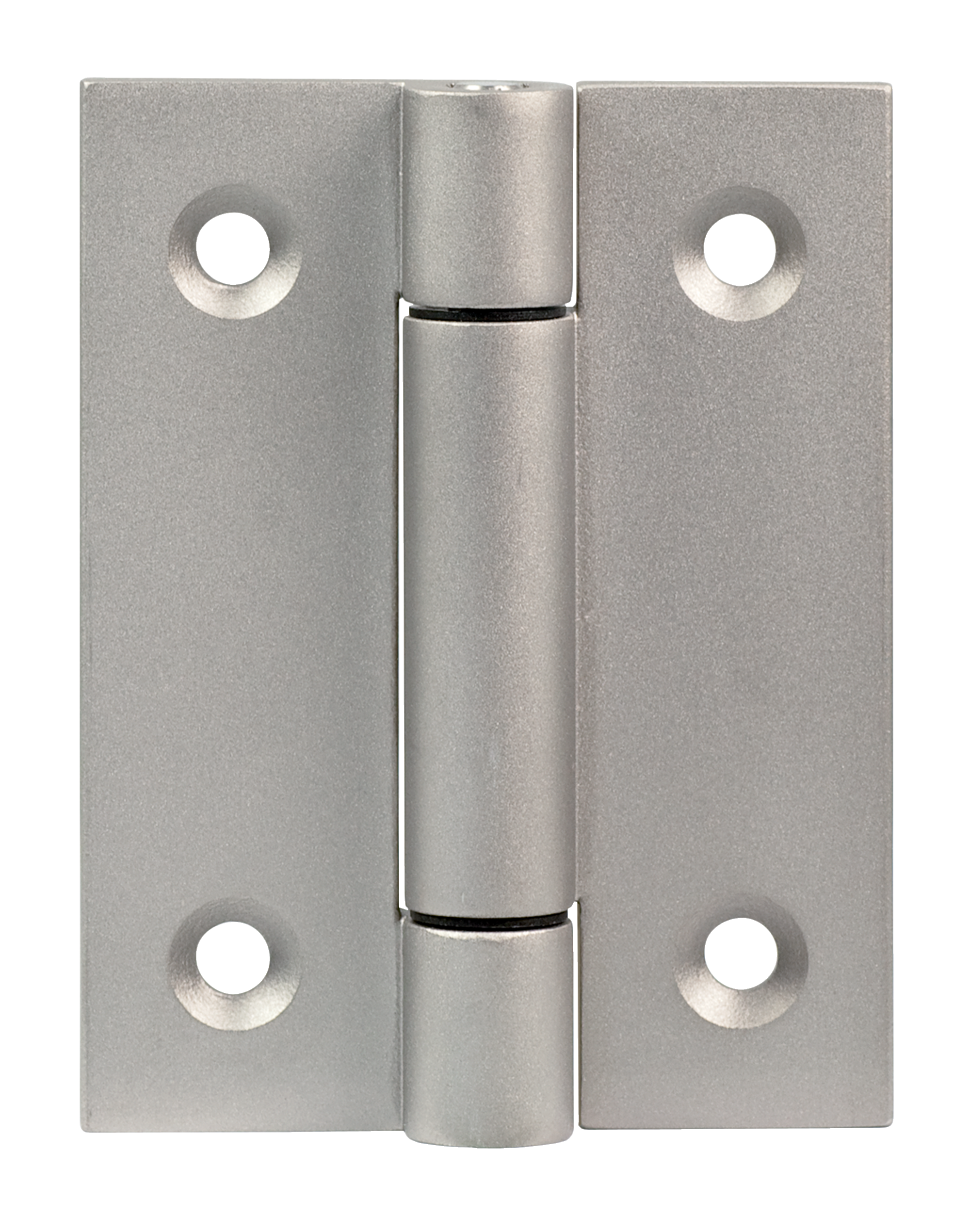

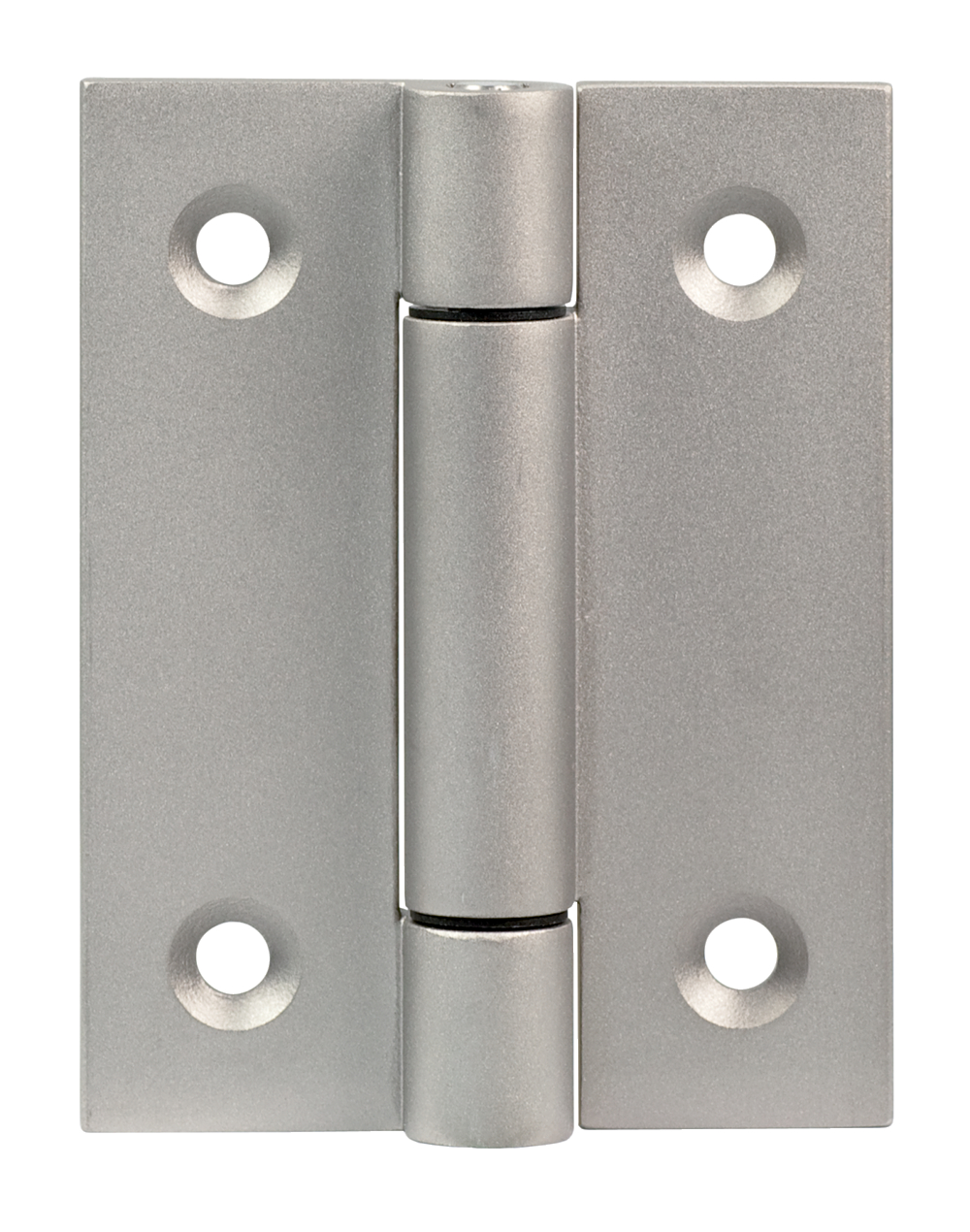

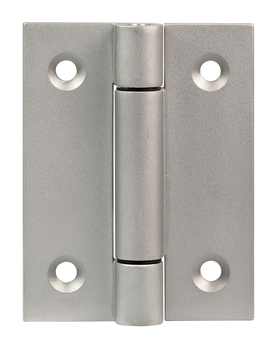

Product picture (catalogue individual photo)
ID: ktezzf10
| 833.9 kB | .jpg | 352.778 x 448.028 mm - 1000 x 1270 px - 72 dpi
| 55.2 kB | .png | 73.73100000000001 x 93.839 mm - 209 x 266 px - 72 dpi
| 51.9 kB | .jpg | 97.367 x 123.47200000000001 mm - 276 x 350 px - 72 dpi
| 48.4 kB | .png | 74.083 x 74.083 mm - 210 x 210 px - 72 dpi
| 7.5 MB | .png | 169.333 x 215.053 mm - 2000 x 2540 px - 300 dpi
Dimensional drawing basic component
Schmersal Ltd., Sparrowhawk Close, WR14 1GL Malvern
The details and data referred to have been carefully checked. Images may diverge from original. Further technical data can be found in the manual. Technical amendments and errors possible.
Generated at: 15/04/2026, 06:14
