PS116-T12-LR200-R201
- Pre-wired cable right, 2 m
- Stainless steel roller Ø 9,5 mm
- Symmetric enclosure
- Protection class IP66, IP67
- Thermoplastic enclosure
Ordering data
| Product type description |
PS116-T12-LR200-R201 |
| Article number (order number) |
103053120 |
| EAN (European Article Number) |
4030661633879 |
Approvals - Standards
| Certificates |
CCC UL |
General data
| Standards |
EN IEC 60947-5-1 |
| Housing construction form |
Norm construction design |
| Actuator type to EN 50047 |
c |
| Housing material |
Plastic, glass-fibre reinforced thermoplastic, zinc die-cast, chromated |
| Active area |
Metal film |
| Material of the actuator |
Stainless steel (1.4104) |
| Gross weight |
195 g |
General data - Features
| Safety functions |
Yes |
| Number of auxiliary contacts |
1 |
| Number of safety contacts |
2 |
Safety classification
| Standards |
EN ISO 13849-1 |
| B10D Normally-closed contact (NC) |
20,000,000 Operations |
| B10D Normally-open contact (NO) |
1,000,000 Operations |
| Note |
at 10% Ie and ohmic load |
| Mission time |
20 Year(s) |
Mechanical data
| Mechanical lifetime, minimum |
10,000,000 Operations |
| Actuating force, minimum |
10 N |
| Positive break force, minimum |
40 N |
| Actuating speed, minimum |
60 mm/min |
| Actuating speed, maximum |
1 m/s |
| Note (Actuating speed) |
Actuating speed with actuating angle 30° to switch axis |
| Actuating torque, minimum |
0.2 Nm |
| Positive break torque |
0.6 Nm |
Mechanical data - Connection technique
| Length of cable |
2 m |
| Termination |
Pre-wired cable Cable, 6-pole |
| Number of cable wires |
6 |
| Wire cross-section |
0.5 mm2 |
| Cable type |
LiYY |
| Terminal (mechanical) |
right |
Mechanical data - Dimensions
| Length of sensor |
16.6 mm |
| Width of sensor |
31 mm |
| Height of sensor |
74.1 mm |
| Diameter of Castor |
9.5 mm |
Ambient conditions
| IP Degree of protection |
IP66 IP67 |
| Ambient temperature |
-30 ... +80 °C |
| Protection class |
II |
Ambient conditions - Insulation values
| Rated insulation voltage Ui |
300 V |
| Rated impulse withstand voltage Uimp |
4 kV |
| Degree of pollution |
3 |
Electrical data
| Required rated short-circuit current |
400 A |
| Utilisation category AC-15 |
240 VAC |
| Utilisation category DC-13 |
24 VDC |
| Utilisation category DC-13 |
1.5 A |
| Switching element |
1 NO contact, 2 NC contacts |
| Switching principle |
Slow action |
| Bounce duration, maximum |
3 ms |
| Maximale Schalthäufigkeit |
5,000 /h |
| Switchover time, maximum |
5.5 ms |
| Material of the contacts, electrical |
Silver |
Language filter
Datasheet
Operating instructions (supplementary sheet/quick guide)
UL Certificate
CCC certification
Brochure
SISTEMA-VDMA library
Download the latest version of Adobe Reader

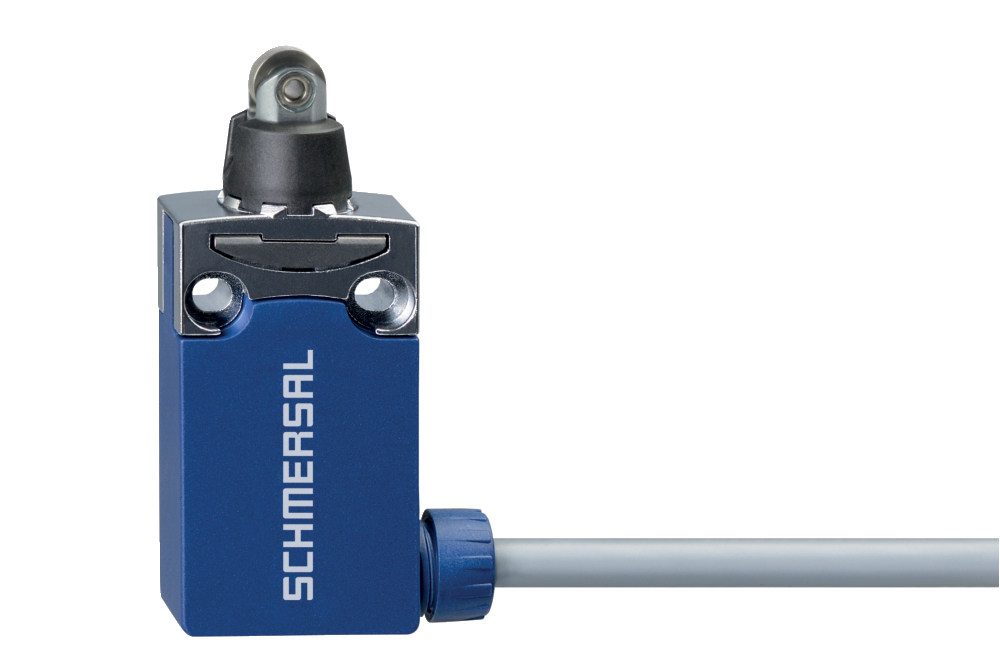

Product picture (catalogue individual photo)
