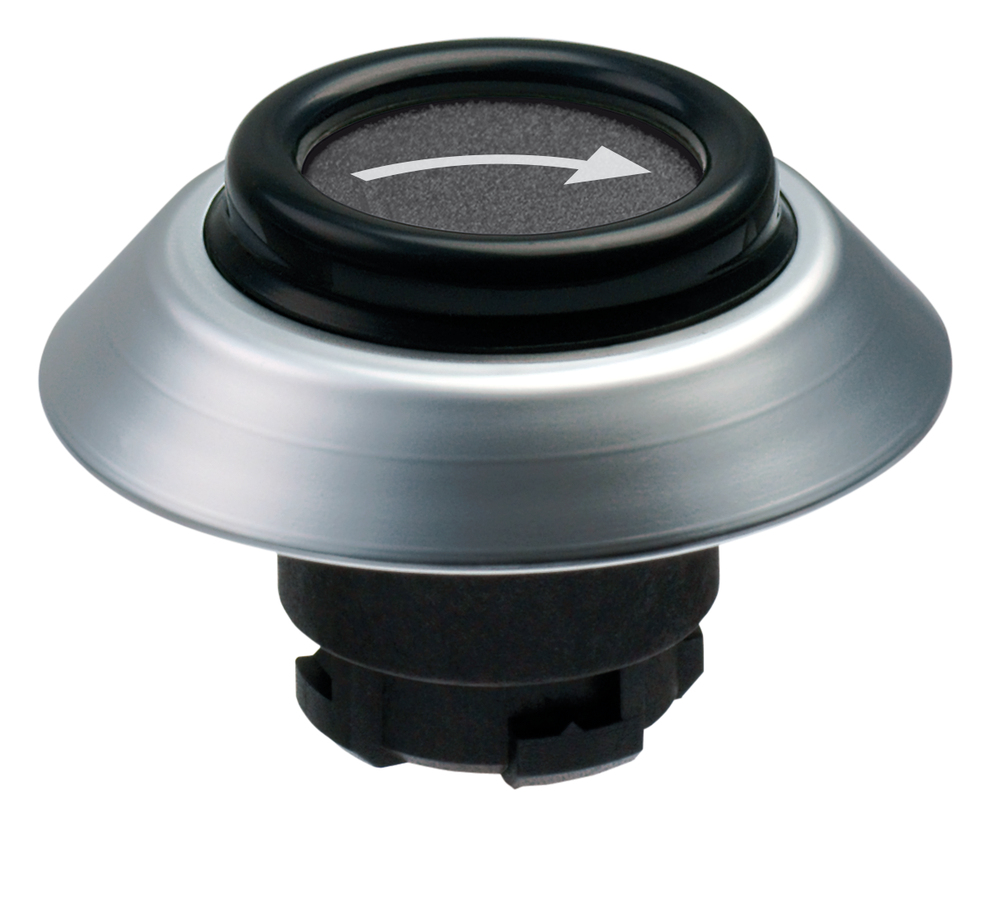

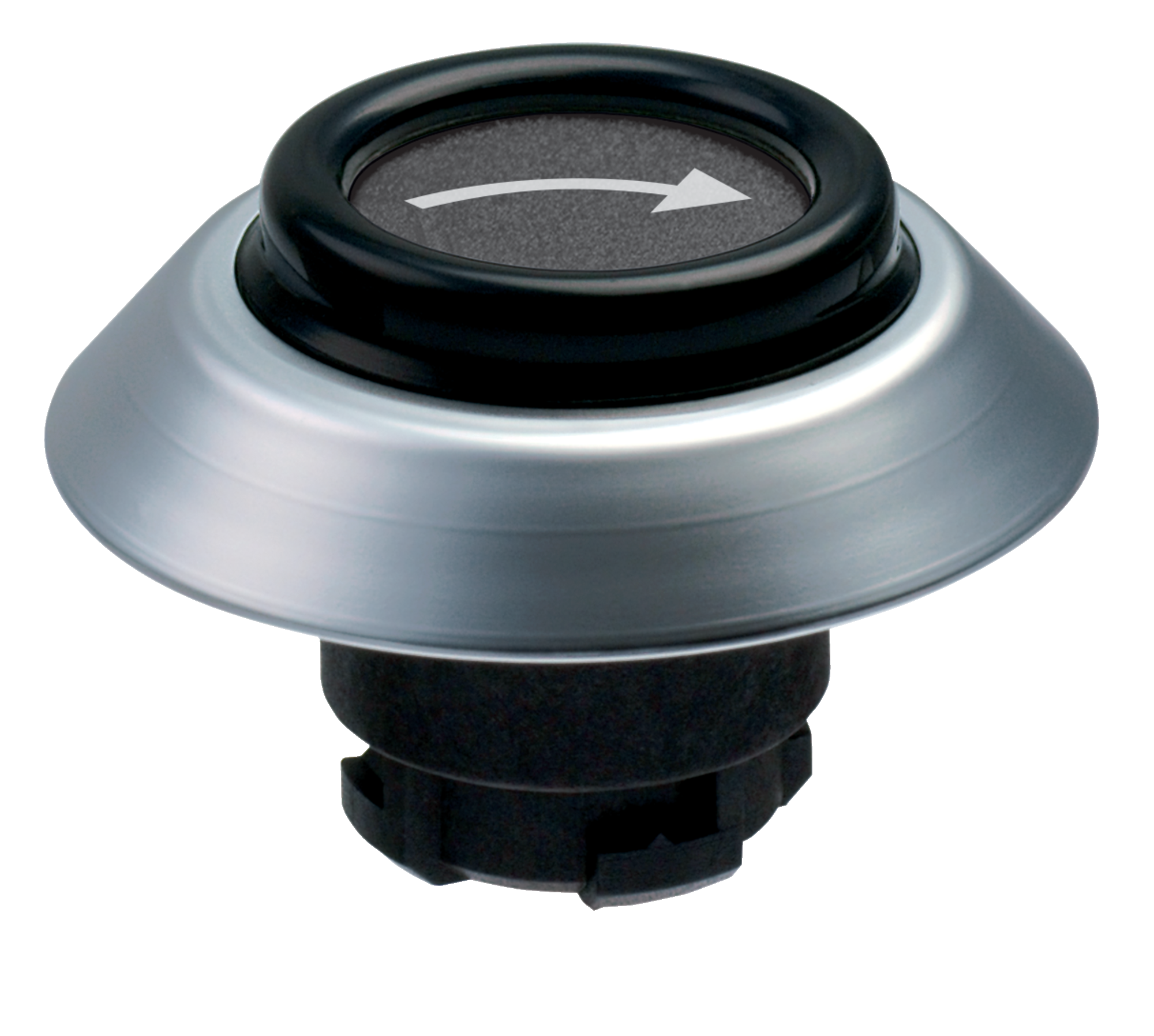

NDTGR/SW/201D

Item number: 103001501
Archive
NDTGR/SW/201D

Downloads

ePLAN Data
CADENAS CAD Data
SISTEMA Data
  • hygienic design
  • Protection class IP69K
  • Mounting hole 22.3 mm

Ordering data

Note (Delivery capacity)

Not available!
Product type description

NDTGR/SW/201D
Article number (order number)

103001501
EAN (European Article Number)

4030661569987
eCl@ss number, version 12.0

27-37-12-10
eCl@ss number, version 11.0

27-37-12-10
eCl@ss number, version 9.0

27-37-12-10
ETIM number, version 7.0

EC000221
ETIM number, version 6.0

EC000221

Approvals - Standards

Certificates

cULus

General data

Standards

EN IEC 60947-5-1

EN IEC 60947-1
Versions

Pushbutton

Front plate mounting
Design

Round

Tactile
Installation conditions (mechanical)

arbitrarily
Sealing type

Membrane

Lip gaskets
Material of the operators

ABS
Material of the front ring

ABS, chrome-plated
Colour of the operating element

Black
Colour of the front ring

Silver
Colour of the bellows

Black
Gross weight

25 g

General data - Features

With symbol labeling

Yes
Mounting flange

Yes
Probing possible

Yes
Fully insulated

Yes
Number of contact elements, maximum

3

Mechanical data

Unlocking

without
Mechanical lifetime, Command devices

1,000,000 Operations
Mounting

Mounting flange EFMH
Tightening torque of the screw

0.6 Nm
Symbol labeling number

201
Type of labeling

Print
Typical actuating force of the push button

1.5 N
Actuating stroke, minimum

4 mm
Actuating stroke, maximum

5 mm

Mechanical data - Dimensions

Mounting height

11 mm
Note (Mounting height)

Height in front of the front panel.
Diameter of touch surface

27 mm
Diameter of the front ring

44.5 mm
Mounting diameter

22.3 mm
Thickness, of the front panel, minimum

1 mm
Thickness of the front panel, maximum

6 mm
Spacing

50 x 50 mm

Ambient conditions

Degree of protection

IP67

IP69K
Ambient temperature

-25 ... +80 °C
Resistance to vibrations

5 g

Restistance to shock

<50 g (EN 60068-2-27)

Electrical data

Switching frequency of the command device, maximum

1,000 /h

Scope of delivery

Note (scope of delivery, number and type)

Mounting flange EFM is included in delivery

Video ID: Mr-Safety-N-Programm

(Vimeo)


EU Declaration of Conformity LOG_COM_lo1de01s
OriginalK.A. Schmersal GmbH & Co. KG
Möddinghofe 30
42279 Wuppertal
Germany
Internet: www.schmersal.com
Declaration:We hereby certify that the hereafter described components both in their basic design and construction conform to the applicable European Directives.
Name of the component:E, N and R program
Type:See ordering code
Description of the component:Command and signalling devices
optionally as illuminated signalling devices, Push, illuminated, palm buttons and switches, Selector switches and buttons, key selector switches and key selector buttons in conjunction with contact element EF and RF or light elements and voltage senders EL* and RL*
Relevant Directives:Low Voltage Directive2014/35/EU
 EMC-Directive *2014/30/EU
 RoHS-Directive2011/65/EU
Applied standards:EN 60947-5-1:2017 + AC:2020
Person authorised for the compilation of the technical documentation:Oliver Wacker
Möddinghofe 30
42279 Wuppertal
Place and date of issue:Wuppertal, April 4, 2025
 GRA_SIG_ksig-y24
 Authorised signature
Philip Schmersal
Managing Director
UK Declaration of Conformity LOG_COM_lo1de01s
Company:K.A. Schmersal GmbH & Co. KG
Möddinghofe 30
42279 Wuppertal
Germany
Internet: www.schmersal.com
Declaration:We hereby, under sole responsibility, certify that the hereafter described components both in their basic design and construction conform to the relevant statutory requirements, regulations and designated standards of the United Kingdom.
Name of the component:E, N and R program
Type:See ordering code
Description of the component:Command and signalling devices optionally as illuminated signalling devices, Push, illuminated, palm buttons and switches, Selector switches and buttons, key selector switches and key selector buttons in conjunction with contact element EF and RF or light elements and voltage senders EL* and RL*
Relevant legislation:Electrical Equipment (Safety) Regulations2016
 Electromagnetic Compatibility Regulations *2016
 The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations2012
Designated standards:EN 60947-5-1:2017 + AC:2020
UK-Importer / Person authorised for the compilation of the technical documentation:Schmersal UK Ltd.
Paul Kenney
Unit 1, Sparrowhawk Close
Enigma Business Park
Malvern, Worcestershire, WR14 1GL
Place and date of issue:Wuppertal, April 4, 2025
 GRA_SIG_ksig-y24
 Authorised signature
Philip Schmersal
Managing Director

Schmersal Ltd., Sparrowhawk Close, WR14 1GL Malvern

The details and data referred to have been carefully checked. Images may diverge from original. Further technical data can be found in the manual. Technical amendments and errors possible.
