EX-T. 441-11Y-243-1276-2
EX-T. 441-11Y-243-1276-2
Downloads
| Product type description: EX-(1) 441-11Y-(2)-(3)-1276-2 |
| (1) | |
| M. | Snap action |
| T. | Slow action (not for AF/S) |
| (2) | |
| UE | Slow action with overlapping contacts |
| (3) | |
| without | Lever selection, refer to catalogue |
- 2 cable entries M20
- Gold-plated contacts 1276-2 (0,3 µm)
- Metal enclosure
- 106 mm x 99 mm x 63 mm (basic component)
- Suitable for heavy duty
- Ex-Zone 21 and 22
Ordering data
| Product type description |
EX-T. 441-11Y-243-1276-2 |
| Article number (order number) |
103007625 |
| EAN (European Article Number) |
4030661445830 |
| eCl@ss number, version 12.0 |
27-27-06-01 |
| eCl@ss number, version 11.0 |
27-27-06-01 |
| eCl@ss number, version 9.0 |
27-27-06-01 |
| ETIM number, version 7.0 |
EC000030 |
| ETIM number, version 6.0 |
EC000030 |
Approvals - Standards
| Certificates |
ATEX IECEx INMETRO NEPSI CCC-EX |
Explosion protection
| Explosion protection: regulations |
EN IEC 60079-0 EN 60079-31 |
| Explosion protection zones |
21 |
| Explosion protection category |
2D |
| Explosion protection designation |
D II 2D Ex tb IIIC T90°C Db |
General data
| Standards |
EN IEC 60947-5-1 |
| Working principle |
mechanical |
| Housing material |
Grey cast iron, galvanised |
| Housing coating material |
painted |
| Gross weight |
1,897 g |
General data - Features
| Safety functions |
Yes |
| Number of normally closed (NC) |
1 |
| Number of normally open (NO) |
1 |
| Number of safety contacts |
1 |
Mechanical data
| Mechanical lifetime, minimum |
10,000,000 Operations |
| Contact opening |
2 x 6 mm |
| Actuation direction |
each time 60° right-hand side and left-hand side rotation |
Mechanical data - Connection technique
| Termination |
Screw terminals M20 x 1.5 |
| Cable section, minimum |
1.5 mm² |
| Cable section, maximum |
2.5 mm² |
Mechanical data - Dimensions
| Length of sensor |
63 mm |
| Width of sensor |
106 mm |
| Height of sensor |
99 mm |
| Diameter of Castor |
25 mm |
| Length of the lever |
25 mm |
| Width of the lever |
25 mm |
| Height of the lever |
141 mm |
Ambient conditions
| Degree of protection |
IP65 IP66 IP67 |
| Ambient temperature |
-20 ... +60 °C |
Ambient conditions - Insulation values
| Rated insulation voltage Ui |
400 V |
| Rated impulse withstand voltage Uimp |
6 kV |
Electrical data
| Thermal test current |
16 A |
| Utilisation category AC-15 |
400 VAC |
| Utilisation category AC-15 |
4 A |
| Switching element |
1 NO contact, 1 NC contacts |
| Switching principle |
Slow action |
| Maximale Schalthäufigkeit |
3,000 /h |
| Material of the contacts, electrical |
Gold-plated silver (AgNi 10 + Au 0,3µm) |
Language filter
Datasheet
Operating instructions and Declaration of conformity
IECEx certification
NEPSI Certificate
CCC certification
INMETRO certification
Download the latest version of Adobe Reader

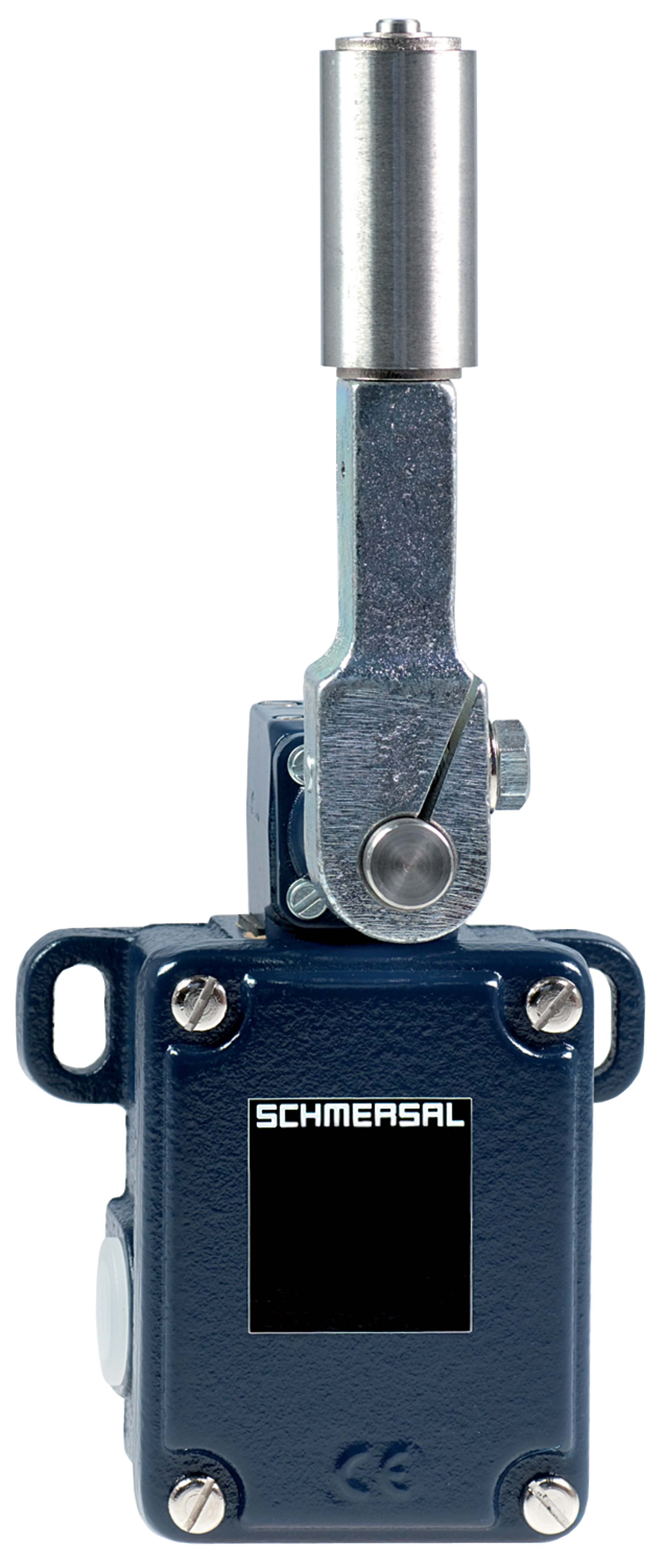

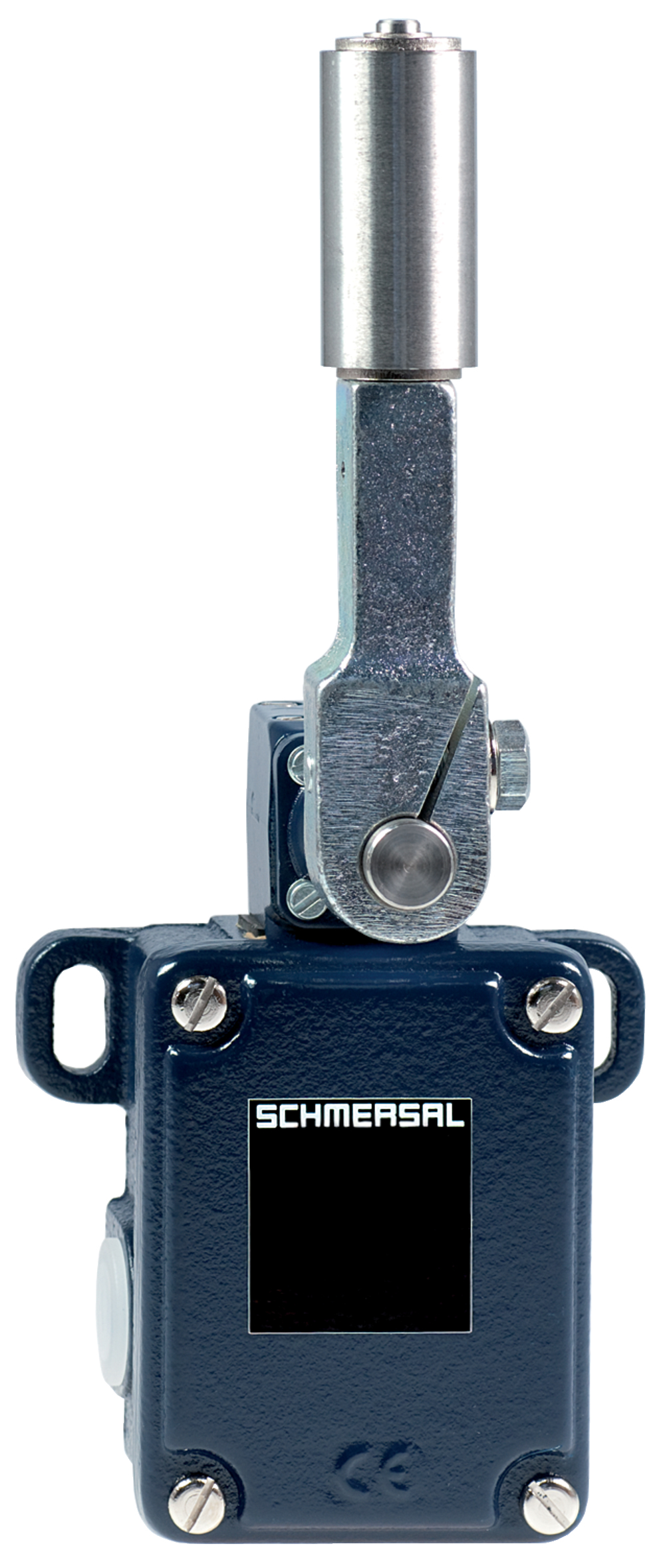

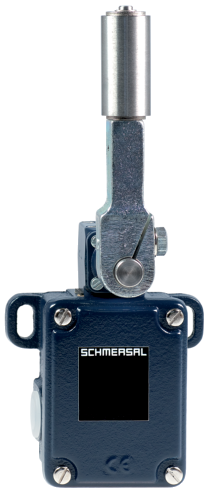

Product picture (catalogue individual photo)
ID: ktm44f04
| 794.2 kB | .jpg | 352.778 x 831.85 mm - 1000 x 2358 px - 72 dpi
| 124.5 kB | .png | 74.083 x 174.625 mm - 210 x 495 px - 72 dpi
| 24.9 kB | .png | 74.083 x 74.083 mm - 210 x 210 px - 72 dpi
| 8.8 MB | .png | 200 x 471.6 mm - 2000 x 4716 px - 254 dpi
| 28.9 kB | .jpg | 52.211000000000006 x 123.47200000000001 mm - 148 x 350 px - 72 dpi

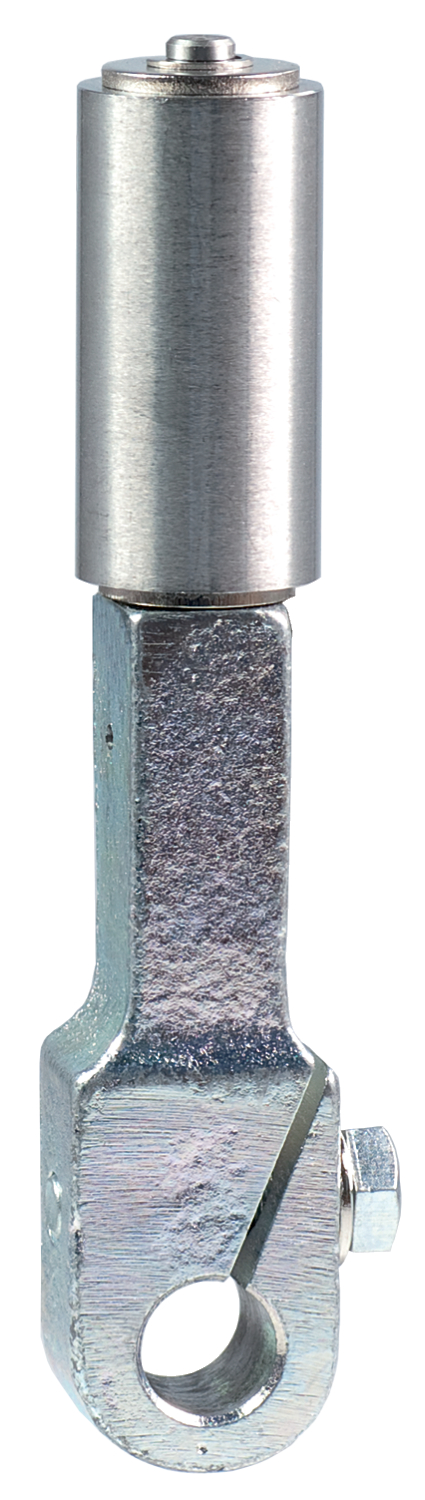

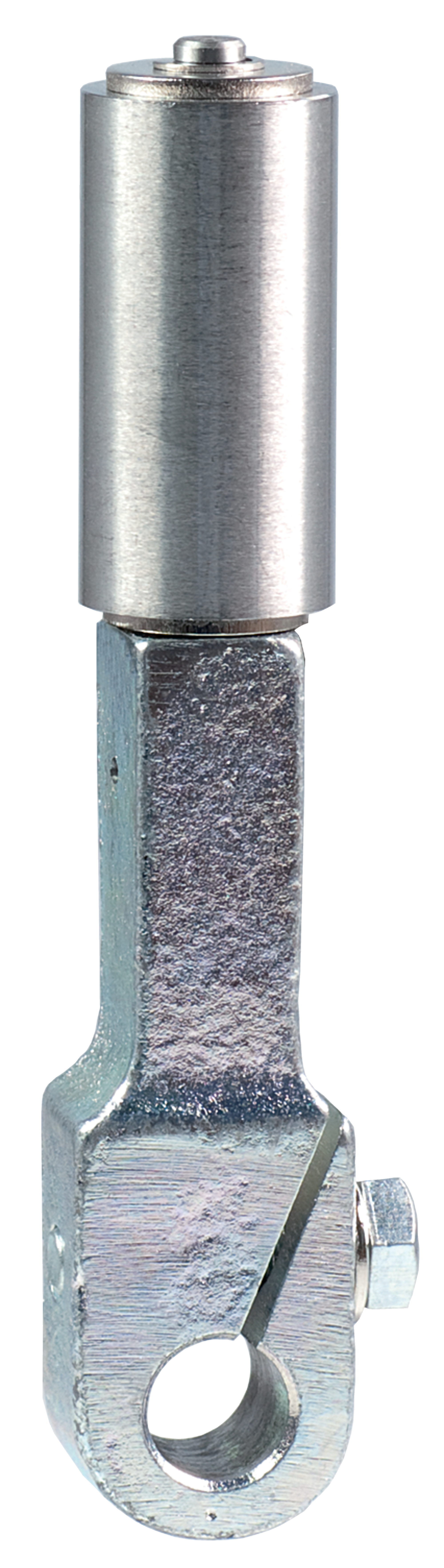

Product picture (catalogue individual photo)
ID: kbandf04
| 439.0 kB | .jpg | 149.931 x 529.167 mm - 425 x 1500 px - 72 dpi
| 195.8 kB | .png | 74.083 x 261.408 mm - 210 x 741 px - 72 dpi
| 27.1 kB | .jpg | 34.925000000000004 x 123.47200000000001 mm - 99 x 350 px - 72 dpi
| 23.2 kB | .png | 74.083 x 74.083 mm - 210 x 210 px - 72 dpi
| 17.6 MB | .png | 200 x 705.8000000000001 mm - 2000 x 7058 px - 254 dpi

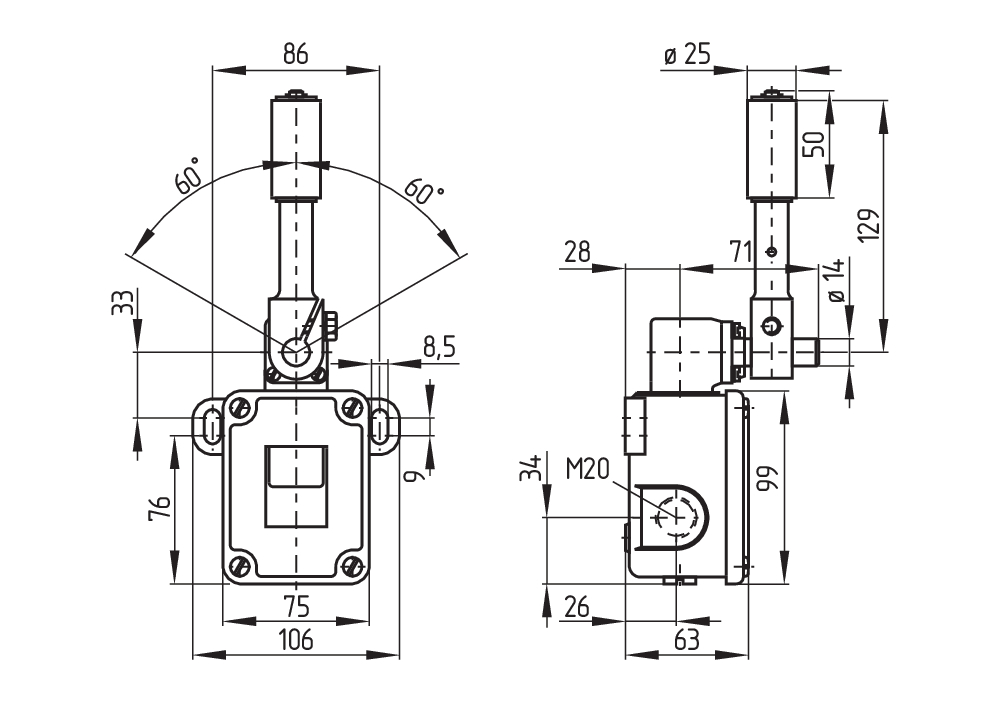

Dimensional drawing basic component

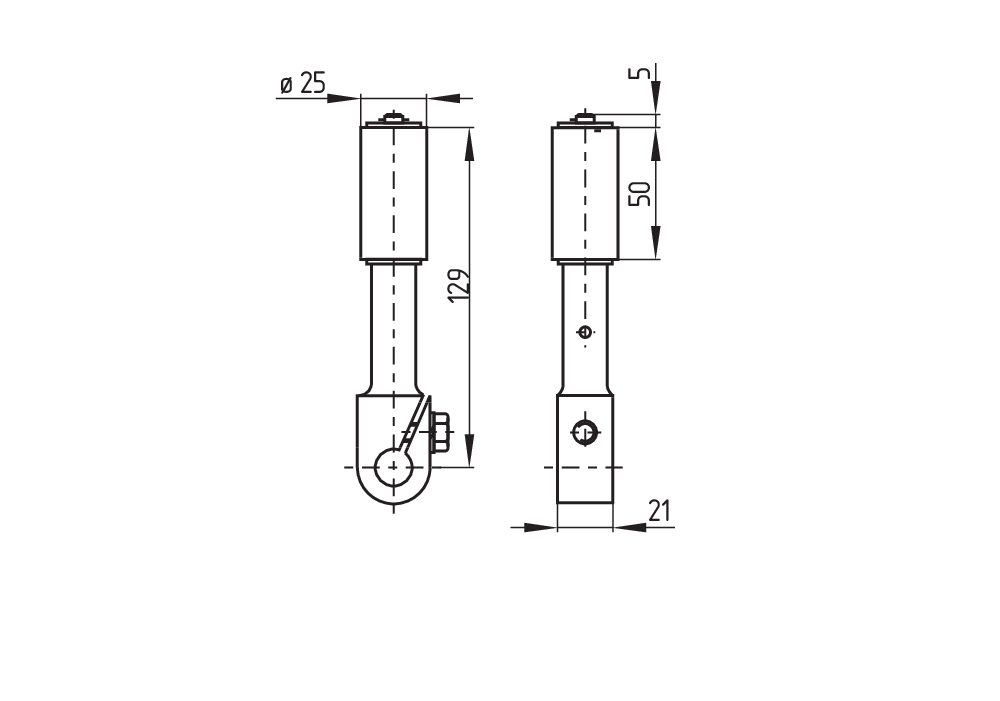

Dimensional drawing miscellaneous
Contact closed
Contact open
Setting range
Latching point
Positive opening path/angle| EU Declaration of Conformity |  |
| Original | K.A. Schmersal GmbH & Co. KG Möddinghofe 30 42279 Wuppertal Germany Internet: www.schmersal.com |
| Declaration: | We hereby certify that the hereafter described components both in their basic design and construction conform to the applicable European Directives. |
| Name of the component: | EX-T/M 441 |
| Type: | See ordering code |
| Marking: | D II 2D Ex tb IIIC T90°C Db |
| Description of the component: | Belt alignment switch / Slack-wire switch / Position switch |
| Relevant Directives: | Explosion Protection Directive (ATEX) | 2014/34/EU |
| RoHS-Directive | 2011/65/EU |
| Applied standards: | EN 60947-5-1:2017 + AC:2020 EN IEC 60079-0:2018 EN 60079-31:2014 |
| Notified body, which approved the full quality assurance system, referred to Appendix IV, 2014/34/EU: | TÜV Rheinland Industrie Service GmbH Am Grauen Stein, 51105 Köln ID n°: 0035 |
| Notified body for Type Examination: | DEKRA Testing and Certification GmbH Dinnendahlstraße 9 44809 Bochum ID n°: 0158 |
| EU-Type Examination Certificate: | BVS 08 ATEX E 157 |
| Person authorised for the compilation of the technical documentation: | Oliver Wacker Möddinghofe 30 42279 Wuppertal |
| Place and date of issue: | Wuppertal, November 24, 2022 |
 |
| Authorised signature Philip Schmersal Managing Director |
