EDAN6
EDAN6
Downloads
- Mounting hole 22.3 mm
- for standard potentiometer
- Protection class IP65
- Aluminium enlosure
Ordering data
| Product type description |
EDAN6 |
| Article number (order number) |
101019612 |
| EAN (European Article Number) |
4030661485188 |
| eCl@ss number, version 12.0 |
27-37-12-13 |
| eCl@ss number, version 11.0 |
27-37-12-13 |
| eCl@ss number, version 9.0 |
27-37-12-13 |
| ETIM number, version 7.0 |
EC000222 |
| ETIM number, version 6.0 |
EC000222 |
General data
| Versions |
Front plate mounting |
| Design |
Round |
| Installation conditions (mechanical) |
arbitrarily |
| Sealing type |
Membrane Lip gaskets Form seals |
| Material of the front ring |
Aluminium, anodised |
| Material of the toggle |
Plastic |
| Colour of the front ring |
Silver |
| Colour of the handle |
Black |
| Gross weight |
80 g |
General data - Features
| Fully insulated |
Yes |
Mechanical data
| Mounting |
mounting flange |
| Tightening torque of the screw |
0.6 Nm |
Mechanical data - Dimensions
| Mounting height |
28 mm |
| Note (Mounting height) |
Height in front of the front panel. |
| Mounting depth |
63 mm |
| Note (Mounting depth) |
Depth behind front panel without potentiometer |
| Diameter |
55 mm |
| Diameter of the front ring |
29.5 mm |
| Length of the handle |
28 mm |
| Mounting diameter |
22.3 mm |
| Bore of the potentiometer socket |
30 … 40 mm |
| Diameter of shaft, maximum |
6 mm |
| Thickness, of the front panel, minimum |
1 mm |
| Thickness of the front panel, maximum |
6 mm |
Ambient conditions
| Degree of protection |
IP65 |
Scope of delivery
| Scope of delivery |
The potentiometers are not included in delivery and must be ordered from the manufacturers concerned. |
Note
| Note (General) |
For mounting the potentiometer, a central-hole fastening and two different fastenings with three holes are provided. |

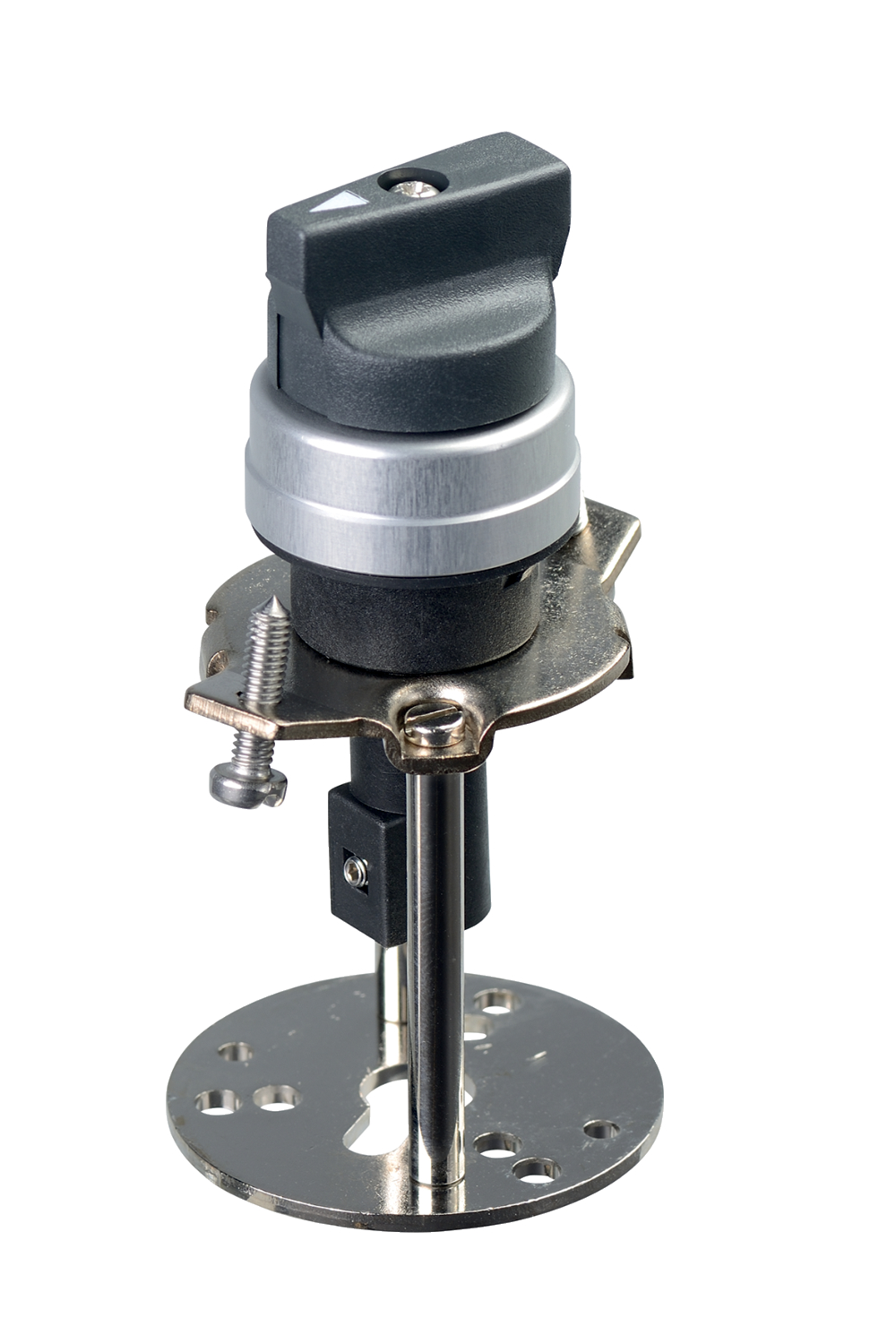

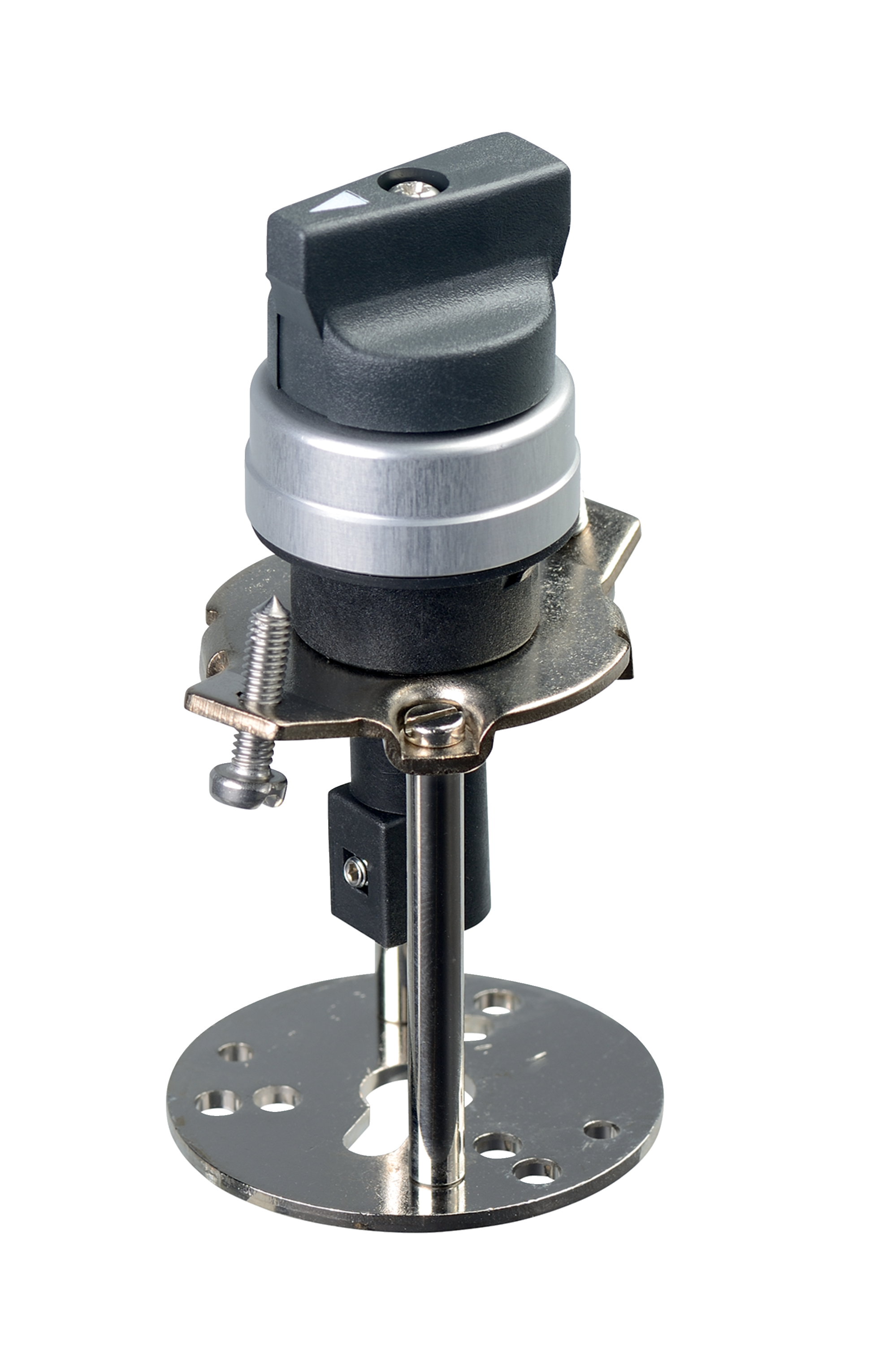

Product picture (catalogue individual photo)
ID: kedanf01
| 471.4 kB | .jpg | 352.778 x 529.167 mm - 1000 x 1500 px - 72 dpi
| 58.2 kB | .png | 74.083 x 111.125 mm - 210 x 315 px - 72 dpi
| 30.7 kB | .jpg | 82.197 x 123.47200000000001 mm - 233 x 350 px - 72 dpi
| 26.4 kB | .png | 74.083 x 74.083 mm - 210 x 210 px - 72 dpi
| 4.1 MB | .png | 169.249 x 254 mm - 1999 x 3000 px - 300 dpi
