AZM 170-B ZENTRIERHILFE
AZM 170-B ZENTRIERHILFE
Downloads
- for AZ 17 and AZM 170
Ordering data
| Product type description |
AZM 170-B ZENTRIERHILFE |
| Article number (order number) |
101208493 |
| EAN (European Article Number) |
4030661380674 |
| eCl@ss number, version 12.0 |
27-27-26-92 |
| eCl@ss number, version 11.0 |
27-27-26-92 |
| eCl@ss number, version 9.0 |
27-27-26-92 |
| ETIM number, version 7.0 |
EC002594 |
| ETIM number, version 6.0 |
EC002594 |
General data
| Material |
Stainless steel |
| Gross weight |
15 g |
Mechanical data - Dimensions
| Width |
30 mm |
| Height |
25 mm |
| Depth |
3 mm |

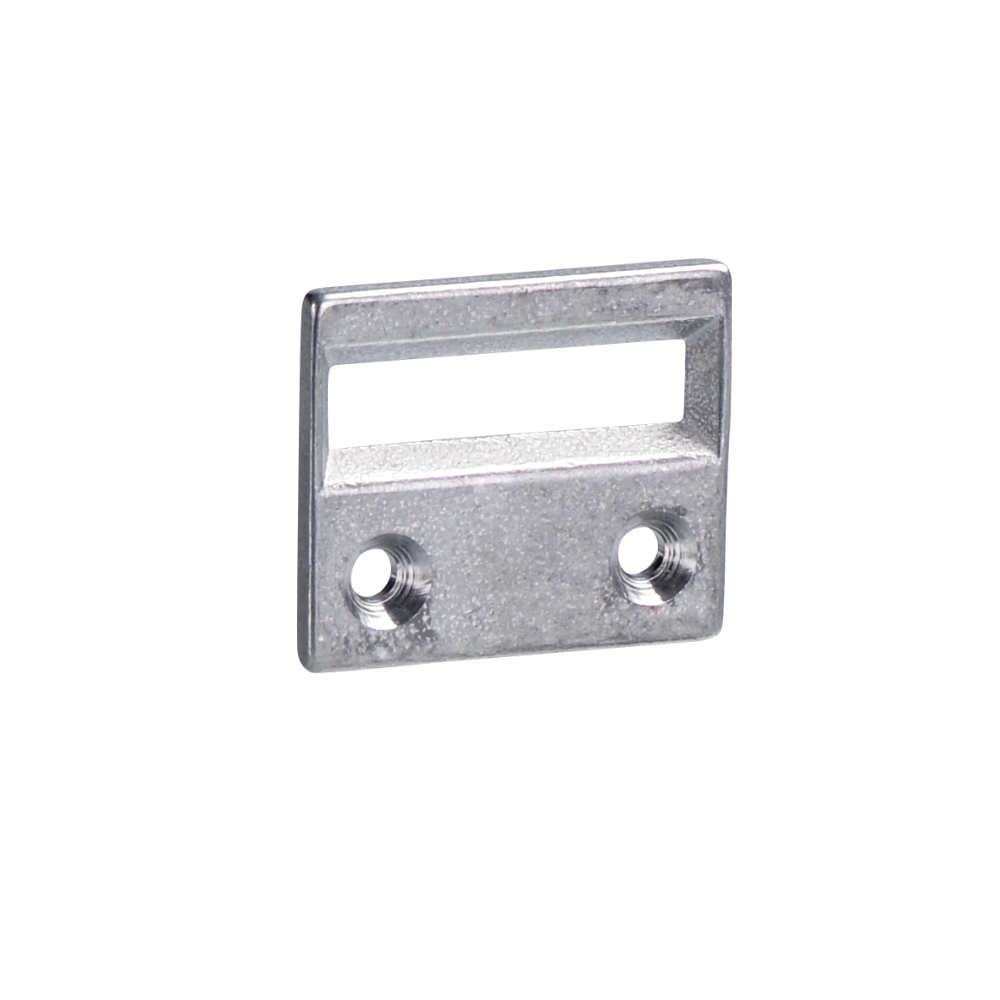

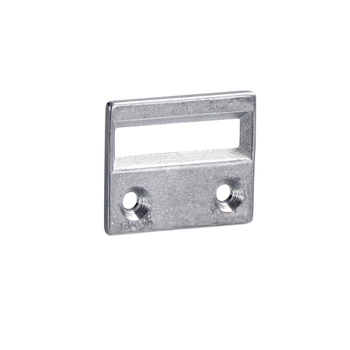

Product picture (catalogue individual photo)
ID: kzenaf01
| 160.9 kB | .jpg | 352.778 x 352.778 mm - 1000 x 1000 px - 72 dpi
| 20.2 kB | .png | 74.083 x 74.083 mm - 210 x 210 px - 72 dpi
| 21.8 kB | .jpg | 123.47200000000001 x 123.47200000000001 mm - 350 x 350 px - 72 dpi
| 18.5 kB | .png | 74.083 x 74.083 mm - 210 x 210 px - 72 dpi
| 1.3 MB | .png | 169.333 x 169.333 mm - 2000 x 2000 px - 300 dpi

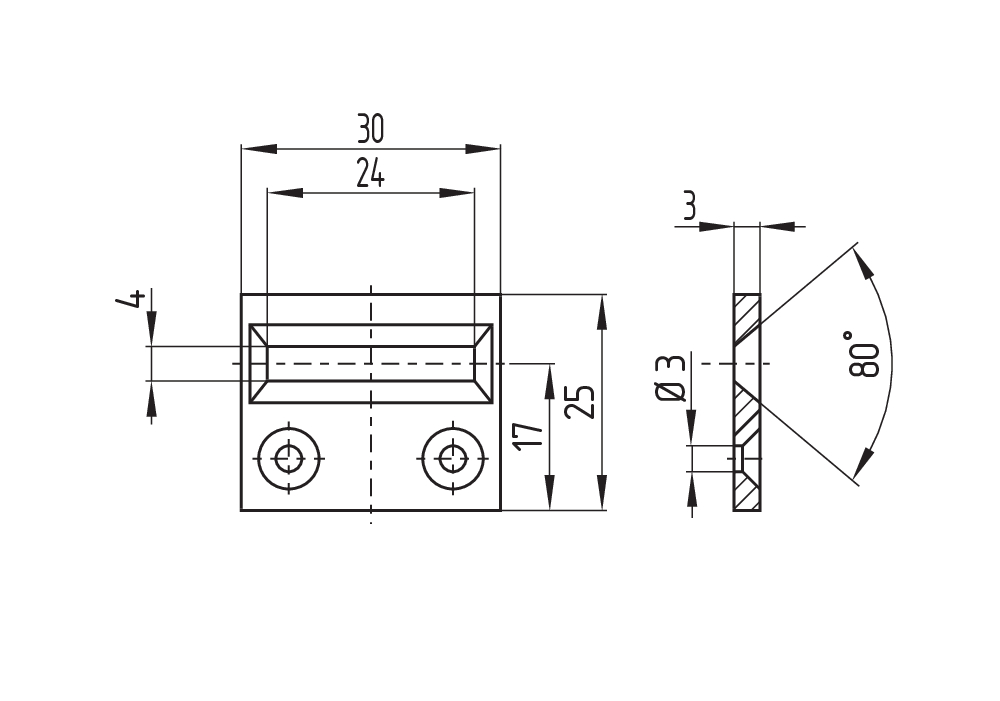

Dimensional drawing actuator

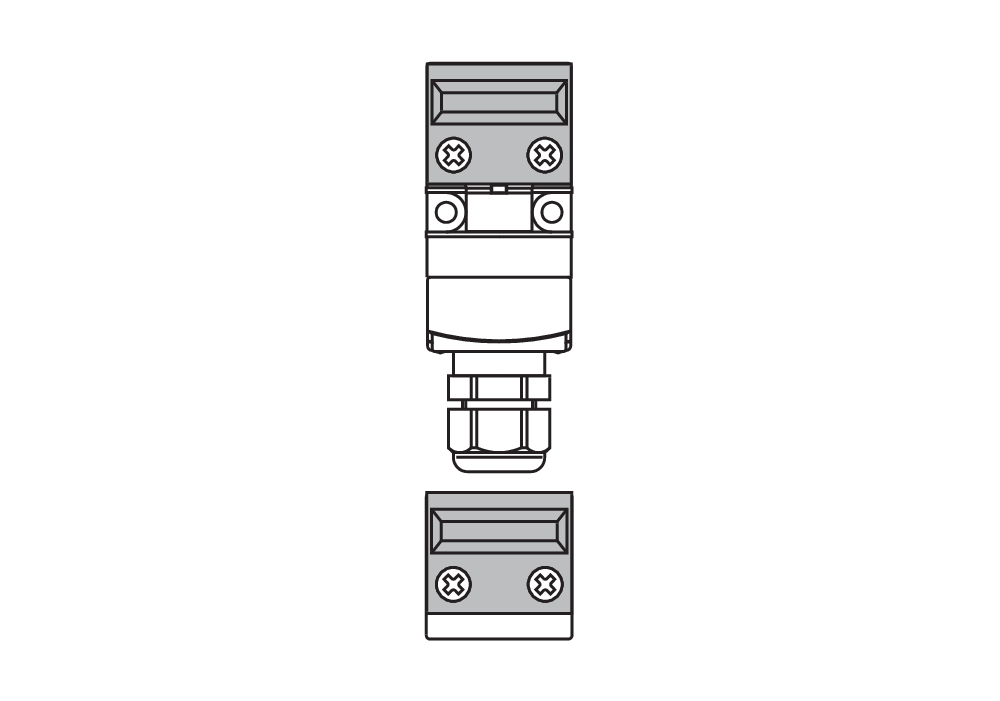

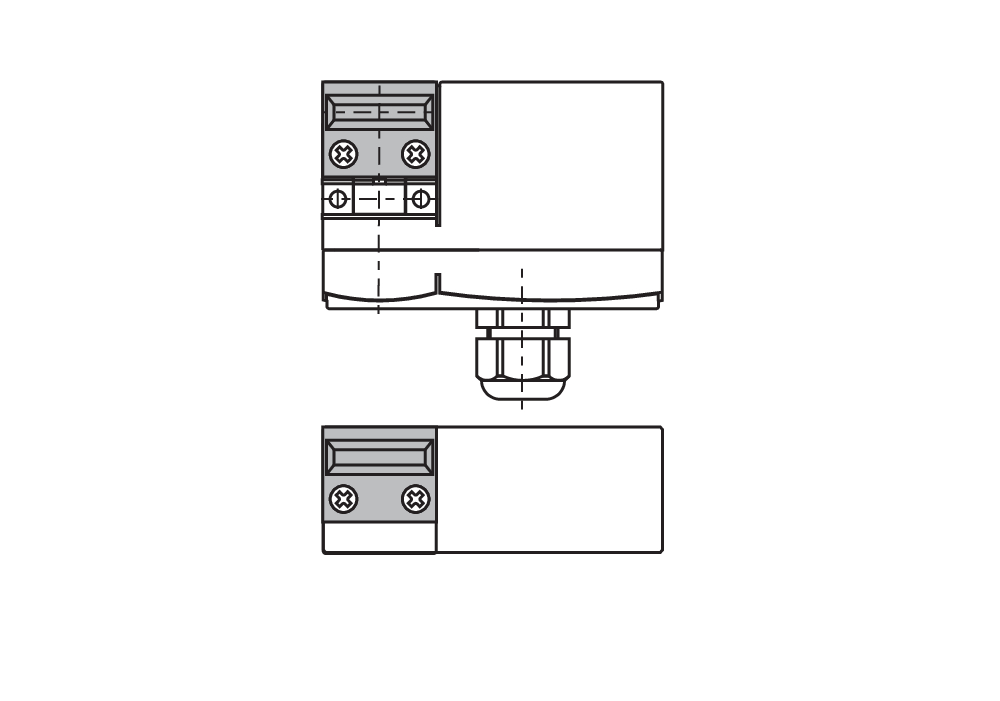

Dimensional drawing miscellaneous
Schmersal Ltd., Sparrowhawk Close, WR14 1GL Malvern
The details and data referred to have been carefully checked. Images may diverge from original. Further technical data can be found in the manual. Technical amendments and errors possible.
Generated at: 15/04/2026, 06:22
